Computer Components:

120mm Noctua NF-F12 - Focused Flow System

Sorry, this product is not currently available to order

Here are some other products you might consider...

120mm Noctua NF-F12 - Focused Flow System

4-pin PWM, 1500/1200rpm Max

Customer rating

Click to share your rating 9 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

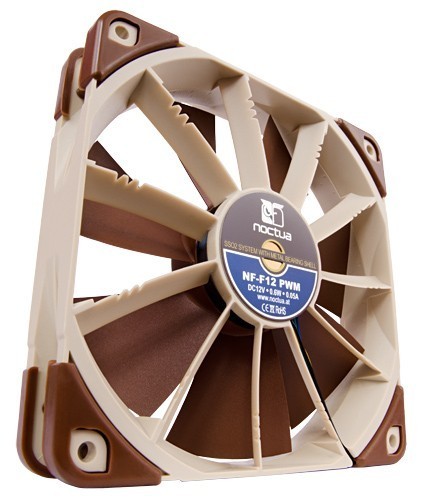

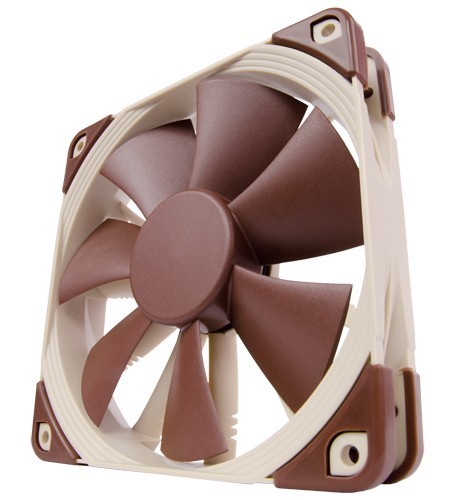

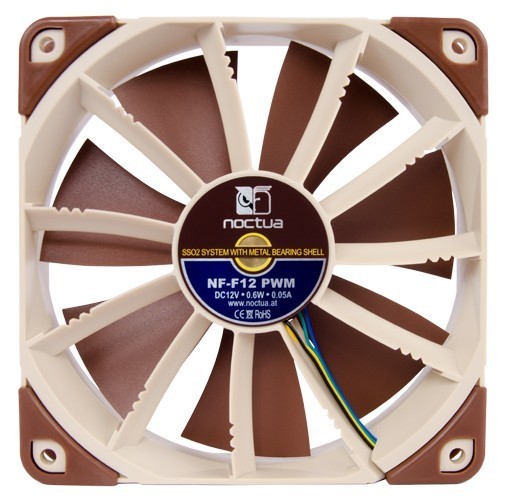

120mm Noctua NF-F12 – Focused Flow System

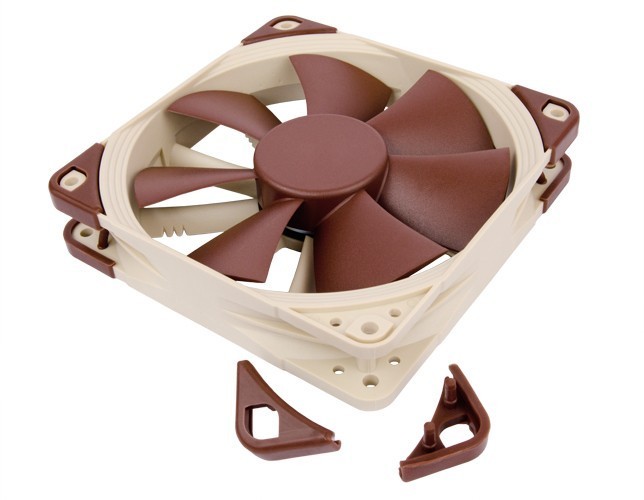

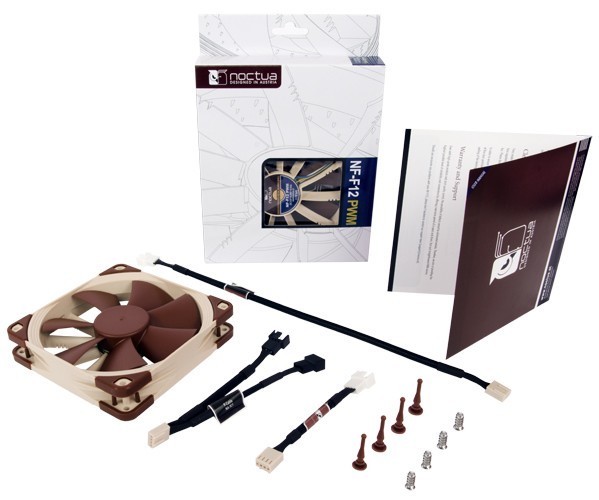

Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.

Features

  • Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
  • The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
  • Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.
  • Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Specifications:

  • Size: 120×120×25 mm
  • Mounting hole spacing: 105×105 mm
  • Connector: 4-Pin PWM
  • Bearing: SSO2
  • Blade Geometry: Heptaperf
  • Frame Technology: Focused Flow
  • Rotational Speed (+/- 10%): 1500 RPM
  • Rotational Speed with L.N.A. (+/- 10%): 1200 RPM
  • Min. Rotational Speed (PWM, +/-20%): 300 RPM
  • Airflow: 93,4 m³/h
  • Airflow with L.N.A.: 74,3 m³/h
  • Acoustical Noise: 22,4 dB(A)
  • Acoustical Noise with L.N.A.: 18,6 dB(A)
  • Static Pressure: 2,61 mm H₂O
  • Static Pressure with L.N.A.: 1,83 mm H₂O
  • Max. Input Power: 0,6 W
  • Max. Input Current: 0,05 A
  • Voltage: 12 V
  • MTTF >: 150.000 h
Release date Australia
March 17th, 2017
Manufacturer code:
NF-F12-PWM
Brand
Manufacturer
Box Dimensions (mm)
126x180x84
UPC
842431014009
Product ID
26749272
