PC Parts & Components:

120mm ThermalTake Riing 12 Radiator Fan

Sorry, this product is not currently available to order

Here are some other products you might consider...

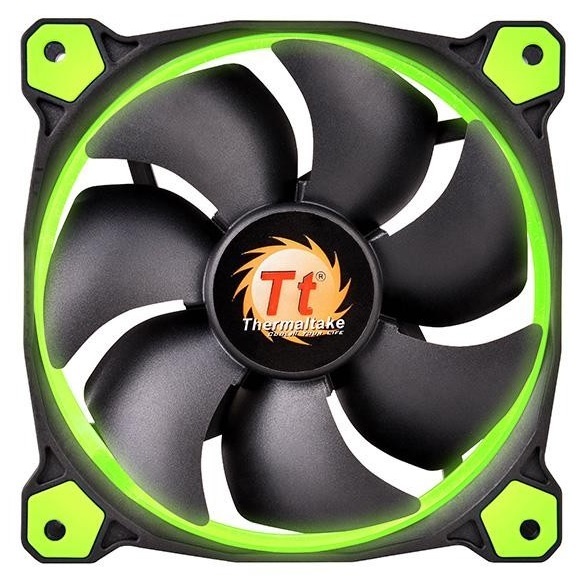

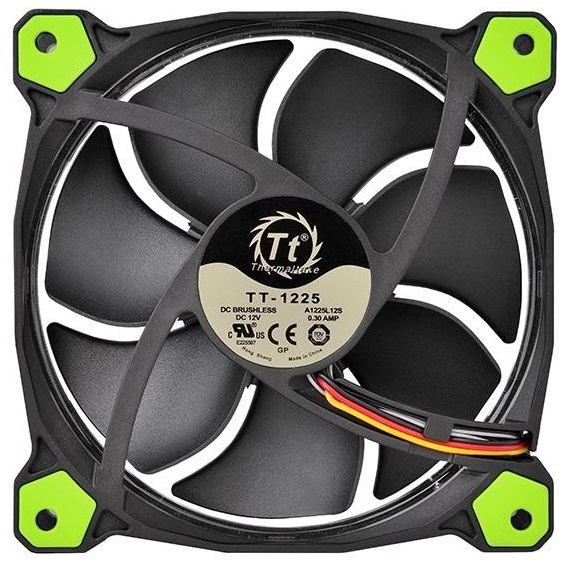

120mm ThermalTake Riing 12 Radiator Fan

high static pressure, green LED, anti-vibration

Customer rating

Click to share your rating 4 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

Thermaltake has released the new Riing 12 LED Series, a 120mm fan fitted to enhance static pressure that produces impressive cooling performance with an optimised fan blade. Hydraulic bearings for silent operation guarantee ultra-low noise. In addition, an anti-vibration mounting system strengthens the stability during operation.

The patented LED Ring maintains colour and brightness uniformity. The four-coloured LED ring (in blue, red, white, and green) adds style to the chassis.

  • Halo' LED lighting creates a unique glow to customise your case
  • Concentrated Compression Blades – Custom designed for high-static pressure
  • ‘Wind Blocker’ Frame directs airflow towards middle of blade, creates perfect balance of power and sound
  • Hydraulic Bearing with Low-Noise Design – as low as 18.7dBA
  • Anti-vibration Mounting System

Features..
Tt LCS Certified
“Tt LCS Certified" is the hallmark that ensures first-class performance from the best features and fitment. A certification exclusive to Thermaltake, it sets the benchmark for all true LCS chassis and is applied only to products that meet our stringent design standards for delivering what hardcore enthusiasts demand. The Tt LCS certification is a way for Thermaltake to designate to all power users the chassis which have been tested for best compatibility with extreme liquid cooling configurations.

Concentrated Compression Blade
Custom designed for high-static pressure requirements of demanding applications such as radiators, the Concentrated Compression Blade (CCB) is engineered to focus the inner weaker circle of air outwards, allowing the outer section to pressurize and compress the air.

Wind Blocker Frame
To achieve maximum static pressure in all applications, the wind blocker frame is designed to work with the Concentrated Compression Blade's (CCB) pressure mechanism by directing airflow towards the middle section of the blade, thereby creating a compression effect and blocking any pressure from escaping. This reduces the blade's noise and vibration, creating a perfect balance between power and sound.

Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance which lowers operating noise and improves efficiency. The seal cap prevents leakage of the lubricant, and improves the life span of the unit. The LNC (Low-Noise Cable) can reduce the noise level by 24% from 24.6dBA to 18.7dBA.

Anti-vibration Mounting System

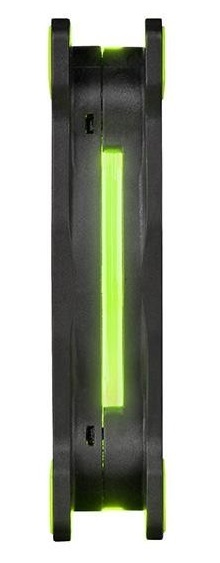

In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.The LED lighting effect is visible from all sides and angles.

Specs..
P/N: CL-F038-PL12BU-A
Fan Dimension: 120 × 120 × 25 mm
Started Voltage: 9.0 V
Rated Voltage: 9.0 V
Rated Current: 0.2 A
Power Input: 2.4 W
Fan Speed:-
• 1500 R.P.M
• 1000 R.P.M (with LNC)
Max. Air Pressure: 2.01 mm-H2O
Max. Air Flow: 40.6 CFM
Noise:-
• 24.6 dB-A
• 18.7 dB-A (with LNC)
Bearing Type: Hydraulic Bearing
Life Expectation: 40,000 hrs,25 C­elsius
Connector: 3 PIN + LNC (Low-Noise Cable)
Weight: 158.8 g

Release date Australia
May 29th, 2015
Brand
Manufacturer
Series
Box Dimensions (mm)
125x175x30
UPC
4717964400727
Product ID
23018446
