Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W – 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40℃, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

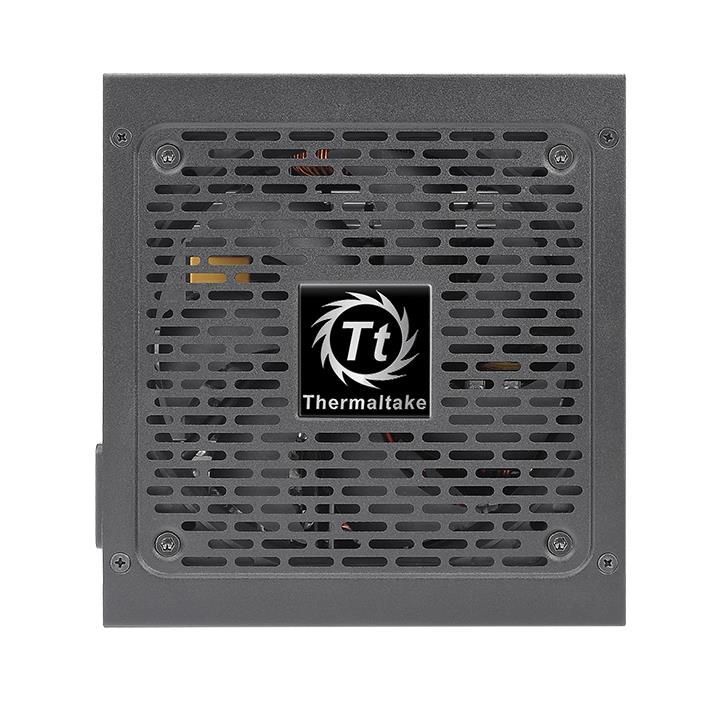

Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help
guarantee superior cooling performance and near silent operation.
Low Ripple Noise
All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V
from 0% to 100% load to ensure a stable operation and keep your
performance-critical components, such as high-end graphics cards, to function
reliably for longer.

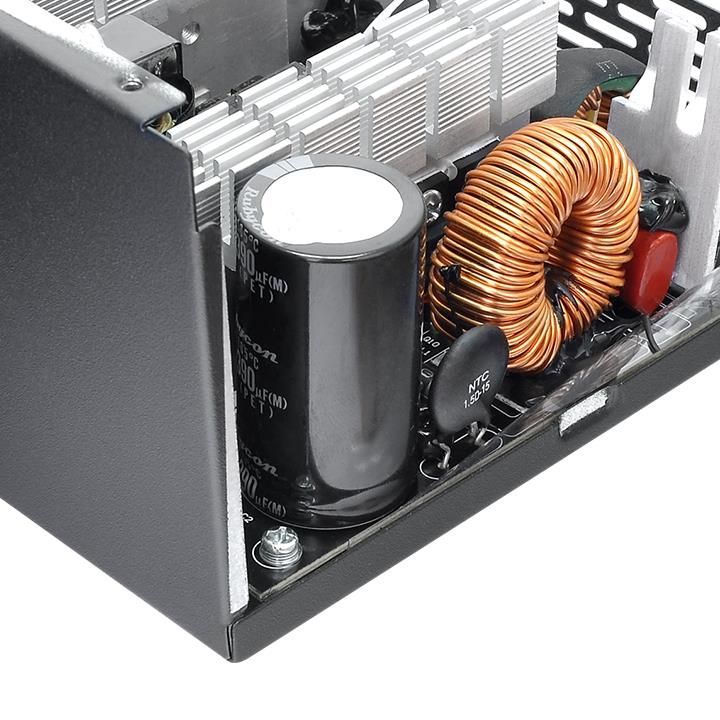

Premium Japanese Main Capacitor
Providing great durability as well as offering the highest stability, while
remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC
components.
Multiple Connectors
Soft black cables come with sleeve cabling, designed to make cable installation
an easy task while fully powering the system at optimal voltages
80 PLUS Gold Certified and Intel C6/C7 States Ready
Smart BX1 series saves energy through its high energy efficiency up to 88% and
is certified to 80 PLUS® Bronze. It has been optimized to work with all
generations of Intel’s processors to achieve maximum energy saving.
Specifications
watts 650W
RGB Fan No
Form Factor ATX
Model SPD-650AH2NKB
Type ATX 12V v2.3 and EPS v2.92
Max. Output Capacity 650W
Peak Output Capacity 780W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100–500 msec
Hold Up Time > 16msec at 70% of full load
Input Current 12A max.
Input Frequency Range 50Hz – 60Hz
Input Voltage 100V – 240V~
Operating Temperature 5°C to + 40°C
Operating Humidity 20% to 85%, non-condensing
Storage Temperature –40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 12cm Hydraulic bearing fan
Efficiency Meet 80 PLUS®Bronze at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/CB/TUV/ UL/ FCC/ BSMI
PCI-E 6+2pin 2
