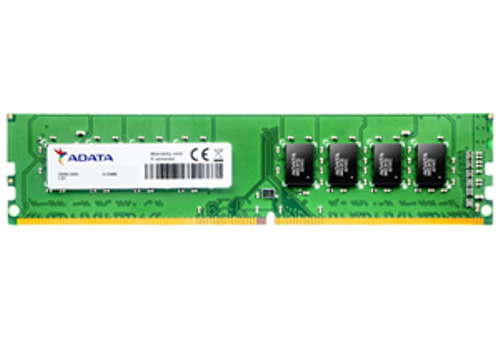

Adata: 4GB DDR4 2400 DIMM 512MX16
ADATA Premier DDR4 2400 unbuffered U-DIMM memory is the latest upgrade solution that supports Intel's newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 19.2GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.
FEATURES
- DDR4–2400
- 4GB DIMM
- Lifetime Warranty
SPECIFICATIONS
- Suitable For: Desktop PC
- Module Type: U-DIMM
- Form Factor: Standard 1.23" Height
- Memory Type: DDR4
- Standard: JEDEC
- Interface: 288-pin
- Density: 4GB
- Speed: 2400MHz
- CAS Latency: CL 17–17–17
- Power Supply: VDD and VDDQ = 1.2V ±0.06V
- DRAM Activation Power Supply: VPP= 2.5V (+0.25V / –0.125V)
- DRAM Spec/VCC: DDR4 STD 1.2V
- Operating Temperature: 0°C to 85°C
