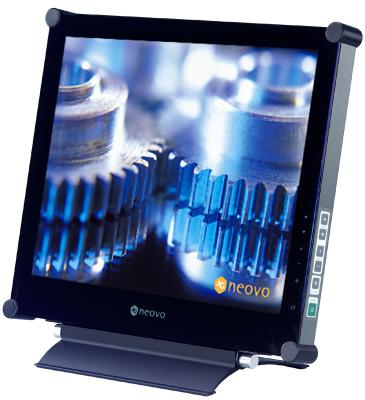

AG Neovo has earned a worldwide reputation as a provider of innovative, high-quality LCD displays for the corporate, vertical and consumer markets.
NeoV Optical Filter
The NeoV Optical Filter is a specially formulated, hardened optical glass that is built on top of the internal LCD panel to dramatically enhance image quality and protect the screen from damage.
Designed for Performance
The proprietary multi-coated optic filter delivers vibrant rich colors and crystal clear image definition for ultimate clarity and reduced eye fatigue.
Built to Last
Protect your investment. A conventional LCD panel is soft and can be easily damaged. The hardened glass exterior of the NeoV Crystal Optic Filter is highly durable and scratch resistant. It protects the delicate internal LCD panel from physical damage common with conventional displays.
Panel Size 7.0" (432mm)
Brightness 400cd/m2 (Typical)
Contrast Ratio 450:1 (Typical)
NeoV Technology Yes
Viewing Angle (H/V)140o / 140o (Typical)
Display Resolution SXGA1280 x 1024
Input Signal Analog, Digital, S-Video*, CVBS*
Response Time 16ms
Net Dimension 408 x 398 x 175mm (16.1" x 15.7" x 6.9")
Net Weight 6.8Kg (13.9lbs)
Type (CRT/TFT): TFT
Screen Size (inches"): 17"
Pitch Size: Pixel Pitch: 0.264 x 0.264 mm
Input: 15-Pin D-Sub
4-Pin Mini Din S-Video
Resolution: SXGA 1280 x 1024
Viewing Angle (Degree's): Horizontal: 170º
Contrast Ratio: 450:1
Response Time (ms): 16msec
Brightness: 250 cd/m2
User Controls: No Information
Power Usage (Watts): <48 W (On)
<5 W (Stand-by)
<5 W (Off)
Dimensions (WxHxDmm): 408 x 497 x 175 mm
