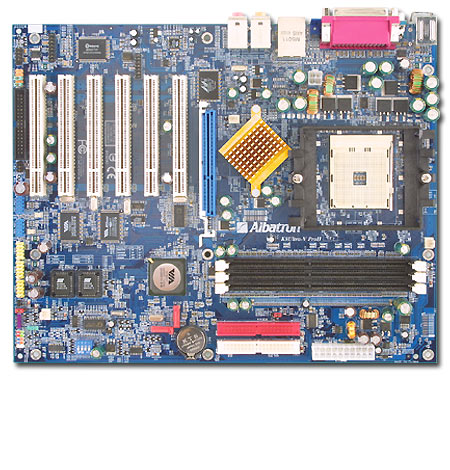

ALBATRON MOTHERBOARD K8ULTRA-V PROII ATHLON64 FIREWIRE+SATA+GBIT LAN+7.1SND

Sorry, this product is no longer available to order

Here are some other products you might consider...

ALBATRON MOTHERBOARD K8ULTRA-V PROII ATHLON64 FIREWIRE+SATA+GBIT LAN+7.1SND

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is no longer available to order

Description

Product Features:

- AMD Athlon64 Processor
- Socket 754 with FSB 800/1000+(by overclocking) MHz
- 3 DDR200/266/333/400 Memory Sockets
- Built-in VIA Envy 24PT with 8 channel Audio Support
(Bundle SPDIF2 Card Optional)
- Marvell 1Gbits LAN
- 2 Serial ATA150 Channels, Serial ATA RAID 0,1
- 2 IEEE1394 Ports
- 2 ATA133 Channels, up to 4 ATA 133 IDE Devices
- 8 USB 2.0/1.1 Ports (6 ports by optional cable)
- BIOS Mirror
- Voice Genie

Product Specifications:

Processor

Socket 754 AMD Athlon64 Processor

FSB

800/1000+(by overclocking) MHz

Chipset

North Bridge : VIA K8T800 Pro
South Bridge : VIA VT8237
LAN Chip : Marvell MV8001
IEEE1394 Chip : VIA VT6307
Audio Chip : VIA VT1720 Evny 24PT
I/O Chip: Winbond Smart I/O W83697HF

Memory

3 * DDR Sockets:
DDR200/266/333/400 NON-ECC DDR SDRAM up to 3GB

Expansion Slots

1 x AGP(3.0) 8X slot (1.5V only)
6 x PCI slots (PCI 2.2 compliant)

IDE / SATA Connectors

2 ATA133 Channels, up to 4 ATA 133 IDE devices

Onboard I/O Connectors

1 x Floppy Connector
3 x USB 2.0/1.1 header (6 ports by optional cable)
2 x IEEE1394 header (2 ports IEEE1394 cable optional)
1 x S/PDIF in/out header (S/PDIF in/out cable optional)
1 x CPU fan header ( 1 fan rotation detection function )
2 x System fan headers ( 2 fan rotation detection function )
1 x 10 pin system panel header (Intel spec)
1 x 3 pin Power LED header
1 x Front audio header (Intel spec)
1 x IrDA header
1 x Case Open detection header
2 x 5 pin Com port header
2 x 8 pin Game Port header

I/O via Back Panel

PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,1 x Com(serial), 1 x Parallel, 1x Line-in/Line-out(Speaker Out)/MIC/SUR_CEN/SUR/R:WOF,L:CEN

Power

20-pin ATX power connector, 4-pin ATX 12V power connector

BIOS Feature

4Mb Flash EEPROM
Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer

Hardware Monitoring

3 FAN sensors, CPU/System voltages and temperature monitoring

Special Feature

Zero Jumper Design
BIOS Mirror [TM] Protect BIOS by creating an original mirror image of itself
Voice Genie[TM] Voice Troubleshooting system ( four-Language )
Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking.
Watch Dog Timer (auto-reset system when it can not handle overclock configurations)
Special design for CPU Over Temperature Protection.( OTP )

Certifications

FCC, CE, BSMI

Form Factor

ATX ( 305*244 mm )
Release date Australia
August 8th, 2005
Manufacturer code:
K8ULTRA-V PRO 2
Manufacturer Code
K8ULTRA-V PRO 2
Brand
Manufacturer
Product ID
1472964
