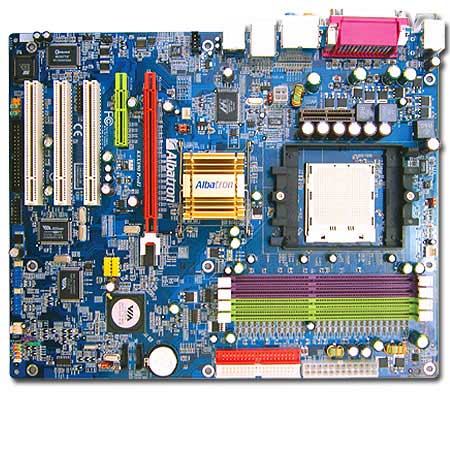

Product Overview:
- CPU: AMD K8
- Chipset: VIA K8T890/8237R
- Socket: 939
- Form Factor: ATX ( 305*244 mm )
- FSB: 800/1000+ MHz
- Memory: 4*DDR266/333/400 (Dual Channel DDR400)
- Int. GFX: N
- AGP: N
- PCI: 1*PCI-Ex16, 1*PCI-Ex4 ,3*PCI
- USB: 8 USB 2.0/1.1 Ports (4 ports by optional cable)
- LAN: Marvell 1Gbits LAN
- Sound: VIA Envy 24PT with 8 channel Audio Support
- South Bridge Speed: ATA133
- RAID: Serial ATA RAID 0,1
- Serial ATA: 2 Serial ATA150 Channels
- IEEE 1394: 2 IEEE1394 Ports
- BIOS Mirror: N
- Voice Genies: N
Product Specifications:
- AMD Athlon64 / Athlon64 FX Processor
- Socket 939 with FSB 800/1000+ MHz
- 4 DDR266/333/400 Memory Sockets(Dual Channel)
- Built-in VIA Envy 24PT with 8 channel Audio Support
- Marvell 1Gbits LAN
- 1*PCI Express x 16, 1*PCI Express x 4, 3*PCI Slots
- mPOWER Slot*1(Bundle mPOWER Card)
- 2 Serial ATA150 Channels, Serial ATA RAID 0,1
- 2 IEEE1394 Ports
- 2 ATA133 Channels, up to 4 ATA 133 IDE Devices
- 8 USB 2.0/1.1 Ports (4 ports by optional cable)
Processor: Socket 939 AMD Athlon 64 / Athlon 64 FX Processor
FSB: 800/1000+ MHz
Chipset
- North Bridge : VIA K8T890
- South Bridge : VIA VT8237R
- LAN Chip : Marvell MV8001
- IEEE1394 Chip : VIA VT6307
- Audio Chip : VIA VT1720 Evny 24PT
- I/O Chip: Winbond Smart I/O W83687THF
Memory
- 4 * DDR Sockets:
- DDR 266/333/400 NON-ECC DDR SDRAM up to 4GB ( Dual Channel )
Expansion Slots
- 1 x PCI Express x 16
- 1 x PCI Express x 4
- 3 x PCI slots (PCI 2.3 compliant)
- 1 x mPOWER Slot
IDE Connectors: 2 ATA133 Channels, up to 4 ATA 133 IDE devices
Onboard I/O Connectors
- 1 x Floppy Connector
- 2 x USB 2.0/1.1 header (4 ports by optional cable)
- 2 x IEEE1394 header (2 ports IEEE1394 cable optional)
- 1 x CD_IN header
- 1 x S/PDIF in/out header (S/PDIF in/out cable optional)
- 1 x CPU fan header ( 1 fan rotation detection function )
- 2 x System fan headers ( 2 fan rotation detection function )
- 2x 5 pin system panel header (Intel spec)
- 1 x 3 pin Power LED header
- 1 x Front audio header (Intel spec)
- 1 x IrDA header
I/O via Back Panel
- PS/2 keyboard/mouse
- 4 x USB(2.0/1.1)
- RJ45,2 x Com(serial)
- 1 x Parallel
- 1x Line-in/Line-out(Speaker Out)/MIC/SUR_CEN/SUR/R:WOF,L:CEN
Power: 20-pin ATX power connector, 4-pin ATX 12V power connector
BIOS Feature
- 4Mb Flash EEPROM
- Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard/mouse, Wake on LAN/RTC Timer
Hardware Monitoring: 3 FAN sensors, CPU/System voltages and temperature monitoring
Special Feature
- Zero Jumper Design
- Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking.
- Watch Dog Timer (auto-reset system when it can not handle overclock configurations)
- Special design for CPU Over Temperature Protection.(OTP)
Certifications: FCC, CE, BSMI
Form Factor: ATX ( 305*244 mm )
