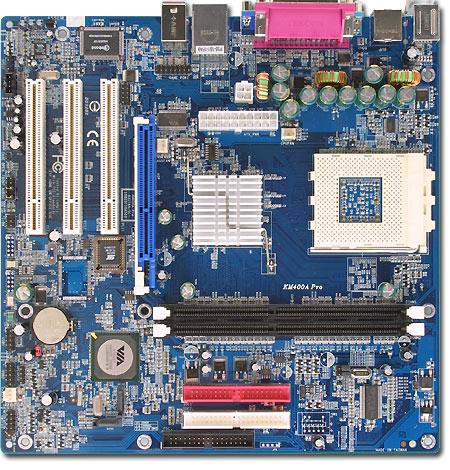

Albatron Motherboard KM400A PRO Socket A VGA+SND+LAN

Sorry, this product is no longer available to order

Here are some other products you might consider...

Albatron Motherboard KM400A PRO Socket A VGA+SND+LAN

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!
Unavailable
Sorry, this product is not currently available to order

Description

Overview:

CPU: AMD K7
Chipset: VIA KM400A/8237
Socket: 462
Form Factor: ATX (240mm x 240mm)
FSB / Hyper Transport: 200/266/333/400 MHz
Memory: 2*DDR266/333/400
Int. GFX: Y
AGP: 8X
PCI-E / PCI: 3
USB: 8 USB 2.0/1.1 Ports (4 ports by optional cable)
LAN: VIA 10/100 Ethernet LAN
Sound: 6 channel AC 97 Audio
South Bridge Speed: ATA 133
RAID: N
Serial ATA: N
IEEE 1394: N
BIOS Mirror: N
Voice Genies: N

Features:

AMD Athlon/AthlonXP/ AthlonXP Barton/DuronProcessor
Socket 462 with FSB 200/266/333/400MHz
2 DDR266/333/400 Memory Sockets
AGP 8X , 6 channel AC 97 Audio
VIA 10/100 Ethernet LAN
2 Serial ATA150 Channels, Serial ATA RAID 0,1
2 ATA133 Channels, up to 4 ATA 133 IDE Devices
8 USB 2.0/1.1 Ports (4 ports by optional cable)
Integrated UnichromeGraphics Engine ( Share memory maximum 64MB )

Specifications:

Processor
AMD Athlon/AthlonXP/ AthlonXP Barton/DuronProcessor

FSB / Transport
200/266/333/400 MHz

Chipset
North Bridge : VIA KM400
South Bridge : VIA 8237
Audio Codec : VIA VT1616
LAN Chip : VIA VT6103
I/O Chip : Winbond W83697HF

Memory
2 * DDR sockets
DDR400/333/266 NON-ECC DDR SDRAM up to 2GB

Expansion Slots
1 x AGP(3.0) 8X Slot ( 1.5V Only )
3 x PCI slots (PCI 2.2 compliant)

IDE / SATA Connectors
2 ATA133 channels, up to 4 ATA 133 IDE devices

Onboard I/O Connectors
1 x Floppy Connector
2 x USB 2.0/1.1 header (4 ports USB cable optional)
1 x S/PDIF out header (S/PDIF out cable optional)
1 x CPU fan header with fan rotation detection function
1 x System fan headers with fan rotation detection function
1 x10 pin system panel header (Intel spec)
1 x3 Power LED header
1 x Front audio header (Intel spec)
1 x Case Open detection header
2 x 5 pin Com port header
2 x 8 pin Game Port header

I/O via Back Panel
PS/2 keyboard/mouse, 4 x USB(2.0/1.1), RJ45, 1 x Com(serial), 1 x Parallel, 1x Line-in/Line-out/MIC

Power
20-pin ATX power connector, 4-pin ATX 12V power connector

BIOS Feature
2Mb Flash EEPROM
Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard, Wake on LAN/RTC Timer

Hardware Monitoring
2 FAN sensors, CPU/System voltages and temperature monitoring

Special Feature
Adjustable CPU frequency by 1 MHz increment for overclocking
Watch Dog Timer (auto-reset system when it can not handle overclock configurations)
Special design for CPU Over Temperature Protection.( OTP )

Certifications
FCC, CE, BSMI

Form Factor
ATX (240mm x 240mm)
Release date Australia
November 16th, 2005
Manufacturer code:
KM400A PRO
Manufacturer Code
KM400A PRO
Brand
Manufacturer
Product ID
1477166
