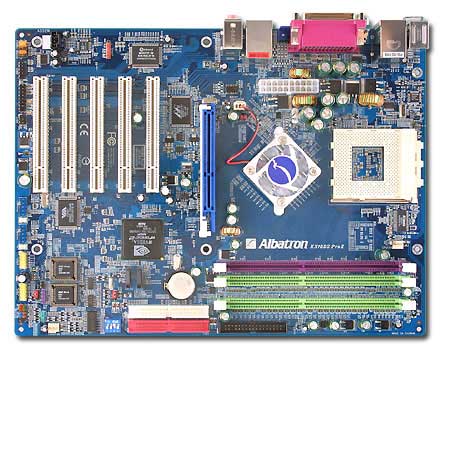

Product Overview:
CPU: AMD K7
Chipset: NVIDIA nFoce2 Ultra400/MCP RAID
Socket: 462
Form Factor: ATX (244*305 mm)
FSB: 200/266/333/400
Memory: 3*DDR200/266/333/400 (Dual Channel DDR400)
Int. GFX: N
AGP: 8X
PCI: 5
USB: 8 USB 2.0/1.1 Ports (4 ports by optional cable)
LAN: nForce2 MCP RAID 10/100 LAN/ Marvell Gbit LAN
Sound: 6 channel AC 97 Audio
South Bridge Speed : ATA 133
RAID: Serial ATA RAID 0,1,0+1
Serial ATA: 2 * Serial ATA Channel
IEEE 1394: 2*IEEE1394 Ports
BIOS Mirror: Y
Voice Genies: Y
Product Features:
- AMD Athlon/ AthlonXP/AthlonXP Barton/DuronProcessor
- Socket 462 with FSB 200/266/333/400+(by overclocking) MHz
- 3 DDR400/DDR333/266/200 Memory Sockets (Dual DDR400)
- AGP 8X , 6 channel AC 97 Audio
- 2 ATA133 Channels, up to 4 ATA 133 IDE Devices
- nForce2 MCP RAID 10/100 Ethernet LAN/ Marvell Gbits LAN
- 2 Serial ATA150 Channels, Serial ATA RAID 0,1,0+1
- 2 IEEE1394 Ports
- 8 USB 2.0/1.1 Ports (4 ports by optional cable)
- BIOS Mirror
- Voice Genie
Product Specifications:
Processor
AMD Athlon/ AthlonXP / AthlonXP Barton/ DuronProcessor
FSB
200/266/333/400 MHz
Chipset
North Bridge: nVIDIA nForce2 SPP (Ultra 400)
South Bridge: nVIDIA nForce2 MCPS
LAN Chip : LAN PHY Realtek RTL8201CL / Marvell MV8001
IEEE1394 Chip : VIA VT6307
Audio Codec: Realtek ALC650
Serial ATA Chip : nVIDIA nForce2 MCP RAID
I / O Chip : Winbond W83627HF
Memory
3 *DDR Sockets:
DDR400/DDR333/266/DDR200 NON-ECC DDR SDRAM up to 3GB ( Single Channel) , up to 2GB ( Dual Channel )
Expansion Slots
1 x AGP 3.0 8X/4X slot (1.5V & 0.8 V Only)
5 x PCI slots (PCI 2.2 compliant)
IDE / SATA Connectors
2 ATA133 channels, up to 4 ATA 133 IDE Devices
Onboard I/O Connectors
1 x Floppy Connector
2 x USB 2.0/1.1 header (4 ports USB cable optional)
2 x IEEE1394 header (2 ports IEEE1394 cable optional)
1 x CD_IN header
1 x COM Port header
1 x S/PDIF in/out header (S/PDIF in/out cable optional)
1 x CPU fan header with fan rotation detection function
1 x System fan headers with fan rotation detection function
1 x10 pin system panel header (Intel spec)
1 x 3 pin Power LED header
1 x 4 pin Speaker header
1 x Front audio header (Intel spec)
1 x Case Open detection header
2 x 5 pin Com port header
2 x 8 pin Game Port header
I/O via Back Panel
PS/2 keyboard/mouse, 4 x USB(2.0/1.1), 2 x RJ45 ,1 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC
Power
20-pin ATX power connector
BIOS Feature
4 Mb Flash EEPROM
Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend to Disk (S4) Wake on keyboard / Mouse, Wake on LAN/RTC Timer
Hardware Monitoring
2 FAN sensors, CPU/System voltages and temperature monitoring
Special Feature
Zero Jumper Design
BIOS Mirror [TM]Protect BIOS by creating an original mirror image of itself
Voice Genie [TM]Voice Troubleshooting system ( four-Language )
Adjustable CPU frequency by 1 MHz increment, Adjustable Vcore, VAGP, VMemory for overclocking
Watch Dog Timer (auto-reset system when it can not handle overclock configurations)
Special design for CPU Over Temperature Protection.( OTP )
Certifications
FCC,CE, BSMI
Form Factor
ATX (244*305 mm)
