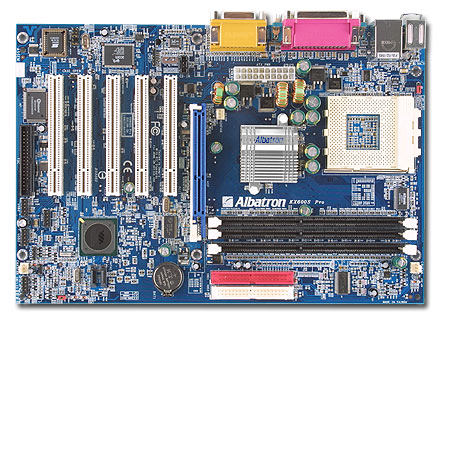

Product Overview:

CPU D,A
Socket type 462
Form factor ATX
FSB 400
Chipset VIA KT600
On-board video No
On-board audio 5.1
On-board LAN 10/100
SDRAM slots No
DDR-SDRAM slots 3
DDR2-SDRAM slots No
ECC No
Memory speed 400 MHz
Max memory 3GB
Graphics slot AGP 8x
PCI slots 5
PCIe-1 slots No
IDE headers 2 x ATA-133, 2 x SATA
RAID SATA
SCSI No
USB headers 8xUSB2
Firewire headers No

Product Specifications:

AMD Athlon/AthlonXP/ AthlonXP Barton/DuronProcessor
Socket 462 with FSB 200/266/333/400 MHz
3 DDR333/266//400 Memory Sockets
AGP 8X , 6 channel AC 97 Audio
2 Serial ATA150 Channels, Serial ATA RAID 0,1
2 ATA133 Channels, up to 4 ATA 133 IDE Devices
3Com 10/100 Ethernet LAN
8 USB 2.0/1.1 Ports (6 ports by optional cable)

Processor

AMD Athlon/AthlonXP/ AthlonXP Barton/DuronProcessor

FSB

200/266/333/400 MHz

Chipset

North Bridge : VIA KT600
South Bridge : VIA 8237
LAN Chip : 3Com 3C920 LAN Chip
AC97 Audio Codec : Realtek ALC655
I/O Chip : Winbond W83697HF

Memory

3 x DDR sockets
DDR266/333/400 NON-ECC DDR SDRAM up to 3GB
Note 1: If the FSB of your CPU is 200 MHz, the memory speed supports only DDR 266
Note 2: If the FSB of your CPU is 266/333/400 MHz, the memory speed supports DDR 266/333/400

Expansion Slots

1 x AGP 8X slot ( 1.5V Only )
5 x PCI slots (PCI 2.2 compliant)

IDE / SATA Connectors

2 ATA133 channels, up to 4 ATA 133 IDE devices

Onboard I/O Connectors

1 x Floppy Connector
3 x USB 2.0/1.1 header(6 ports by optional cable)
1 x CD_IN header
1 x S/PDIF in/out header (S/PDIF in/out cable optional)
1 x CPU fan header with fan rotation detection function
1 x System fan headers with fan rotation detection function
1 x10 pin system panel header (Intel spec)
1 x3 Power LED header
1 x Front audio header (Intel spec)
1 x Case Open detection header

I/O via Back Panel

PS/2 keyboard/mouse, 2 x USB(2.0/1.1), RJ45,2 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC

Power

20-pin ATX power connector

Form Factor

ATX (200mm x 293mm)
