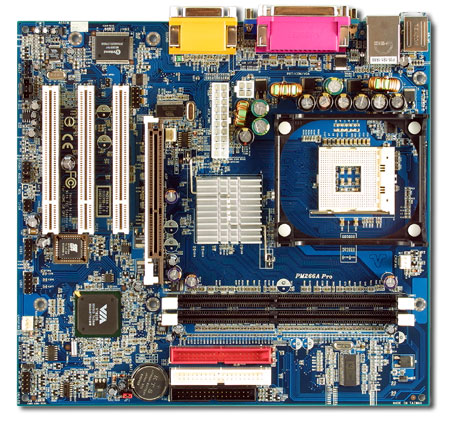

Albatron Motherboard PM266A PRO V1.2 SKT 478 VGA+LAN+5.1 SND - PRESCOTT SUPPORT

Sorry, this product is no longer available to order

Here are some other products you might consider...

Albatron Motherboard PM266A PRO V1.2 SKT 478 VGA+LAN+5.1 SND - PRESCOTT SUPPORT

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is no longer available to order

Description

Product Features:

Intel Pentium® 4 Processor (Celeron/Willamette/Northwood/Prescott(FMB1.0))
Socket 478 with FSB 400/533MHz
2 DDR266/200 Memory Sockets
6 channel AC 97 Audio
VIA 10/100 Ethernet LAN
2 ATA133 Channels, up to 4 ATA 133 IDE Devices
6 USB 2.0/1.1 Ports (4 ports by optional cable)
Integrated ProSavage8 2D/3D Graphics ( Share memory maximum 32 MB )
Support Hyper-Threading Technology

Processor

Intel Pentium® 4 Processor (Celeron/Willamette/Northwood/Prescott(FMB1.0))

FSB

400/533MHz

Chipset

North Bridge : VIA VT8751A (P4M266A Ver:CE)
South Bridge : VIA VT8235
Audio Codec : VIA VT1616
LAN Chip : VIA VT6103
I/O Chip : Winbond W83697HF

Memory

2 * DDR Sockets
DDR266/DDR200 NON-ECC DDR SDRAM up to 2GB
Note1: (If you do install DDR 333/400 memory, it will perform at DDR 266 speeds)

Expansion Slots

1 x AGP(2.0) 4X slot (1.5V only)
3 x PCI slots (PCI 2.2 compliant)

IDE / SATA Connectors

2 ATA133 channels, up to 4 ATA 133 IDE devices

Onboard I/O Connectors

1 x Floppy Connector
2 x USB 2.0/1.1 header (4 ports USB cable optional)
1 x CD_IN header
1 x COM (serial) port header (Optional COM cable)
1 x S/PDIF out header (S/PDIF out cable optional)
1 x CPU fan header with fan rotation detection function
1 x System fan headers with fan rotation detection function
2 x 5 pin system panel header (Intel spec)
1 x 3 pin Power LED header
1 x Front audio header (Intel spec)
1 x IrDA header
1 x Case Open detection header

I/O via Back Panel

PS/2 keyboard/mouse, 2 x USB(2.0/1.1), 1 x VGA , 1 x Com(serial), 1 x Parallel, 1x Game/Line-in/Lin-out/MIC

Power

20-pin ATX power connector, 4-pin ATX 12V power connector

BIOS Feature

2Mb Flash EEPROM
Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green
Suspend to RAM (S3), Suspend to Disk (S4)
Wake on keyboard/mouse, Wake on LAN/RTC Timer

Hardware Monitoring

2 FAN sensors, CPU/System voltages and temperature monitoring

Special Feature

Watch Dog Timer (auto-reset system when it can not handle overclock configurations)

Certifications

FCC, CE, BSMI

Form Factor

Micro ATX (244mm x 225mm)
Release date Australia
August 8th, 2005
Manufacturer code:
PM266A PRO V1.2
Manufacturer Code
PM266A PRO V1.2
