The majority of all surge-induced damage is caused by surges and spikes traveling along unprotected data lines. These surges originate from a wide variety of sources, including static charge buildup and lightning strikes.

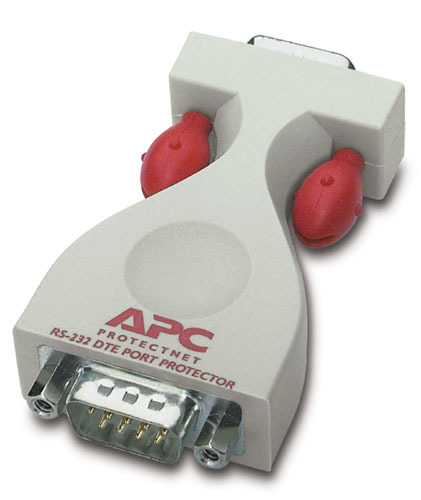

Left unprotected, your data lines expose network cards, A/V components, modems and other network equipment to damaging electrical transients. The ProtectNet family of stand-alone surge suppressors protects individual data lines, including telephone and network lines, coax cables, and more.

Inserting a ProtectNet in your data line and connecting it to earth ground prevents back-door surges from ruining your productivity and costing you money.

Surge Protection and Filtering

• Peak Current Common Mode 0.20 kAmps
• NM Surge Response Time (ns) 1 ns
• Data Lines Protected
• (multi-line only) 1-9
• Let Through Voltage Rating < 40

Physical

• Net Weight 0.06 KG
• Maximum Height 76.00 mm
• Maximum Width 36.00 mm
• Maximum Depth 15.00 mm
• Shipping Weight 0.10 KG
• Shipping Height 178.00 mm
• Shipping Width 165.00 mm
• Shipping Depth 44.00 mm
• Master Carton Units 40.00
• Color Beige

Environmental

• Operating Environment -15 - 45 °C
• Operating Relative Humidity 0 - 95%
• Storage Temperature -15 - 45 °C
• Storage Relative Humidity 0 - 95%

Conformance

• Regulatory Approvals UL 497B,UL Listed
• Standard Warranty Lifetime
• Environmental Compliance RoHS,China RoHS
