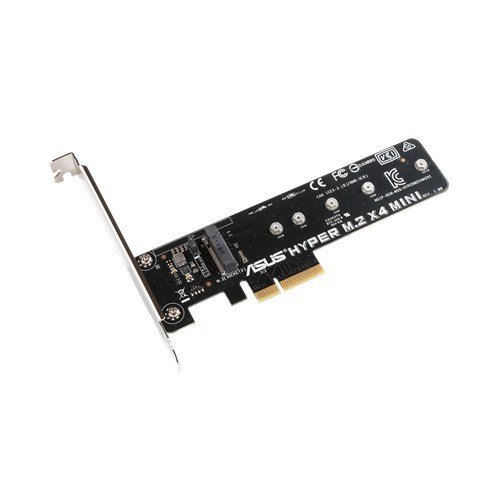

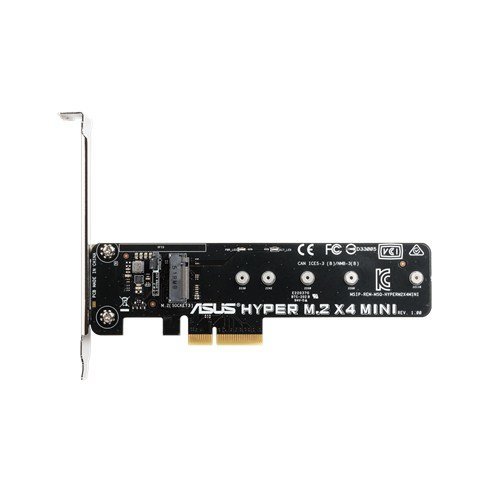

ASUS HYPER M.2 X4 MINI CARD
Ultra-fast M.2 speeds of up to 32Gbit/s with PCIe slot flexibility:
- Fits in any PCIe x4, x8, x16 slot
- Supports 30mm (2230) to full-length 110mm (22110) M.2 cards
- NVM Express SSD support available with the ASUS Hyper Kit* (*Sold separately)
Ultra-fast speed with PCIe slot flexibility:
With a low-profile design that promotes the best-ever airflow to adjacent
expansion cards, fit the PCI Express x4 add-in card to any slot that suits your
PC build and pump M.2 performance up to a blistering 32Gbit/s — for
unmatched performance. And upgrade without limitations, as any M.2 card between
30mm (2230) to full-length 110mm (22110) is supported.
Combine with ASUS Hyper Kit for NVM Express SSD support:
ASUS Hyper M.2 x4 Mini pairs instantly ASUS Hyper Kit*, giving you the freedom
to fit next-generation 2.5-inch NVM Express SSDs for ultimate data-transfer
speeds of up to 32Gbit/s.
Interface
PCI Express 3.0 x4 interface
Compatible with PCI Express x8, and x16 slots
External Connectors
1 x M.2 x4 Socket 3 with vertical M Key design, type
2230/2242/2260/2280/22110 storage devices support(Support PCIE SSD only)
1 × 3-pin Hyper Kit jumper
Accessories

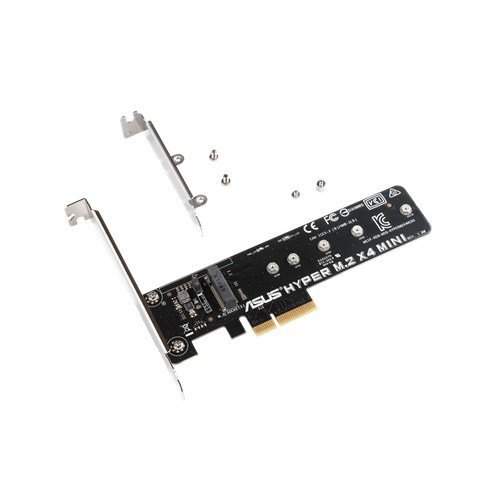

1 x low profile bracket
1 x M.2 screws package
1 x Installation Guide
Dimensions
155(L) x 470(W)mm
Compatible Model
Support ASUS Z170/H170/X99/Z97/H97/B85 series motherboard models
