Computer Components:

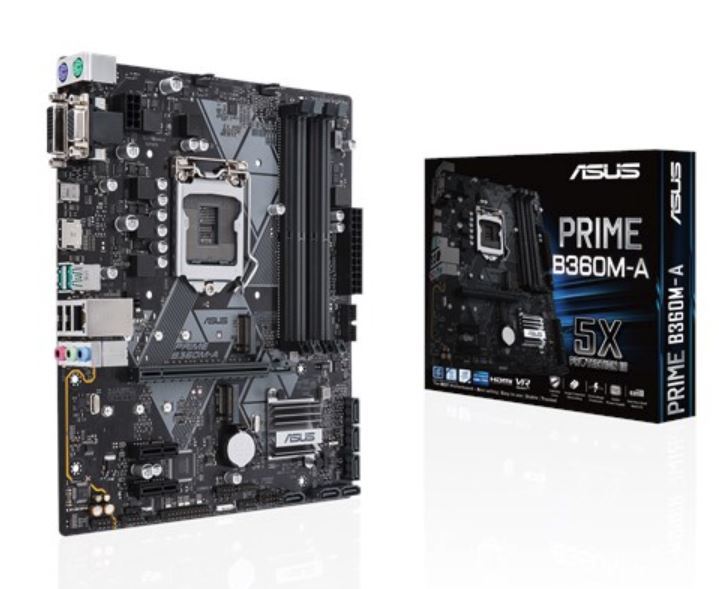

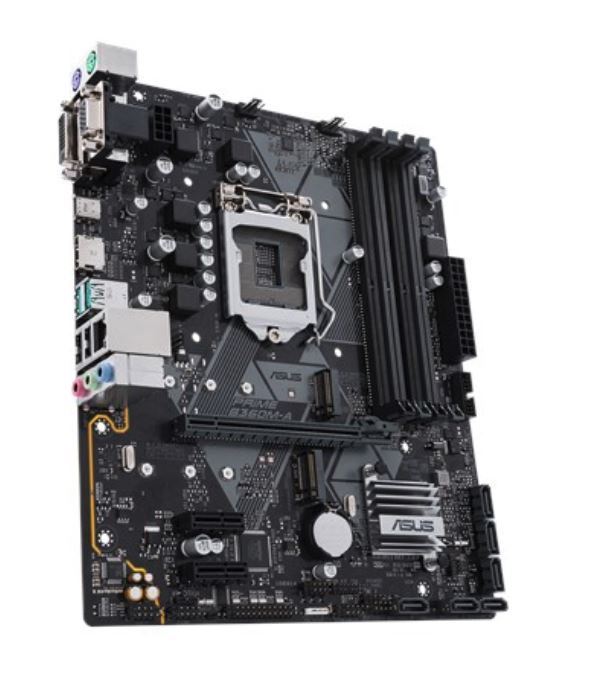

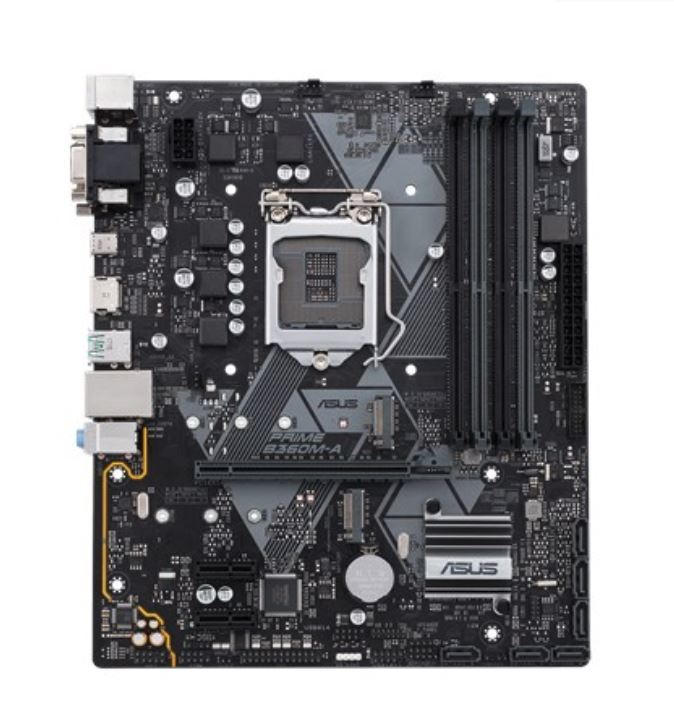

Asus Prime B360M-A Intel B360 M-Atx Coffee Lake Socket 1151 Motherboard

4Xddr4-2666 Pci-E3.0 Usb3.1 Sata3 M.2 Hdmi/Dvi-D/Vga

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$220.00
or 4 payments of $55.00 with Learn more
Hurry! Only 1 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships tomorrow!

Availability

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • 17-18 December using Express Delivery
    Mighty Ape can deliver this product within 1-2 business days (usually overnight) to urban centres across Australia, and some remote areas. Learn more
    In time for Christmas
  • 18-20 December using standard courier delivery
    In time for Christmas

Description

Intel LGA-1151 mATX motherboard with Aura Sync RGB header, DDR4 2666MHz, M.2 support, HDMI, Intel Optane memory ready, SATA 6Gbps and USB 3.1 Gen 2

  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
  • Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
  • 5X Protection III: Multiple hardware safeguards for all-round protection.
  • ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware.
  • Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 Intel Optane memory ready and native M.2 support for Lightning-fast storage speeds.

PRIME B360M-A
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.

Improved DDR4 stability
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload – whether you're gaming or running intensive applications

Cooler by design
Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.

Media-acclaimed UEFI BIOS
The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.

USB 3.1 Gen 2 Type-A
Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps — twice as fast as standard USB 3.1 Gen 1.

USB 3.1 Gen 1 front-panel connector
Future-proof connectivity
USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.

M.2
Speed up with onboard M.2
With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.

Intel Optane memory
Intel Optane memory ready
Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime 300 Series motherboards. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

Specifications
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Chipset
Intel® B360

Form Factor
mATX

LAN
Realtek® RTL8111H, 1 x Gigabit LAN ASUS LAN Guard
Memory/Type/Bus/Max. 4XDIMM/DDR4/2666 MHz/64GB

Other I/O Connectors

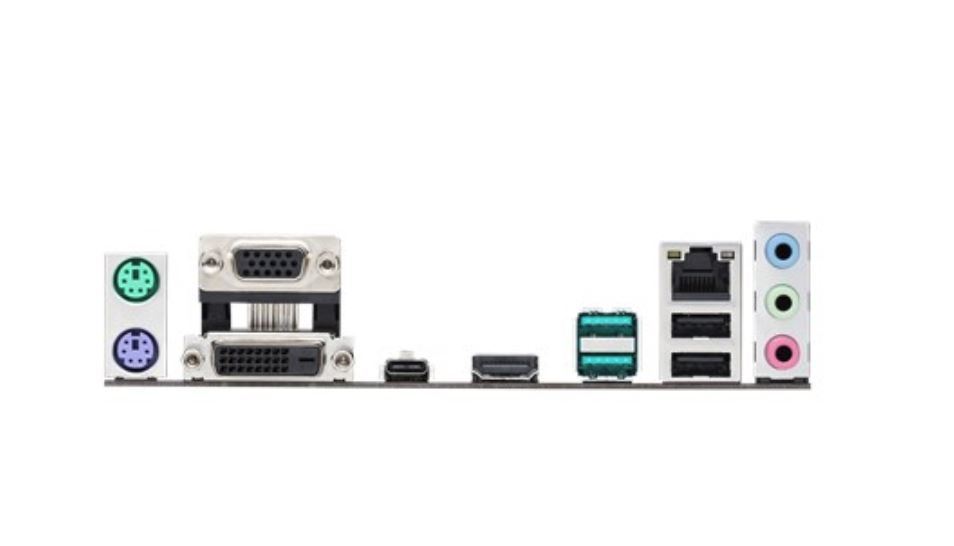

1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps 1 x USB 3.1 Gen 1 USB Type-CTM, up to 5Gbps 2 x USB 2.0 1 × 8-channel Audio I/O

Processor Support
8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Ce­leron® Processors

Socket
Intel LGA1151

Storage Interface
Intel® B360 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 × 4 mode) 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 × 4 mode) 6 x SATA 6Gb/s port(s), gray

USB Ports
Intel® B360 Chipset : 2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A) Intel® B360 Chipset : 3 x USB 3.1 Gen 1 up to 5Gbps port(s) (1 at back panel, , USB Type-CTM, 2 at mid-board) Intel® B360 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, +black, Type-A, 4 at mid-board)

Video Output
HDMI/DVI-D/VGA

Release date Australia
July 17th, 2018
Manufacturer code:
90MB0WQ0-M0UAY0
Manufacturer
Motherboard Form Factor(s)
  • microATX
Number of VGA Ports
1
Number of DVI Ports
1
Number of HDMI Ports
1
Supported M.2 Module Code(s)
  • 2242
  • 2260
  • 2280
Number of USB 2.0 Headers
2
Number of USB 3.1 G2 Type-A Back Panel Ports
2
Box Dimensions (mm)
275x265x55
UPC
889349984369
Product ID
28253421
