Cooler Master Hyper 212 X CPU Cooler

Click to share your rating 234 ratings (4.7/5.0 average) Thanks for your vote!
Unavailable
Sorry, this product is not currently available to order

Customer reviews

4.7 out of 5 stars Based on 234 Customer Ratings

5 star
(181)
4 star
(43)
3 star
(7)
2 star
(1)
1 star
(2)
Showing top 3 most helpful reviews.

View all 35 reviews...

Write a Review
"Great cooler, pain to put on though"
5 stars"
Purchased on Mighty Ape

This cooler is great, keeps my CPU nice and cool. But it's tricky to put on and there are two types of screws (one for AMD and one for Intel sockets) and it took me 10 minutes to work out which one was which because the diagrams aren't the most detailed. But I got there in the end.

13 out of 14 people found this review helpful.
"Good, but pain to install."
4 stars"
Purchased on Mighty Ape

I like this cooler and it does what it says on the box. My only problem is the installation process. Getting the back guide plate into place and making sure the heatsink cross locking is the right way around was a pain. Also if you are using a motherboard with ram slots close to the cpu, make sure to put the fan on after you lock the heatsink into place. Other then that, this is a really good cooler, keeping my cpu (i7) at about 25–30 on idle and 35–40 degrees under stress.

4 out of 4 people found this review helpful.
"Good cooler, but a bit tricky install."
4 stars"
Purchased on Mighty Ape

Works well, but is a bit tricky to install compared to others that I have installed

3 out of 3 people found this review helpful.

Description

New Smart Engine and 4th Generation Bearing Fan, 4 X-shaped vents surrounding a Heatpipe All-In-One Mounting!

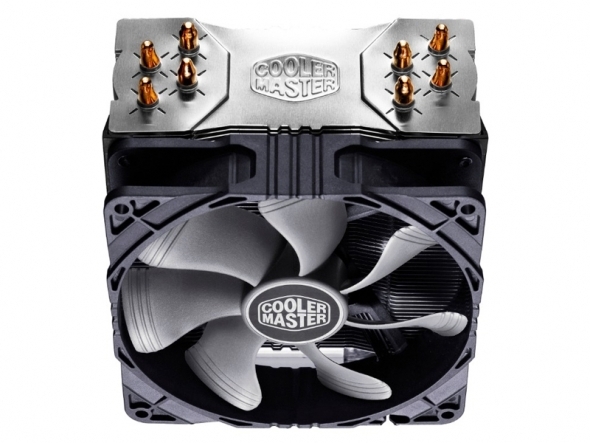

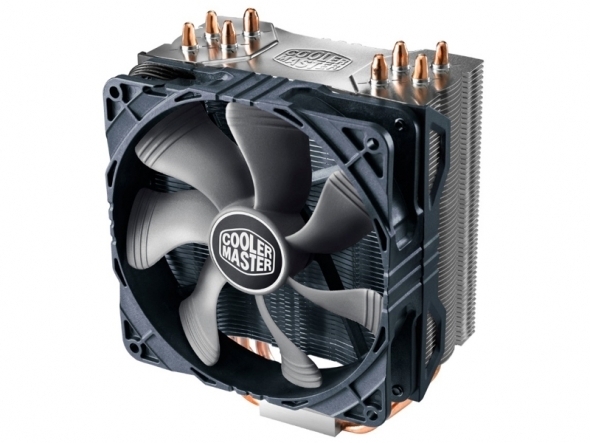

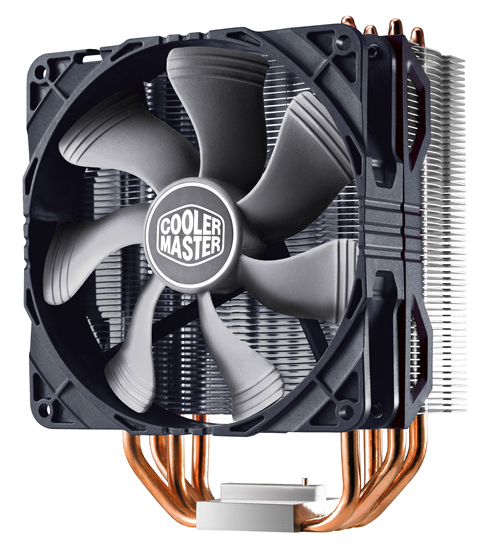

The CoolerMaster Hyper 212X introduces several new features to the incredibly popular 212 series. It uses the same Patented Quad CDC Heatpipe array but features a completely new cooling fan and an improved fin-blade layout. Thanks to the new Smart Engine and 4th Generation Bearing, the MTBF has been pushed up to an incredible 160,000 hours while reducing bearing noise. The redesigned Fan-Blades and Aluminium Fin-Blades have both been optimised to create micro vortices that boost the airflow and circulate it around the heatpipes.

Specifications:

  • CPU Socket:
    • Intel LGA 2011–3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775
    • AMD FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
  • Dimension: 120 × 79 × 158 mm / 4.7 × 3.1 × 6­.2 inch
  • Heat Sink Dimensions: 116 × 51 × 158 mm / 4.6 × 2.0 × 6­.2 inch

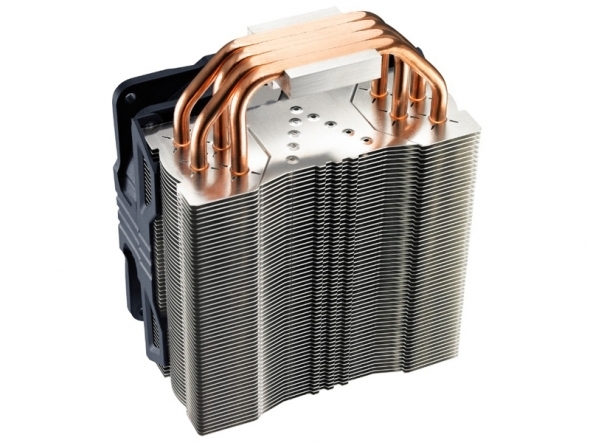

  • Heat Sink Material: 4 Direct contact heatpipes / Aluminum fins
  • Heat Sink Weight: 492g / 1.1lb
  • Heat Pipes Dimensions: ø6mm
  • Fan Dimension: 120 × 120 × 25 mm / 4.7 × 4.7 × 1 inch
  • Fan Speed: 600 – 2,000 RPM (PWM) ± 10%
  • Fan Airflow: 24.9 – 82.9 CFM ± 10%
  • Fan Air Pressure: 0. 3 – 2.09 mm H2O ± 10%
  • Fan Life Expectancy: 160,000 hours
  • Fan Noise Level (dB-A): 9 – 36 dBA
  • Bearing Type: 4th Generation Bearing
  • Connector: 4-Pin
  • Fan Rated Voltage: 12 VDC
  • Fan Rated Current: 0.37A
  • Power Consumption: 4.44W (max)
  • Fan Weight: 106g / 0.2lb

*Thermal Paste included

Release date Australia
January 14th, 2015
Manufacturer code:
RR-212X-20PM-R1
Manufacturer
Supported CPU Sockets
  • LGA 1150 (Socket H3)
  • LGA 1151 (Socket H4)
  • LGA 1155 (Socket H2)
  • LGA 1156 (Socket H)
  • LGA 2011-1 (Socket R2)
  • LGA 2011-v3 (Socket R3)
  • Socket AM3
  • Socket AM3+
  • Socket FM2
  • Socket FM2+
Height (mm)
120
Width (mm)
120
Depth (mm)
58
Box Dimensions (mm)
160x230x90
UPC
884102018862
All-time sales rank
Top 500
Product ID
21639033
