Gigabyte B450 AORUS PRO WIFI ATX Motherboard

Sorry, this product is not currently available to order

Here are some other products you might consider...

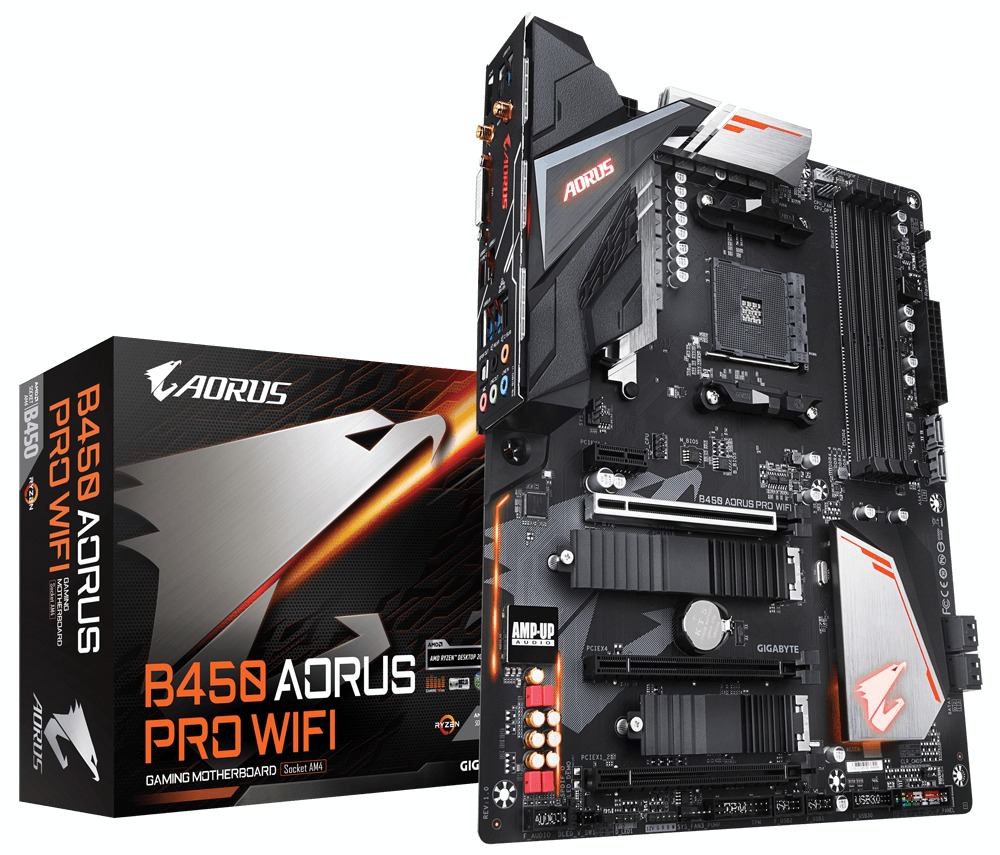

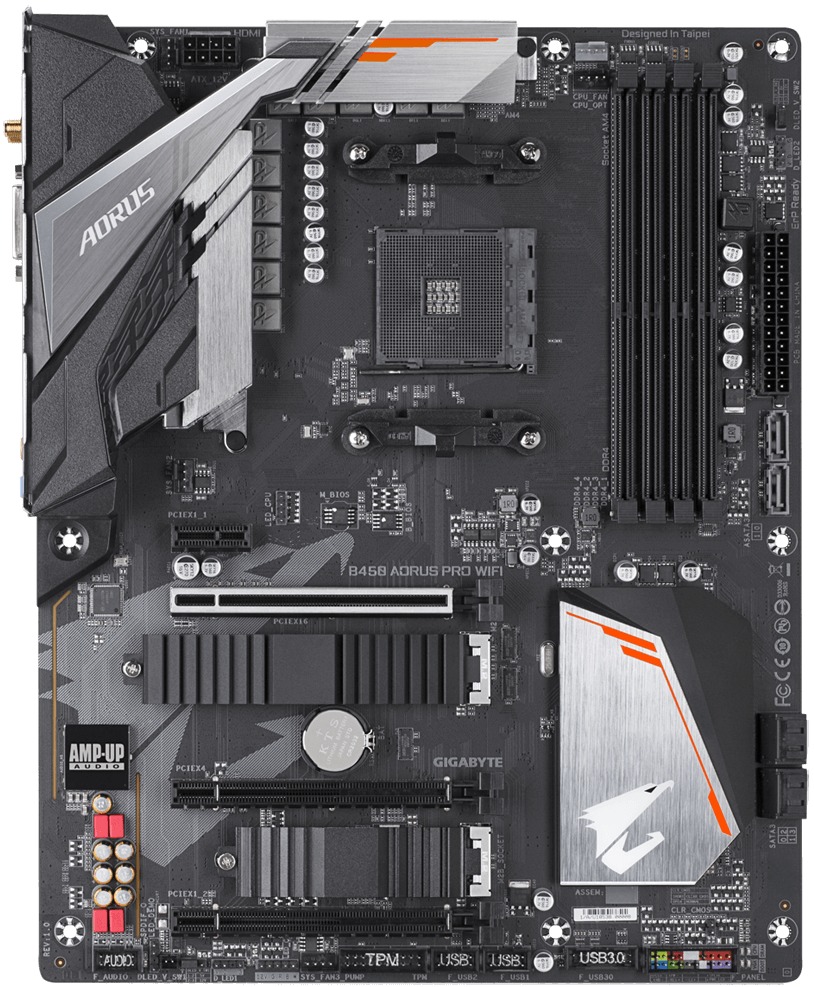

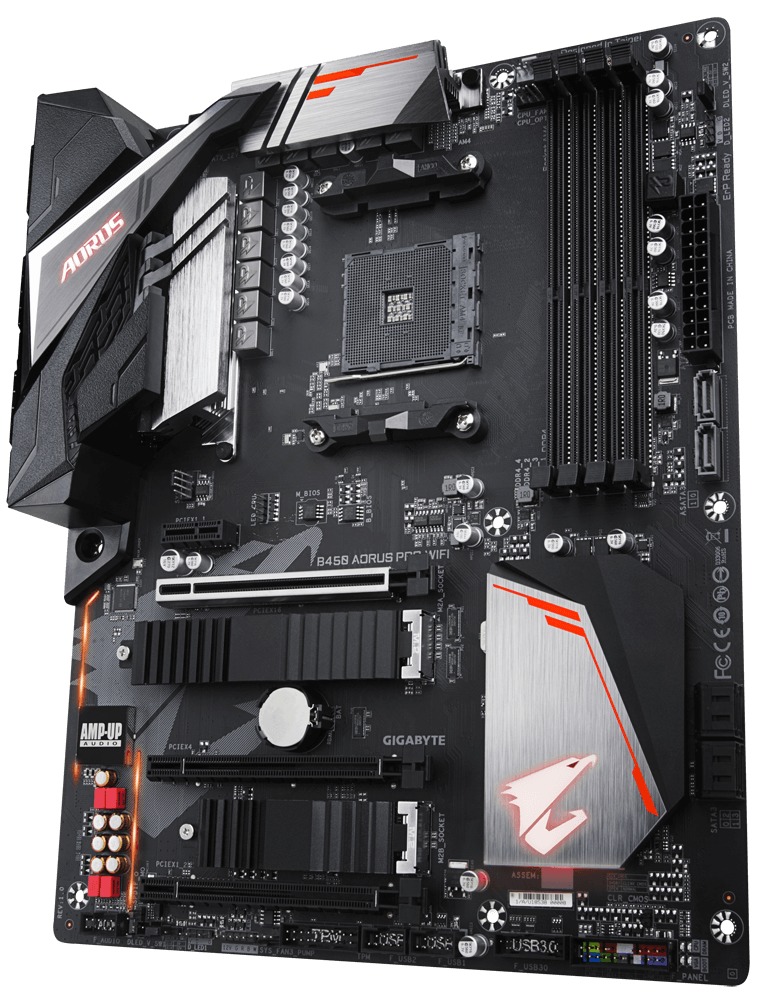

Gigabyte B450 AORUS PRO WIFI ATX Motherboard

Customer rating

Click to share your rating 7 ratings (4.9/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

  • Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Dual Band 802.11ac WIFI & BT 4.2
  • HDMI, DVI-D Ports for Multiple Display
  • Integrated I/O Shield of Ultra Durable™ Design
  • Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards
  • ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • CEC 2019 Ready, Save Power with a Single Click

AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

AMD StoreMI technology
GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors
  • CPU
    • AM4 Socket:
      • AMD Ryzen™ 2nd Generation processors
      • AMD Ryzen™ with Radeon™ Vega Graphics processors
      • AMD Ryzen™ 1st Generation processors
      • (Please refer “CPU Support List” for more information.)
  • Chipset
    • AMD B450
  • Memory
    • 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    • Dual channel memory architecture
    • Support for DDR4 3200(O.C­.)/2933/2667/2400/2133 MHz memory modules
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    • (Please refer “Memory Support List” for more information.)
  • Onboard Graphics
    • Integrated Graphics Processor:
      • 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
      • The DVI-D port does not support D-Sub connection by adapter.
      • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      • Support for HDMI 2.0 version and HDCP 2.2.
      • Actual support may vary by CPU.
      • Maximum shared memory of 16 GB
  • Audio
    • Realtek® ALC1220-VB codec
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • Support for S/PDIF Out
  • LAN
    • Intel® GbE LAN chip (10/100/1000 Mbit)
    • Wireless Communication module
    • Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    • BLUETOOTH 4.2
    • Support for 11ac wireless standard and up to 433 Mbps data rate
      • Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    • Actual support may vary by CPU.
    • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    • (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    • The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.
    • 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
    • 1 x PCI Express x1 slot (PCIEX1_1)
    • (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
    • 1 x M.2 Socket 1 connector for a wireless communication module (M2_WIFI)
      • B450 AORUS PRO WIFI includes the wireless communication module.
  • Storage Interface
    • 1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
    • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOC­KET)
    • 6 x SATA 6Gb/s connectors
    • Support for RAID 0, RAID 1, and RAID 10
    • Refer to “1–7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
  • Multi-Graphics Technology
    • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • USB
    • Chipset:
      • 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
      • 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
      • 2 x USB 3.1 Gen 1 ports available through the internal USB header
      • 4 x USB 2.0/1.1 ports available through the internal USB headers
    • CPU:
      • 4 x USB 3.1 Gen 1 ports on the back panel
  • Internal I/O Connectors
    • 1 × 24-pin ATX main power connector
    • 1 × 8-pin ATX 12V power connector
    • 2 x M.2 Socket 3 connectors
    • 6 x SATA 6Gb/s connectors
    • 1 x CPU fan header
    • 1 x water cooling CPU fan header
    • 2 x system fan headers
    • 1 x system fan/water cooling pump header
    • 1 x CPU cooler LED strip/RGB LED strip header
    • 2 x digital LED strip headers
    • 2 x digital LED strip power select jumpers
    • 1 x RGB (RGBW) LED strip header
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x S/PDIF Out header
    • 1 x USB 3.1 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)
    • 1 x Clear CMOS jumper

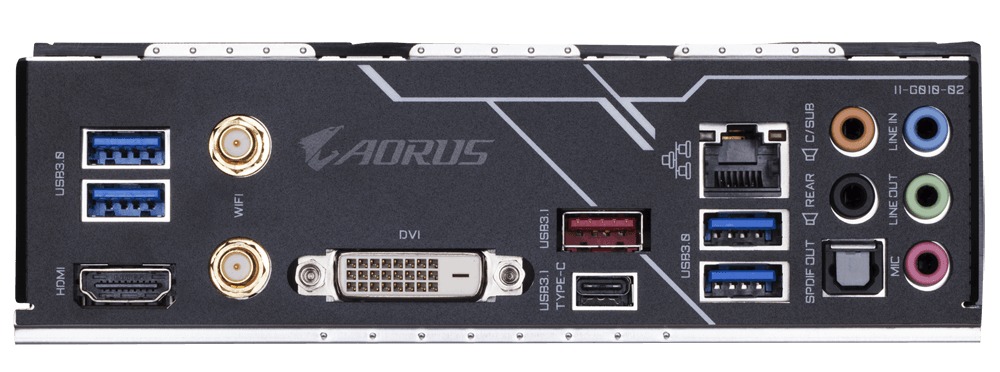

  • Back Panel Connectors
    • 1 x HDMI port
    • 2 x SMA antenna connectors (1T1R)
    • 1 x DVI-D port
    • 4 x USB 3.1 Gen 1 ports
    • 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
    • 1 x USB 3.1 Gen 2 Type-A port (red)
    • 1 x RJ-45 port
    • 1 x optical S/PDIF Out connector
    • 5 x audio jacks
  • I/O Controller
    • iTE® I/O Controller Chip
  • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Overheating warning
    • Fan fail warning
    • Fan speed control
    • Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    • 2 × 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • Support for DualBIOS™
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    • Support for APP Center
      • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    • 3D OSD
    • @BIOS
    • AutoGreen
    • Cloud Station
    • EasyTune
    • Fast Boot
    • Game Boost
    • ON/OFF Charge
    • RGB Fusion
    • Smart Backup
    • Smart Keyboard
    • Smart TimeLock
    • Smart HUD
    • Smart Survey
    • System Information Viewer
    • USB Blocker
    • V-Tuner
    • Support for Q-Flash
    • Support for Xpress Install
  • Bundle Software
    • Norton® Internet Security (OEM version)
    • cFosSpeed
  • Operating System
    • Support for Windows 10 64-bit
    • Support for Windows 7 64-bit
      • To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
      • Please download the “Windows USB Installation Tool” from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    • ATX Form Factor; 30.5cm x 24.4cm
Release date Australia
August 20th, 2018
Manufacturer code:
GA-B450AORUS-PRO-WIFI
Warranty Period
1 year
Brand
Manufacturer
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
Socket AM4
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
3200
Maximum Memory Size (GB)
64
Supported Multi-GPU Technology(ies)
  • AMD 3-Way CrossFireX
Number of VGA Ports
0
Number of DVI Ports
1
Number of DisplayPort Ports
0
Number of HDMI Ports
1
Number of PCI Express x16 Slots
3
Number of PCI Express x1 Slots
0
Number of M.2 Sockets
2
Supported M.2 Module Code(s)
  • 2242
  • 2260
  • 2280
Number of SATA Headers
6
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
2
Number of USB 3.0 Type-A Back Panel Ports
0
Number of USB 3.1 G2 Type-A Back Panel Ports
4
Number of USB Type-C Back Panel Ports
1
Integrated Ethernet Networking
Yes
Supported Wireless Networking Standards
  • 802.11ac
Box Dimensions (mm)
345x275x85
UPC
889523014349
Product ID
28324961
