PC Parts & Components:

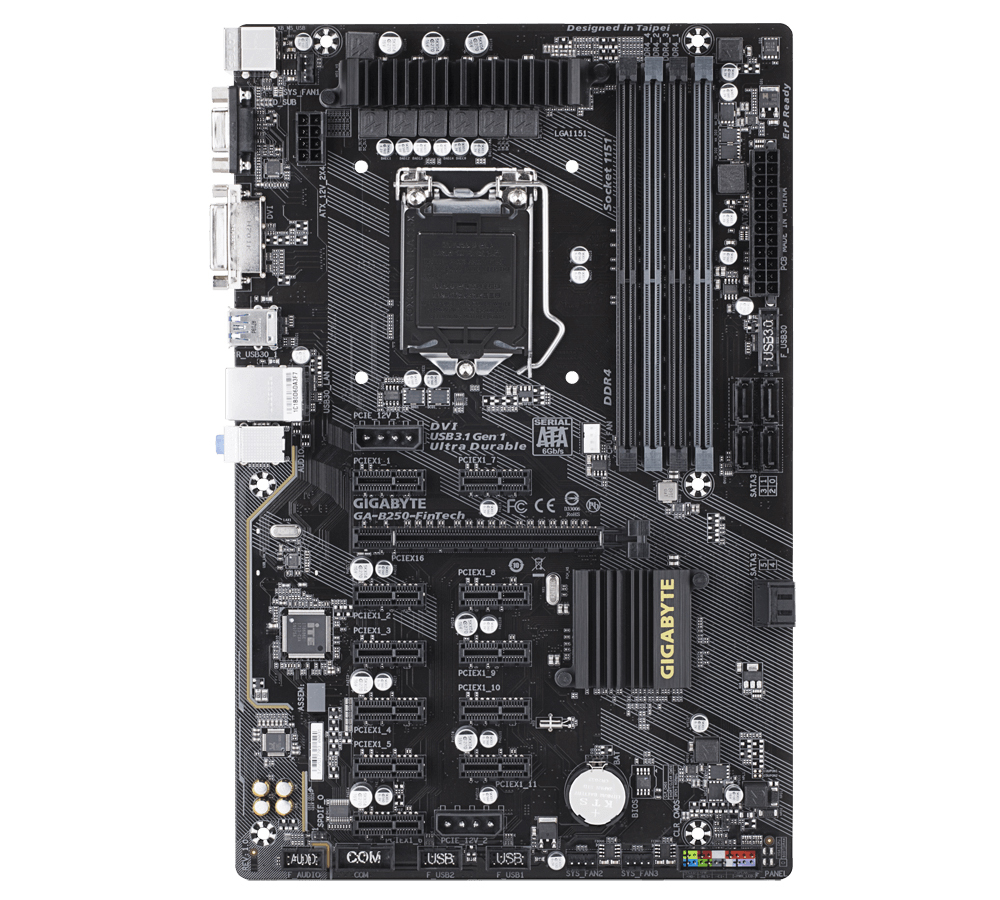

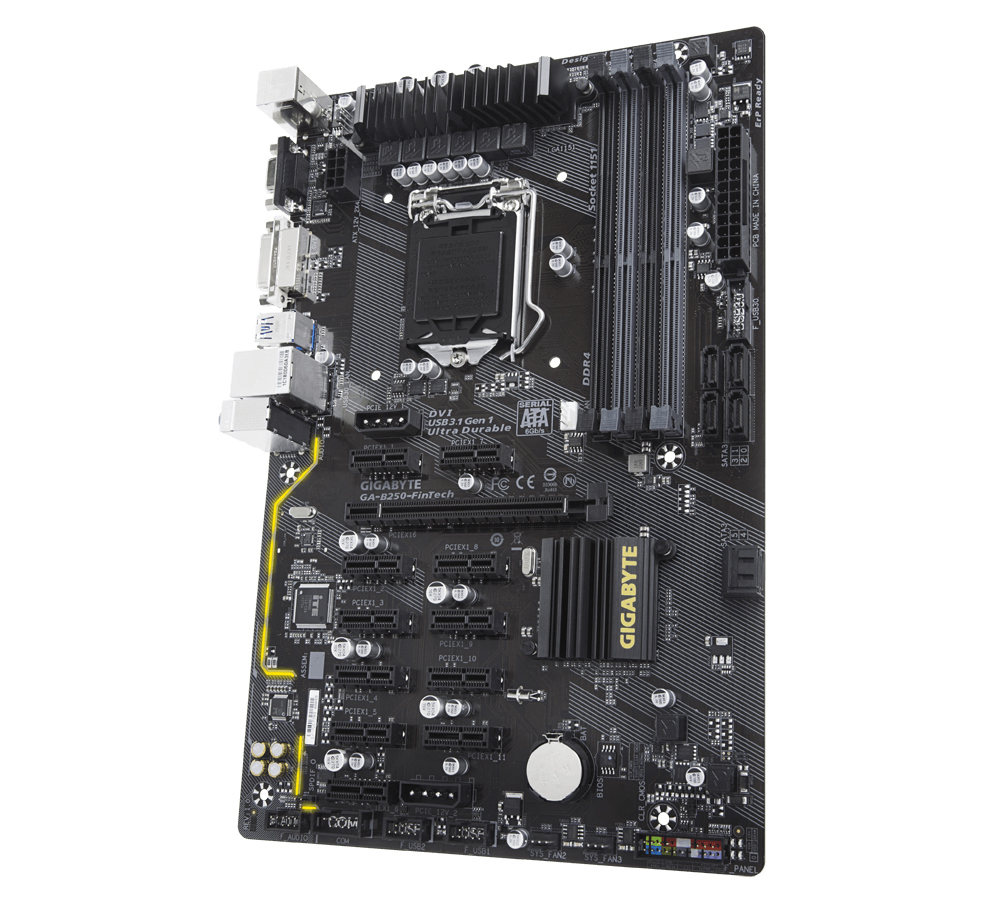

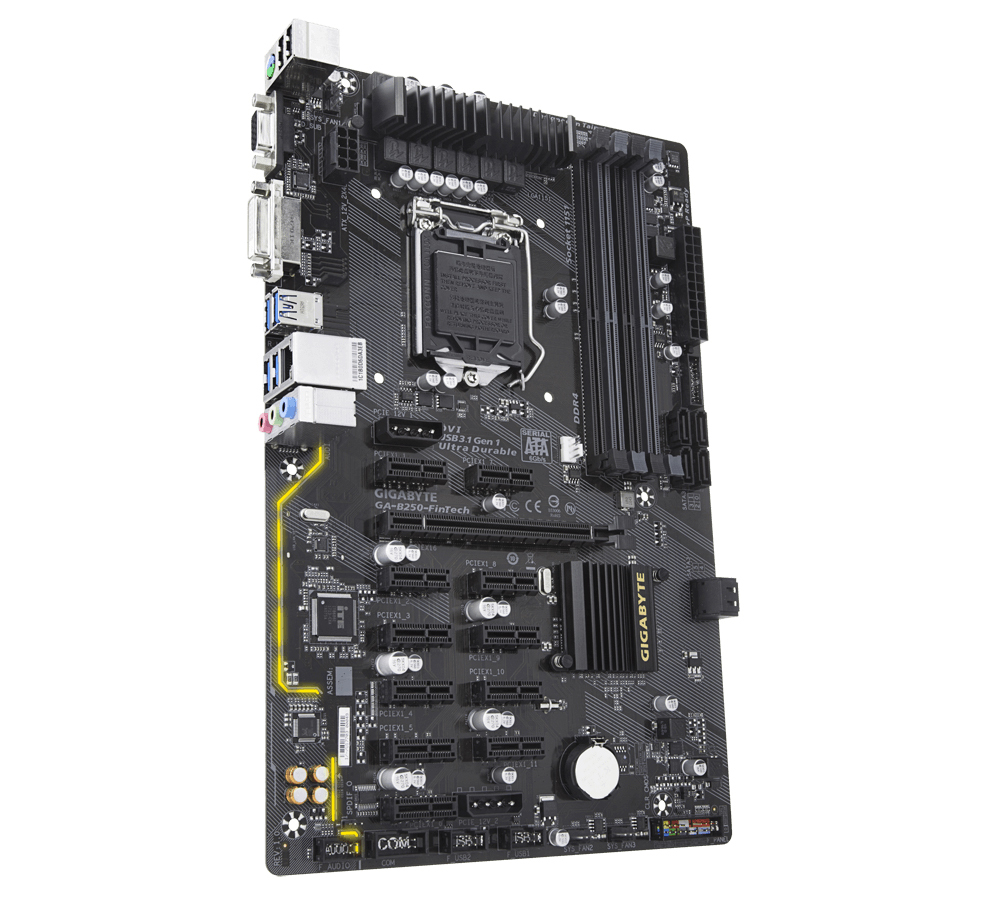

Gigabyte GA-B250-FINTECH Mining Motherboard

Sorry, this product is not currently available to order

Here are some other products you might consider...

Gigabyte GA-B250-FINTECH Mining Motherboard

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!
Unavailable
Sorry, this product is not currently available to order

Description

Specifications

CPU
Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)

Chipset
Intel® B250 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

  • To support 2400 MHz or XMP memory, you must install a 7th Generation processor.

(Please refer “Memory Support List” for more information.)

Onboard Graphics
Integrated Graphics Processor- Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

  • The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 1 GB

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

  • To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
11 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface
Chipset:
6 x SATA 6Gb/s connectors

  • Refer to “1–7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

USB
Chipset:
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
2 x PCIe power connectors
1 x CPU fan header
3 x system fan headers
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

  • Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
1 × 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center

  • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed

Operating System
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)

  • Please download the “Windows USB Installation Tool” from GIGABYTE's website and install it before installing Windows 7.

Form Factor
ATX Form Factor; 30.5cm x 20.0cm

Release date Australia
February 19th, 2018
Manufacturer code:
GA-B250-FINTECH
Warranty Period
1 Year
Brand
Motherboard Form Factor(s)
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Motherboard Chipset
Supported CPU Socket
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2400
Maximum Memory Size (GB)
64
Number of VGA Ports
1
Number of DVI Ports
1
Number of PCI Express x16 Slots
1
Number of PCI Express x1 Slots
11
Number of SATA Headers
6
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
2
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
327x262x70
UPC
889523012420
Product ID
27591107
