• Supports 8th and 9th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4
• 8-Channel HD Audio with High Quality Audio Capacitors
• Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• HDMI 1.4, DVI-D, D-Sub Ports for Multiple Display
• CEC 2019 Ready, Save Power With a Simple Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• All new GIGABYTE™ APP Center, simple and easy use
• Anti-Sulfur Resistors Design
• GIGABYTE UEFI DualBIOS™

Specifications

• CPU
  • Support for 8th and 9th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website
  • for the latest CPU support
  • L3 cache varies with CPU
  • (Please refer “CPU Support List” for more information.)
• Chipset
  • Intel® H310 Express Chipset
• Memory
  • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  • Dual channel memory architecture
  • Support for DDR4 2666/2400/2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
  • (Please refer “Memory Support List” for more information.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  • 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
  • The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  • Support for HDMI 1.4 version and HDCP 2.2.
  • Support for up to 3 displays at the same time
  • Maximum shared memory of 1 GB
• Audio
  • Realtek® ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  • Realtek® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
  • 1 x PCI Express x16 slot, running at x16
  • (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  • 1 x PCI Express x1 slot
  • (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
  • 2 x PCI slots
• Storage Interface
  • Chipset:
    • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
    • 4 x SATA 6Gb/s connectors
  • USB Chipset:
    • 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
  • 1 × 24-pin ATX main power connector
  • 1 × 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x M.2 Socket 3 connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.1 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S modu­le only)
  • 1 x serial port header
  • 1 x parallel port header
  • 1 x Clear CMOS jumper

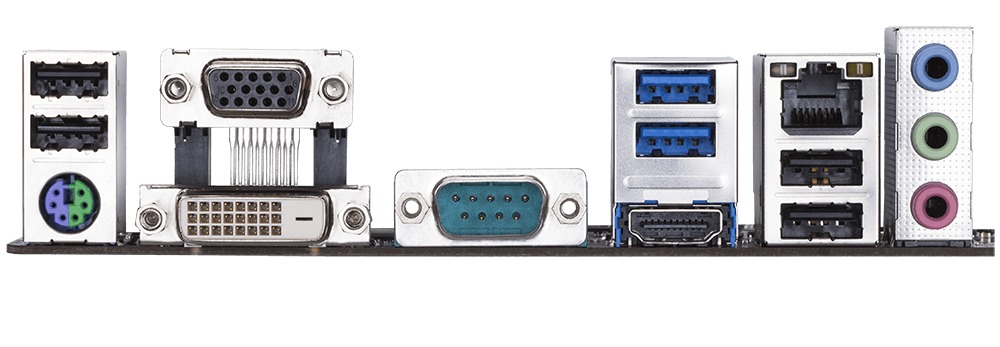

• Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 1 x serial port
  • 2 x USB 3.1 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 2 × 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS™
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • 3D OSD
  • @BIOS
  • AutoGreen
  • BIOS Setup
  • Cloud Station
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • Platform Power Management
  • Smart Backup
  • Smart Keyboard
  • Smart TimeLock
  • Smart HUD
  • System Information Viewer
  • USB Blocker
  • V-Tuner
  • Support for Q-Flash
  • Support for Xpress Install
• Bundle Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
• Operating System
  • Support for Windows 10 64-bit
• Form Factor
  • Micro ATX Form Factor; 24.4cm x 18.5cm
• Remark
  • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
