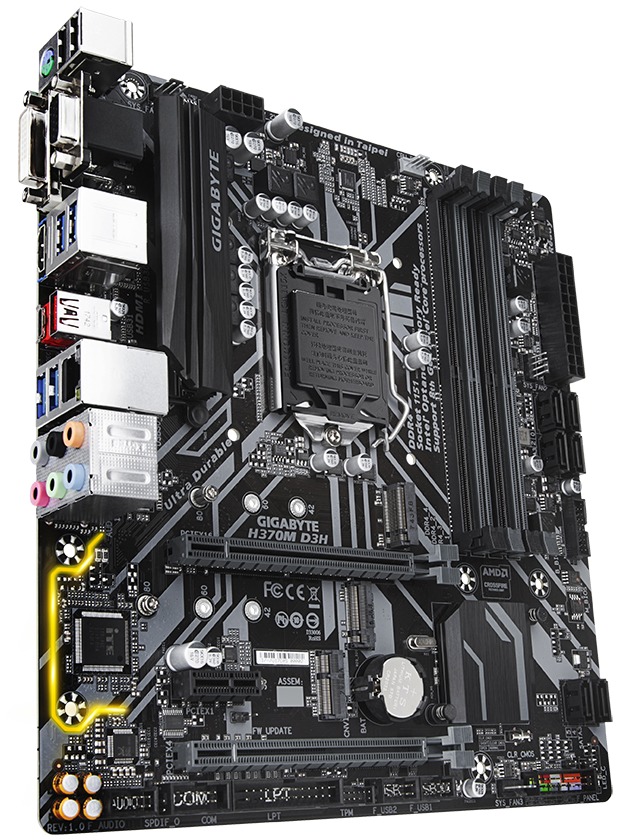

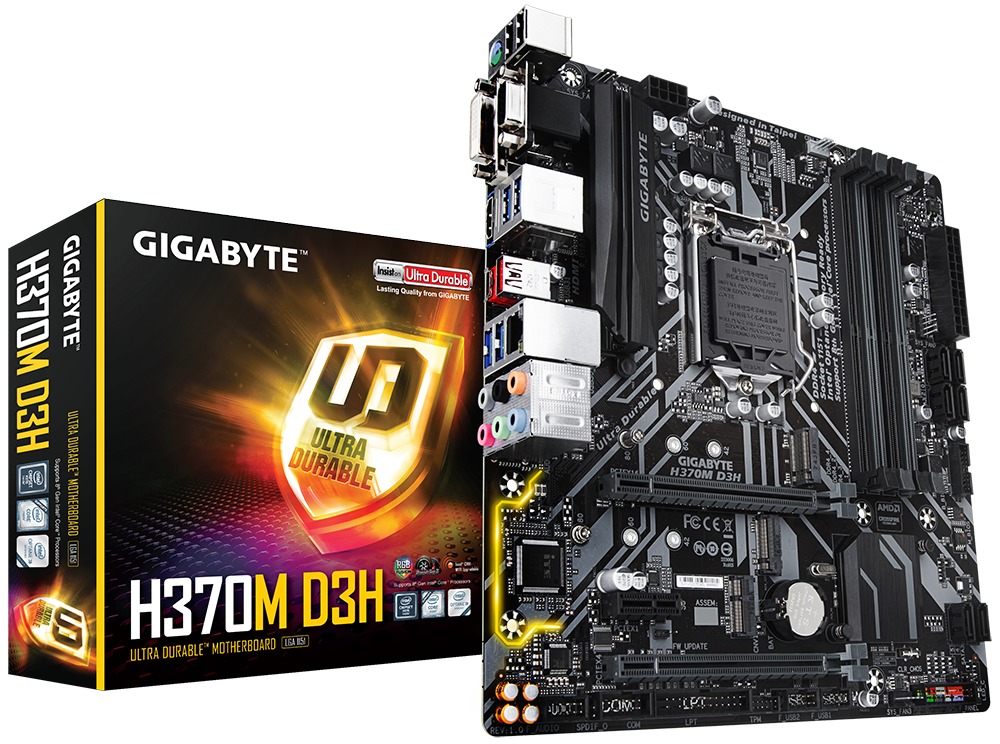

- Supports 8th and 9th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New Hybrid Digital PWM Design
- Intel® CNVi 802.11ac Wave2 2T2R WIFI upgradable

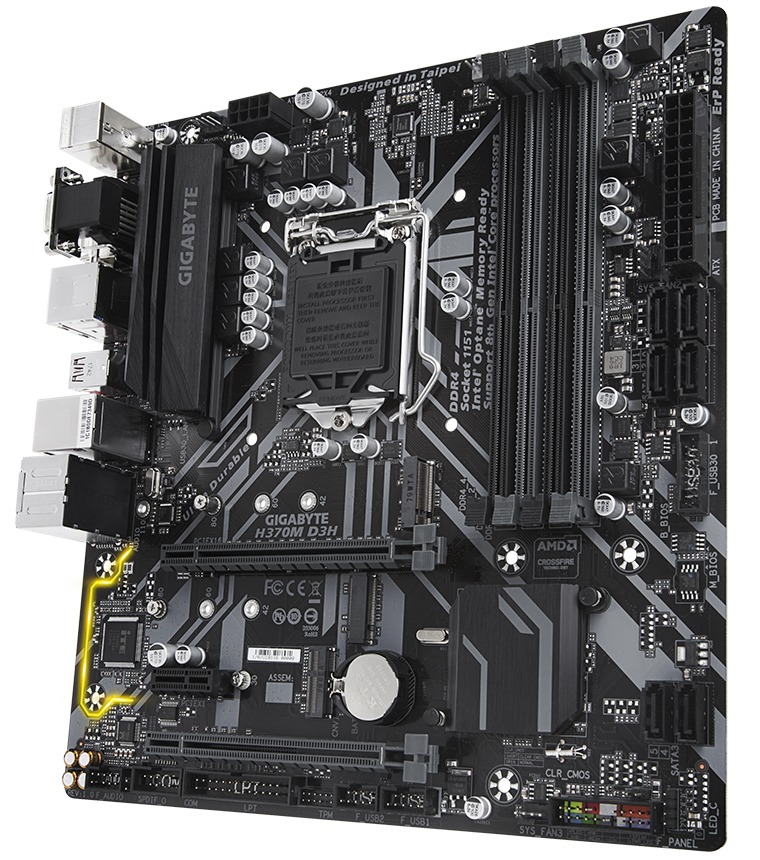

- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface
- RGB FUSION supports RGB LED strips in 7 colors
- Intel® Native USB 3.1 Gen 2 with USB Type-C™ andType-A
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- CEC 2019 Ready, Save the Power as Easy as One Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- Intel® Optane™ Memory Ready
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
Specifications
- CPU
- Support for 8th and 9th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU
- (Please refer “CPU Support List” for more information.)
- Chipset
- Intel® H370 Express Chipset
- Memory
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
- (Please refer “Memory Support List” for more information.)
- Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
- * The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
- Support for HDMI 1.4 version and HDCP 2.2.
- Support for up to 3 displays at the same time
- Maximum shared memory of 1 GB
- Audio
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
- LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)
- Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x1 slot
- (All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
- Storage Interface
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x2 SSD support) (M2P_16G)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
- Refer to “1–7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
- Intel® Optane™ Memory Ready
- Chipset:
- Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
- USB
- Chipset:
- 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
- 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
- Chipset:

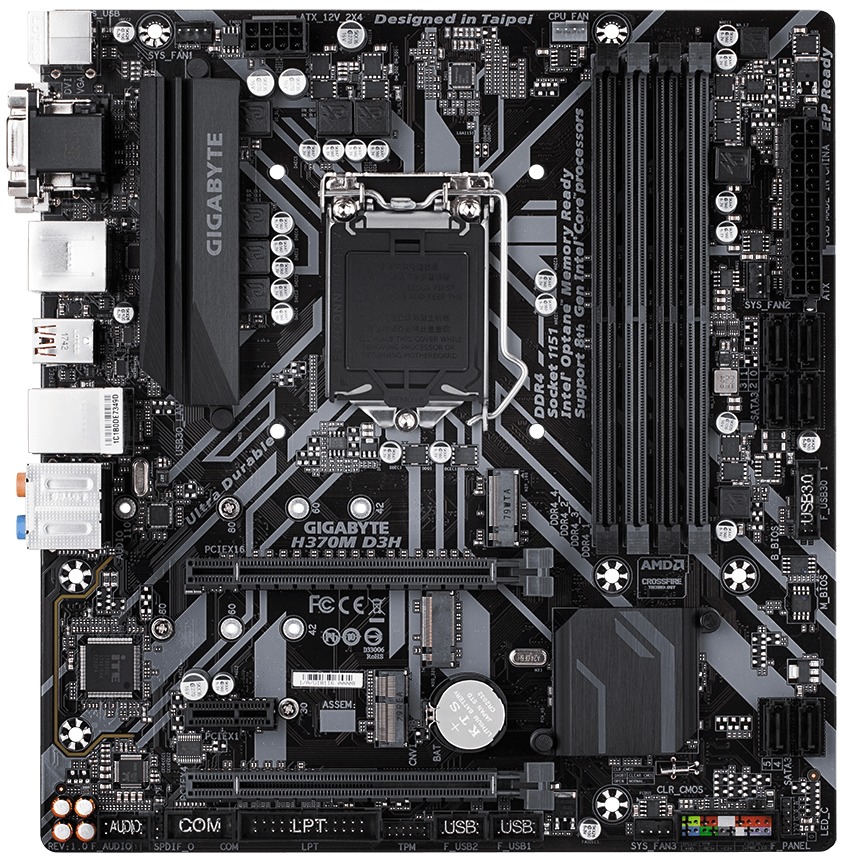

- Internal I/O Connectors
- 1 × 24-pin ATX main power connector
- 1 × 8-pin ATX 12V power connector
- 2 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 3 x system fan headers
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper

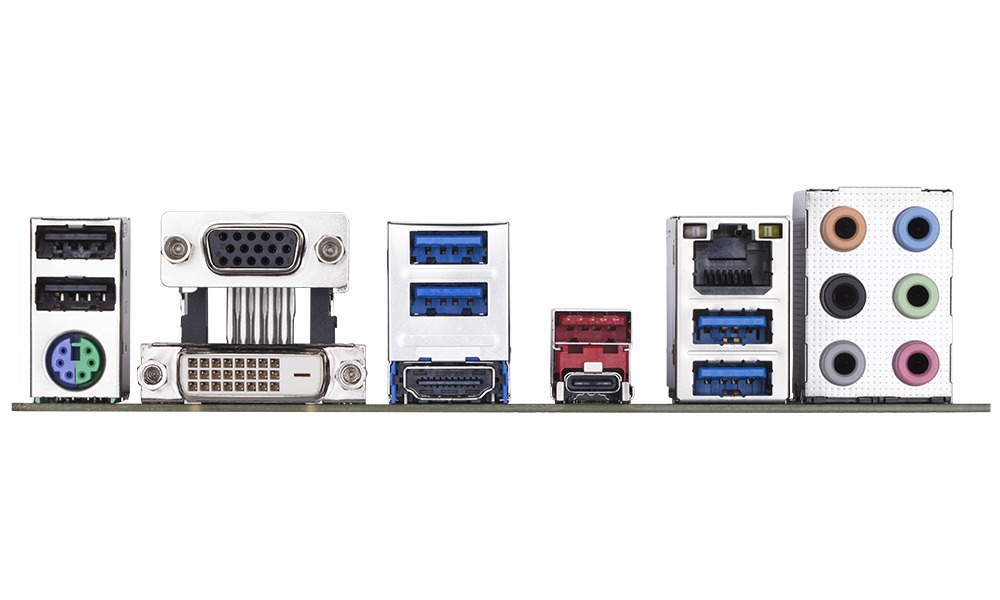

- Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
- 1 x USB 3.1 Gen 2 Type-A port (red)
- 4 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
- Whether the fan speed control function is supported will depend on the cooler you install.
- BIOS
- 2 × 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
- Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- 3D OSD
- @BIOS
- AutoGreen
- Cloud Station
- EasyTune
- Easy RAID
- Fast Boot
- Game Boost
- ON/OFF Charge
- Platform Power Management
- RGB Fusion
- Smart Backup
- Smart Keyboard
- Smart TimeLock
- Smart HUD
- System Information Viewer
- USB Blocker
- V-Tuner
- Support for Q-Flash
- Support for Xpress Install
- Bundle Software
- Norton® Internet Security (OEM version)
- cFosSpeed
- Operating System
- Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 24.4cm x 23.0cm
- Remark
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
