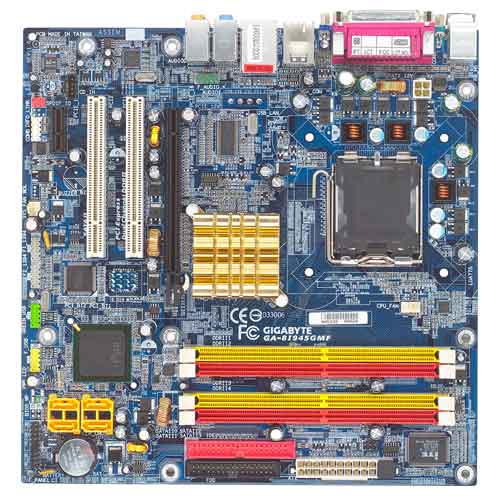

Gigabyte Motherboard LGA775 GA-8I945G-MF

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is no longer available to order

Description

Intel® Graphics Media Accelerator 950
The Intel® Graphics Media Accelerator 950 combines faster graphics processing and increased memory bandwidth to deliver richer visual quality and colors without the need for additional discrete graphics cards.

64-bit Ready
Enter the new 64-bit computing era through Intel® Extended Memory 64 Technology. 64 bit operating system allows twice the amount of data access compare to 32-bit OS, thus enhances system productivity and memory responsiveness.

Step on to high speed connectivity
The high-speed Gigabit Ethernet for LAN connection speed of up to 1,000 Mb/s, allows internet activities such as online gaming or watching streaming videos without delays. As well the onboard Firewire (IEEE1394b) delivers high-speed data thru-put of up to 800Mb/s, enhances PC connectivity for consumer electronics A/V appliances, storage peripherals and portable devices.

Virus Free Protection
Deliver solid protection against hackers, viruses, and privacy infringements via the Internet with Intel® Execute Disable Bit technology and bundled Norton Internet Security. With combination of both hardware and software anti-virus mechanisms, greatly reduces the treat of virus attacks to the system.

Xpress Recovery
Xpress Recovery is the revolutionary BIOS feature designed to improve system security. With Xpress Recovery the system and personal files can be easily back up into security area and be restored in just few steps if necessary.

Specifications:

Processor
1. LGA775
2. Intel® Pentium® D Processor
3. Intel® Pentium® 4 Processor
4. Supports 1066/800/533MHz FSB

Chipset
1. Northbridge: Intel® 945G Express Chipset
2. Southbridge: Intel® ICH7
3. T.I IEEE1394a controller
4. Marvell 8053 Gigabit Ethernet controller
5. Realtek ALC882 audio codec

Memory
1. 4 DDR II DIMM memory slots (supports up to 4GB memory)
2. Supports 1.8V DDR II DIMM
3. Supports dual channel DDR II 667/533/400 DIMM

Internal I/O Connectors
1. 4 x Serial ATA II 3.0Gb/s connectors
2. 1 x UDMA ATA 100/66/33 connectors
3. 2 x UDMA ATA 133/100/66 connectors
4. 1 x FDD connector
5. 2 x IEEE1394a connectors (supports 3 ports)
6. 2 x USB 2.0/1.1 connector (supports 4 ports)
7. 3 x Cooling fan pin headers
8. 1 x Game/Midi connector

Expansion Slots
1. 1 PCI Express x 16 slot
2. 2 PCI Express x 1 slots
3. 3 PCI slots

Rear Panel I/O
1. 4 x USB 2.0/1.1 ports
2. 1 x RJ45 ports
3. 6 x Audio ports (4 x Line-out/ 1 x Line-in/ 1 x MIC)
4. 1 x Coaxial S/P-DIF out
5. 1 x Optical S/P-DIF out
6. PS/2 Keyboard/ Mouse
7. 1 x COM port connector
8. 1 x LPT port

Form Factor
1. ATX form factor; 24.4cm x 24.4cm
Release date Australia
September 2nd, 2005
Manufacturer code:
GA-8I945G-MF
Manufacturer Code
GA-8I945G-MF
Manufacturer
Product ID
1475511
