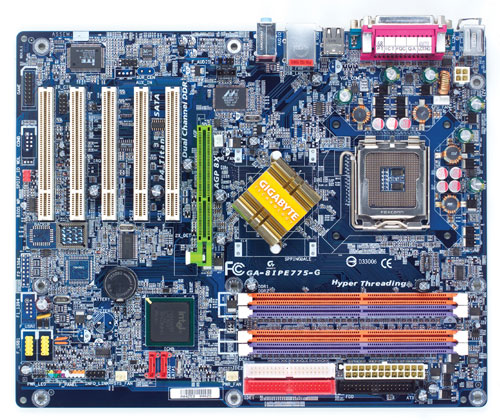

Gigabyte Motherboard LGA775 GA-8IPE775-G

Sorry, this product is no longer available to order

Here are some other products you might consider...

Gigabyte Motherboard LGA775 GA-8IPE775-G

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!
Sorry, this product is not currently available to order


GA-8IPE775-G is the smart solution for the latest LGA775 Intel® Pentium® 4 processor with 800MHz FSB and Hyper-Threading Technology. Powered by the Intel® highest performance 865PE chipset and a variety of cutting edge technologies, GA-8IPE775-Gis designed to be the full function platform with excellent performance. The architecture of 800MHz FSB, AGP 8x, Dual Channel DDR 400 provides promising framework for excellent performance. This platform features Gigabit Network connection and delivers optimized network throughput & platform performance. The Serial ATA, USB 2.0 are integrated to provide superior I/O performance and data protection. GA-8IPE775-G will definitely delivers the uppermost platform with unprecedented computing power and rock-solid stability.

Supports 800MHz FSB Intel® Pentium® 4 Processor with HT Technology
Leveraging the Intel® 865PE chipset to support P4 CPUs on 800MHz FSB, Intel Hyper-Threading Technology and advanced features, the GA-8IPE775-G delivers a full-value, highest performance solution for today's most demanding tasks.

Dual Channel DDR 400 Memory Architecture
With double the bandwidth of your system memory and hence boosts the system performance to out perform any memory existing solutions in the market. The GA-8IPE775-G allows you to handle memory-intensive tasks with ease

AGP 8X Graphics Interface
AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.

GIGABYTE C.I.A. (CPU Intelligent Accelerator) Technology
GIGABYTE C.I.A (CPU Intelligent Accelerator) is designed to detect CPU loading during software program’s executing, and automatically adjust CPU computing power to maximize system performance. During loading high CPU resources consumption tasks, such as video and audio encoding programs or thrilling 3D games, the CPU requires more CPU computing power; when C.I.A is enabled, it will detect the current CPU loading and automatically accelerate the CPU computing performance, thus allow programs to execute faster and smoother. On the other hand, when the programs are terminated, the CPU will return back to its initial status.

GIGABYTE M.I.B. (Memory Intelligent Booster) Technology
GIGABYTE M.I.B (Memory Intelligent Booster) technology is specially designed to maximize memory performance and boost memory bandwidth up to 10% by optimizing data transmission among CPU, north bridge chipset and memory. The innovative GIGABYTE M.I.B technology shortens memory latency time and enhances system performance without sacrificing stability.

Gigabit Ethernet Connection
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.

Serial ATA Interface
Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.

GIGABYTE Xpress3 Series Software
The Xpress3 series software includes 3 unique software features, 1) Xpress Install for easier driver installation ,2) Xpress BIOS Rescue for restoring BIOS back to its original stage if the BIOS is crashed, 3) Xpress Recovery a revolutionary software feature that backup or restore system files thru BIOS function

High quality 8-channel audio with UAJ function
Featuring incredible sound quality especially with its S/PDIF-IN/OUT function that enables users to experience high quality audio for multimedia entertainment. With new Universal Audio Jack (UAJ) feature users won't have the worries about how to install speakers correctly.


1. LGA775 for Intel® Pentium® 4 processor.

1. North Bridge : Intel® 865PE MCH
2. South Bridge : Intel® ICH5
3. Integrated Peripherals :

1. Marvell Gigabit Ethernet Controller
2. Realtek ALC850 CODEC

Front Side Bus
1. 800 / 533/400 MHz FSB

1. Type: Dual Channel DDR 400 / 333 / 266 support
2. Max capacity: 4 GB (Please read FAQ for further information)
3. DIMM slots: 4

Internal I/O Connectors
1. 2 x Serial ATA ports
2. 2 x UltraDMA 100/66 Bus Master IDE
3. 1 x FDD
4. 2 x USB 2.0 (supports 4 ports by cable)
5. CD/AUX in
6. 1 x Game port pin header

Expansion Slots
1. 1 x AGP 8x slot
2. 5 x PCI slots (PCI 2.3 compliant)

Rear Panel I/O
1. 4 x USB 2.0 ports
2. 1 x RJ45 Lan port
3. 1 x LPT port
4. 2 x COM ports
5. 3 x Audio ports (Line-in / Line-out / MIC)
6. 2 x PS/2 ports (Keyboard/Mouse)

Form Factor
1. ATX
2. 30.5cm x 24.4cm

H/W Monitoring
1. ITE 8712F
2. System health status auto-detect and report by BIOS
3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.

1. 3M bit flash ROM, Award BIOS

Other Features
1. Xpress Install
2. Xpress Recovery
3. Xpress BIOS Rescue
4. EasyTune 4
5. @BIOS
6. Q-Flash

Bundle Software
1. Norton Internet Security 2004

1. Norton Anti Virus
2. Norton Personal Firewall
3. Norton Privacy Control
4. Norton Parental Control
5. Norton Spam Alert

2. GIGABYTE Windows Utility Manager
3. Adobe Acrobat Reader
Release date Australia
August 31st, 2005
