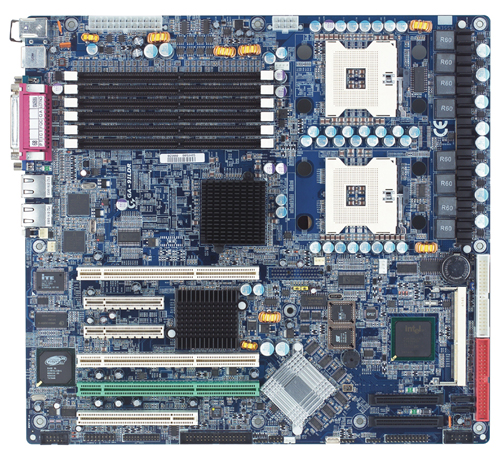

Gigabyte Motherboard Server Dual Xeon GA-9ILDR

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!
Unavailable
Sorry, this product is not currently available to order

Description

Processor Supported
* Supports Dual New Intel® Xeon(Nocona) CPUs up to 4.0 GHz
* Supports 800 Mhz FSB
* Socket 604

ChipSet Description
* Intel® E7520 MCH
* Intel® ICH5R IO controller hub
* Intel ®6700PXH 64 bit PCI-X hub

System Memory
* 6 x 184-pin DDR-266/333 DIMM sockets
* Supports 6 ECC Registered DIMM
* Supports DDR-266 up to 24GB and DDR-333 up to 16GB capacity
* Suppports ECC

System BIOS
* Pnoenix AWARD BIOS with 4Mb flash RAM
* ACPI1.1,DMI,WFM, PXE, Plug & Play, AC Power Recovery

Integrated Video Controller
* Build in ATI® Rage XL with 8M SDRAM on board

Integrated IDE / SCSI Controller
* Inte® ICH5R chipset
* LSI® 1030 chipset

Support RAID Function
* LSI®1030 chipset supports RAID 1, RAID 1E
* Support for Zero-Channel RAID w/ LSI MegaRAID 320-0 ZCR Card (Card NOT included) with Green PCI-X Slot on board

Integrated Network
* Dual Broadcom® BSM5721 Gigabit Ethernet

Integrated Super I/O Controller
* 1 x Keyboard and 1 x mouse PS/2 port
* 2 x USB 2.0 connectors
* 2 x Gigabit Ethernet LAN port
* 1 x LPT port
* 1 x VGA port

Expansion Slot
* 2 x PCI-X slot supports 64/100M H z (3.3V)
* 1 x PCI-X slot supports 64/133M H z (3.3V)
* 2 x PCI-E slot by 4 x 1 and by 4 x 1
* 1 x PCI slot support 32/33M H z

Board Dimension
* EATX Form Factor
* 12”W x 13” D
Release date Australia
August 31st, 2005
Manufacturer code:
GA-9ILDR
Manufacturer Code
GA-9ILDR
Manufacturer
Product ID
1475341
