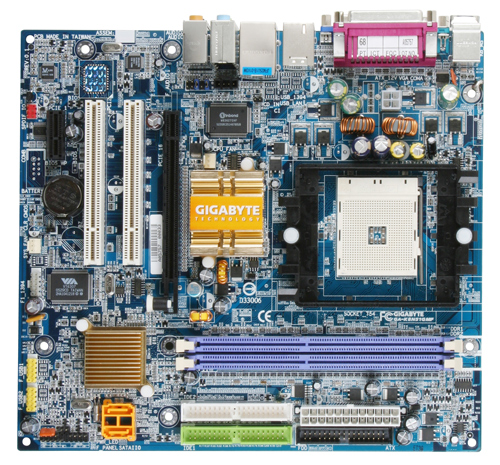

Powered by the innovative NVIDIA GeForce 6100 GPU and nForce410 MCP, GA-K8N51GMF provides unparalleled graphics features and cutting-edge security in a low profile case. The NVIDIA GeForce 6100 GPU delivers ultra-realistic graphics effects, unmatched multimedia functionality, and the performance you expect for an incredible PC experience. The advanced NVIDIA nForce410 MCP delivers cutting-edge technology such as RAID and MediaShield storage, 10/100 Ethernet, and SATA 3Gb/s to this platform. Coupled with the remarkable performance available from AMD Athlon64 technology and the board's extensive functionality, GA-K8N51GMF delivers best value to desktop platform in home & office environments.
AMD Athlon64 / Sempron Processor
The leading-edge performance and unparallel technology of the 8th generation AMD Athlon64 processor has built its strength on the well-known AMD64 framework which consisted of 64-bit computing platform, HyperTransport Technology, and integrated memory controller. With improved HyperTransport interface and DDR400, the innovative processor design ensures superior performance on mission critical business applications.
NVIDIA GeForce 6100 GPU
The brand new NVIDIA 6100 GPU features CineFX 3.0 Engine. This unique combination of 6100 GPU creates a single motherboard featuring a world-class DX9, Shader Model 3.0 GPU for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
NVIDIA PureVideo DVD decoder software delivers optimal picture clarity, smooth video, and precise image scaling for all video content in home theater applications.
PCI Express Interface
Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
SATA 3Gb/s & RAID
This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA RAID allows multi-disk designs to be set up as RAID 0,1 based on users’ priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
8 Channel Audio with UAJ
With the innovative function of Universal Audio Jack (UAJ) of ALC 850 AC97 codec, this platform provides superior 8-Channel stereo sound enjoyment without the stress of incorrect installation.
1. Socket 754 supports AMD Athlon64 / Sempron Processor
1. NVIDIA® GeForce 6100 and NVIDIA nForce 410
2. Super I/O: Winbond W83627 chip
3. Integrated peripherals
1. VIA VT 6307 IEEE1394 controller
2. Realtek 8201 10/100 LAN PHY chip
3. Realtek ALC850 Audio Codec
1. Type: DDR400/ 333/ 266 -184pin
2. Max capacity: Up to 2GB by 2 DIMM slots
Internal I/O Connectors
1. 2 X Serial ATA 3Gb/s connectors
2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
3. 1 x FDD connector
4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
5. 1 x IEEE 1394 connector (supports 1 port)
6. 2 x cooling fan pin headers
7. S/P DIF in/out connector
8. CD in connector
9. 1 x Com port connector
1. 1 x PCI-Express X16 slot
2. 1 x PCI-Express X1 slot
3. 2 x PCI slots (PCI 2.3 compliant)
Rear Panel I/O
1. PS/2 Keyboard/ Mouse
2. 1 x VGA port
3. 1 x LPT port
4. 4 x USB 2.0/1.1 ports
5. 1 x RJ45 port
6. 1 x IEEE1394 port
7. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connectors
1. ATX power connector and ATX 12V connector
1. Micro-ATX form factor
2. 24.4 x 22.0 cm
