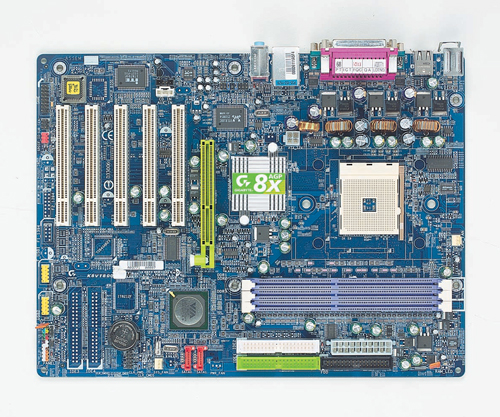

Supporting the revolutionary AMD Athlon 64 processor, GA-K8VT800 delivers the most cost effective platform and brings new levels of performance and features to the desktop systems. The brand new AMD Athlon 64 processor is furnished with unprecedented framework consisted of AMD\'s 64-bit computing platform, HyperTransport Technology, and the CPU-integrated memory controller to boost the overall performance. Accompanied with the innovative designs of Athlon 64, the advanced VIA K8T800 chipset and Gigabyte\'s unique technology also contribute to the functionality and stability of this platform. The high speed Fast Ethernet interface is equipped for establishing the efficient broadband connection to the Internet. The Universal Audio Jack (UAJ), a brand new audio feature, is designed to provide better user experience during installation of audio devices. With up to 150MB/s data transfer rate, the Serial ATA interface provides superior input/output performance and data protection. GA-K8VT800 is the great choice for full-function platform applied in home and office environment.
Specifications:
Dimensions (WxDxH) 12 in x 9.1 in
Chipset VIA K8T800
Form Factor ATX
Product Identification
Manufacturer Gigabyte Technology
Model GA-K8VT800
Product Line Gigabyte
Expansion and Connectivity
Expansion Slots Total (Free) 1 (1) x processor - Socket 754
3 (3) x memory - DIMM 184-pin
1 (1) x AGP 8x (1.5 V)
5 (5) x PCI
Software / Accessories
Software Included Norton Internet Security 2003, Adobe Acrobat Reader, drivers & utilities, EasyTune 4, Face-Wizard
Cables Included 1 x IDE cable
1 x floppy cable
1 x USB cable
2 x Serial ATA cable
Processor Support
Socket Type Socket 754
Compatible Processors Athlon 64
Data Bus Speed 800MHz
Installed Processors (Max Supported) 0 (1)
Memory Support
Supported Memory Types DDR SDRAM
Supported Memory Speeds PC2100, PC2700, PC3200
Max Supported Memory Size 3GB
Integrated Devices
Hardware Features DualBIOS
BIOS and Overclocking Features
BIOS Features ACPI support, DMI support
Hardware Monitoring CPU core temperature, CPU fan tachometer, system voltage, CPU core voltage
BIOS Type Award
Wake-On Functions Keyboard wake up, suspend to RAM (STR), wake on LAN (WOL), mouse wake up, wake on USB port
Storage
RAID Level RAID 0, RAID 1
Controller Interface Type Serial ATA-150
Storage Controller RAID
Storage Controller (2nd) IDE - Ultra ATA 133
Controller (2nd) Interface Type DMA/ATA-133 (Ultra) Fast Drives
