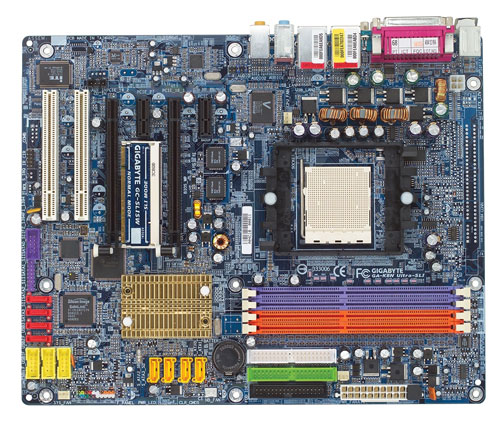

Gigabyte Motherboard Socket 939 GA-K8N UltraSLI

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is no longer available to order

Description

Processor
1. Socket 939 supports AMD Athlon64/ 64 FX

Chipset
1. NVIDIA nForce4 SLI MCPs (media and communication processors)
2. Super I/O: ITE IT8712 chip
3. Integrated peripherials

1. Silicon Image sil 3114 controller
2. T.I. IEEE1394b controller
3. Marvell 8053 Gigabit Ethernet controller
4. CICADA8201 Gigabit LAN PHY chip
5. Realtek ALC850 Audio AC'97 Codec

Memory
1. Type: Dual channel DDR400/ 333/ 266 -184pin
2. Max capacity: Up to 4GB by 4 DIMM slots

Internal I/O Connectors
1. 8 x Serial ATA connector (4 X Serial ATA 3.0Gb/s)
2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
3. 1 x FDD connector
4. 3 x USB 2.0/1.1 connectors (supports 6 ports)
5. 2 x IEEE 1394b connectors (supports 3 ports)
6. 3 x cooling fan pin headers
7. CD in

Expansion Slots
1. 2 x PCI-Express X 16 slot, supports two PCI-Express interface Graphics cards with SLI mode
2. 2 x PCI-Express X 1 slots
3. 2 x PCI slots (PCI 2.3 compliant)

Rear Panel I/O
1. 4 x USB 2.0/1.1 ports
2. 2 x RJ45 ports
3. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connector
4. Coaxial S/PDIF input/ output function
5. PS/2 Keyboard/ Mouse
6. 1 x COM port
7. 1 x LPT

CPU/AGP/DIMM setting
1. CPU HT / Multiplier / Vcore Voltage adjustable via BIOS
2. PCI-ExpessX16 Voltage / Clock adjustable via BIOS
3. DIMM Voltage / Clock adjustable via BIOS

Power
1. ATX power connector and ATX 12V connector
2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch

Form Factor
1. ATX form factor
2. 30.5 x 24.4 cm

H/W Monitoring
1. System health status auto-detect and report by BIOS
2. Hardware detecting and reporting for case open, CPU voltage, and fan speed

BIOS
1. 2 X 4M bit flash ROM, Award BIOS

Other Features
1. NVIDIA SLI multi-GPU support
2. Support NVIDIA Firewall
3. Norton Internet Security
4. Download Center
5. XpressTM Installation
6. XpressTM Recovery
7. Q-FlashTM
8. @BIOSTM
Release date Australia
August 31st, 2005
Manufacturer code:
GA-K8N ULTRASLI
Manufacturer Code
GA-K8N ULTRASLI
Manufacturer
Product ID
1475343
