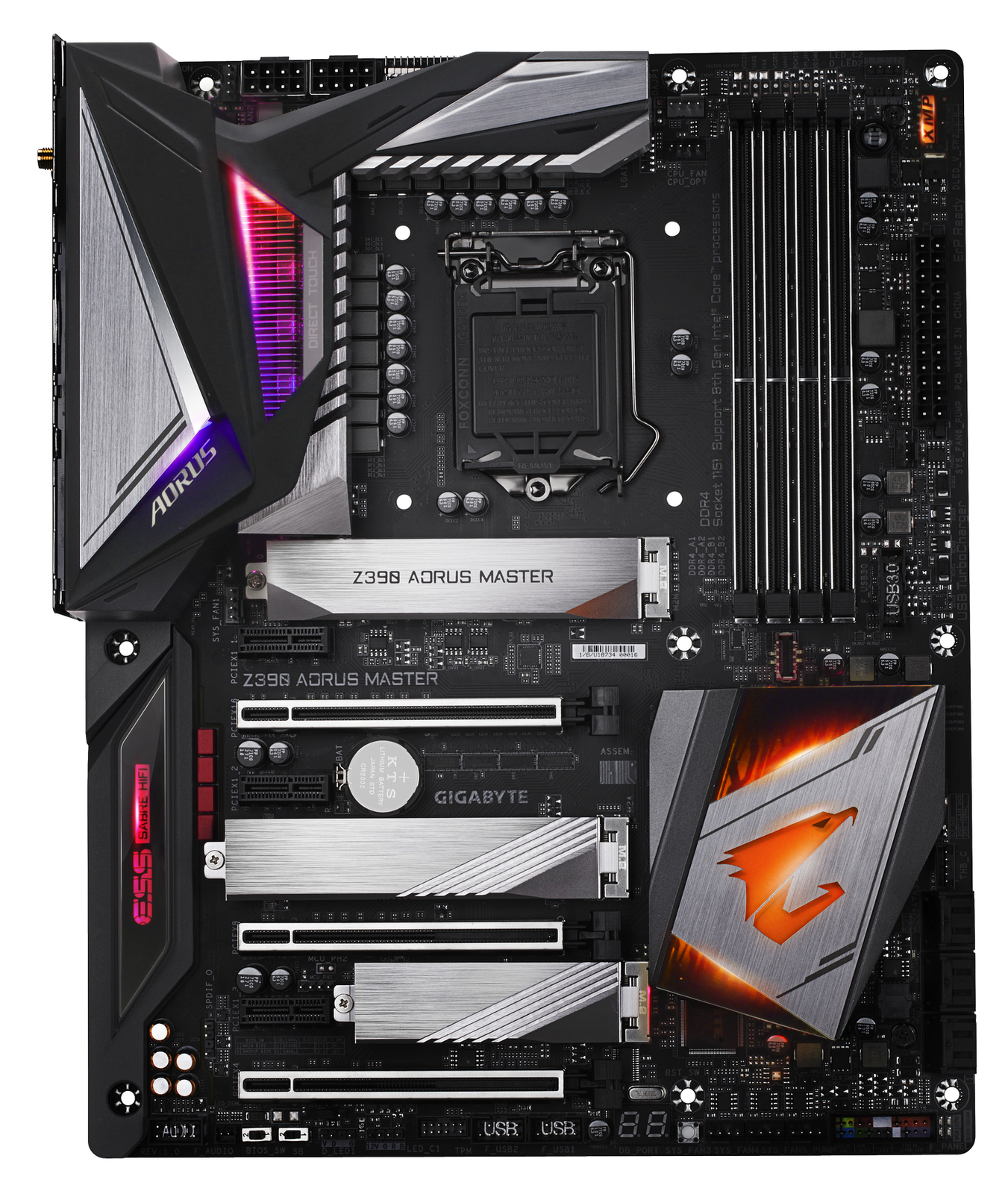

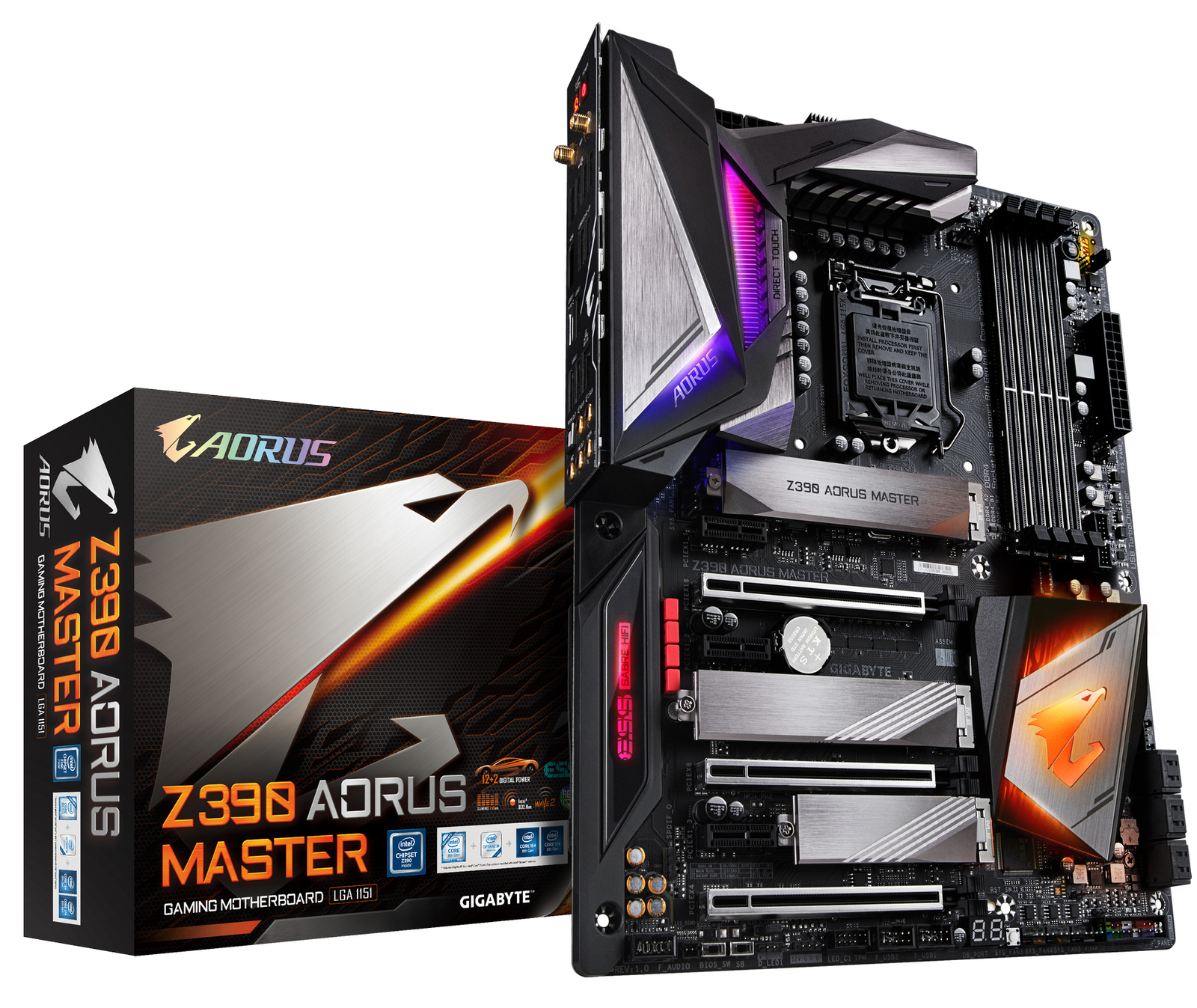

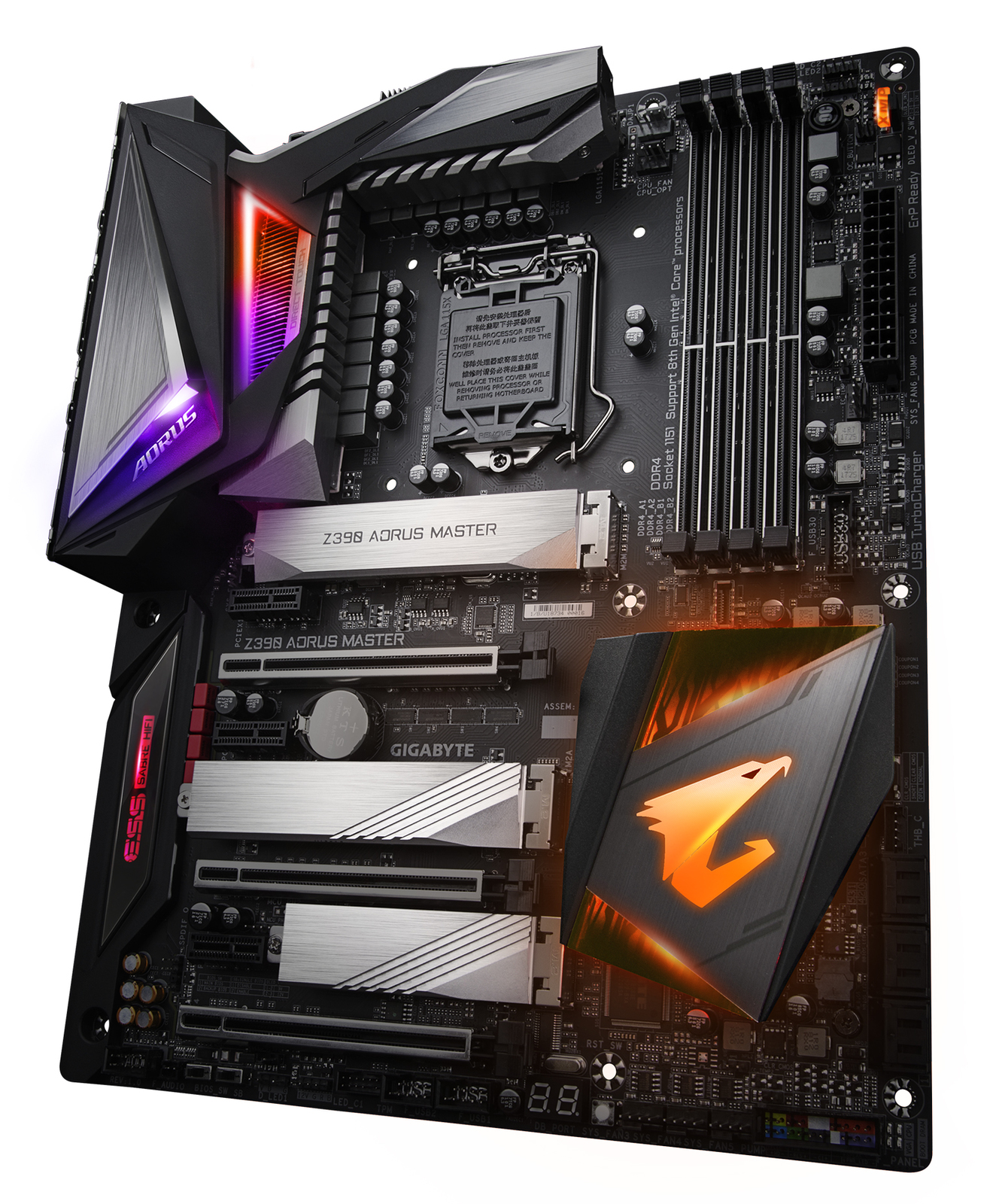

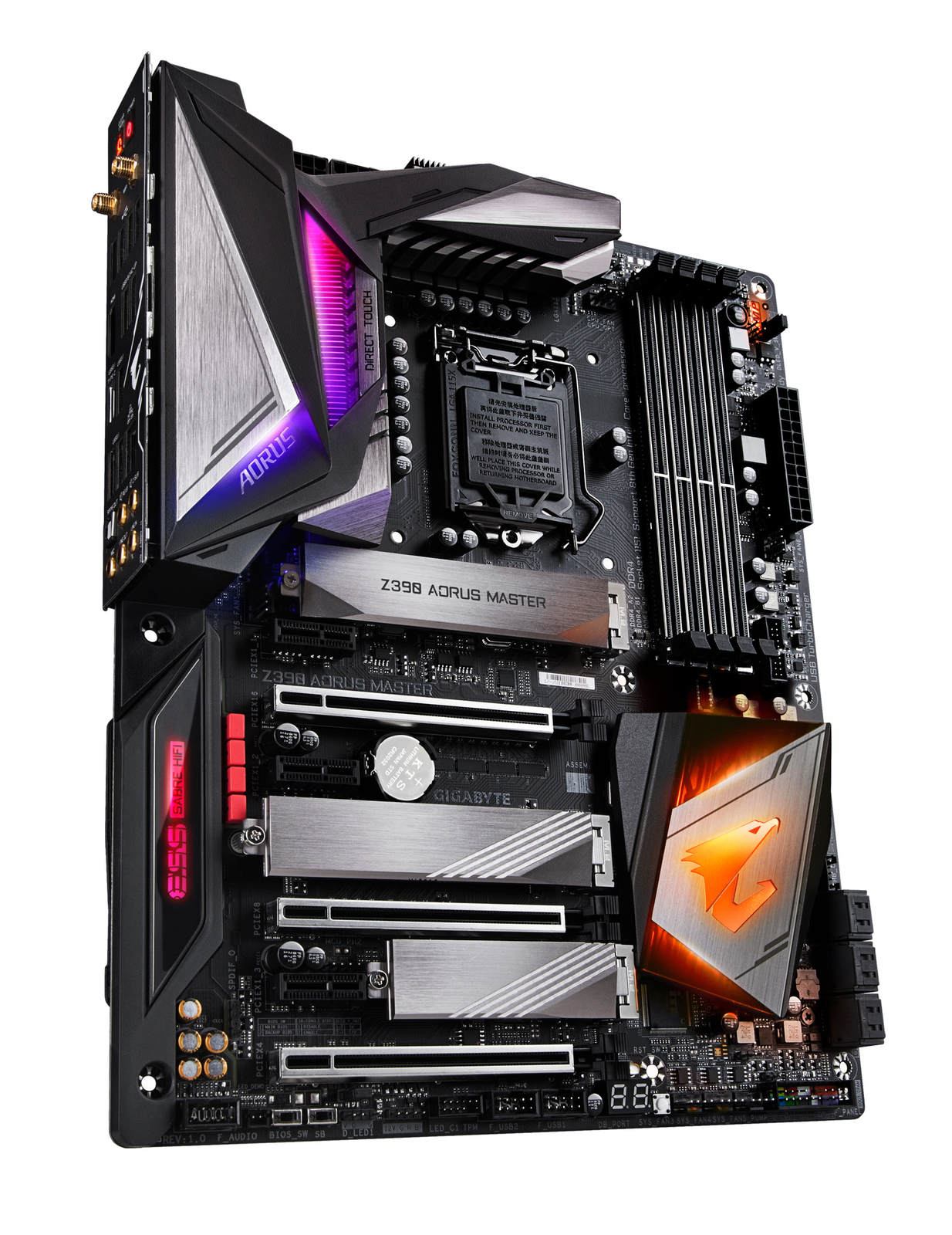

Intel Z390 AORUS Motherboard with 12 Phases IR Digital VRM, Fins-Array Heatsink, RGB Fusion, 802.11ac Wi-Fi, Triple M.2 with Thermal Guards, ESS SABRE HIFI 9118, Intel® GbE LAN with cFosSpeed, Front & Rear USB 3.1 Gen 2 Type-C

• Supports 9th and 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® Optane™ Memory Ready
• 12 Phases IR Digital VRM Solution with PowIRstage
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
• Onboard Intel® CNVi 802.11ac 2×2 Wave 2 Wi-Fi
• 125dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9118 DAC with WIMA audio capacitors
• USB TurboCharger for Mobile Device Fast Charge Support
• Intel® Gigabit LAN with cFosSpeed
• RGB FUSION with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Front USB 3.1 Gen 2 Type-C™ Header
• Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard
• USB DAC-UP 2 with Adjustable Voltage
• CEC 2019 Ready, Save Power With a Simple Click

DESIGN CONCEPT
DOMINANT IN DARKNESS
In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

AORUS PERFORMANCE
12 Phase Digital Power Design
40A IR 3553 for each vCore Phase
High current capacity MOSFET
Lower temperature
Server level reliability
Z390 AORUS MASTER motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A. These 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core™ processors.

• Completely new VRM design for 8-core 9th Gen Intel® Core™ processors
• Enlarged power plane and multiple true power phases ensure a stable gaming experience

Advanced Thermal Design
Z390 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fin-Arrays heatsink, a heatpipe, and a thermal baseplate, to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.

Fins-Array Heatsink with Direct Touch Heatpipe and High Thermal Conductivity Pad
Z390 AORUS MASTER uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS to heatsink and fins.
By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7× more heat compared to traditional thermal pads in the same time period.

1. Fins-Array
2. Direct Touch Heatpipe
3. High Thermal Conductivity Pad
4. Thermal Baseplate

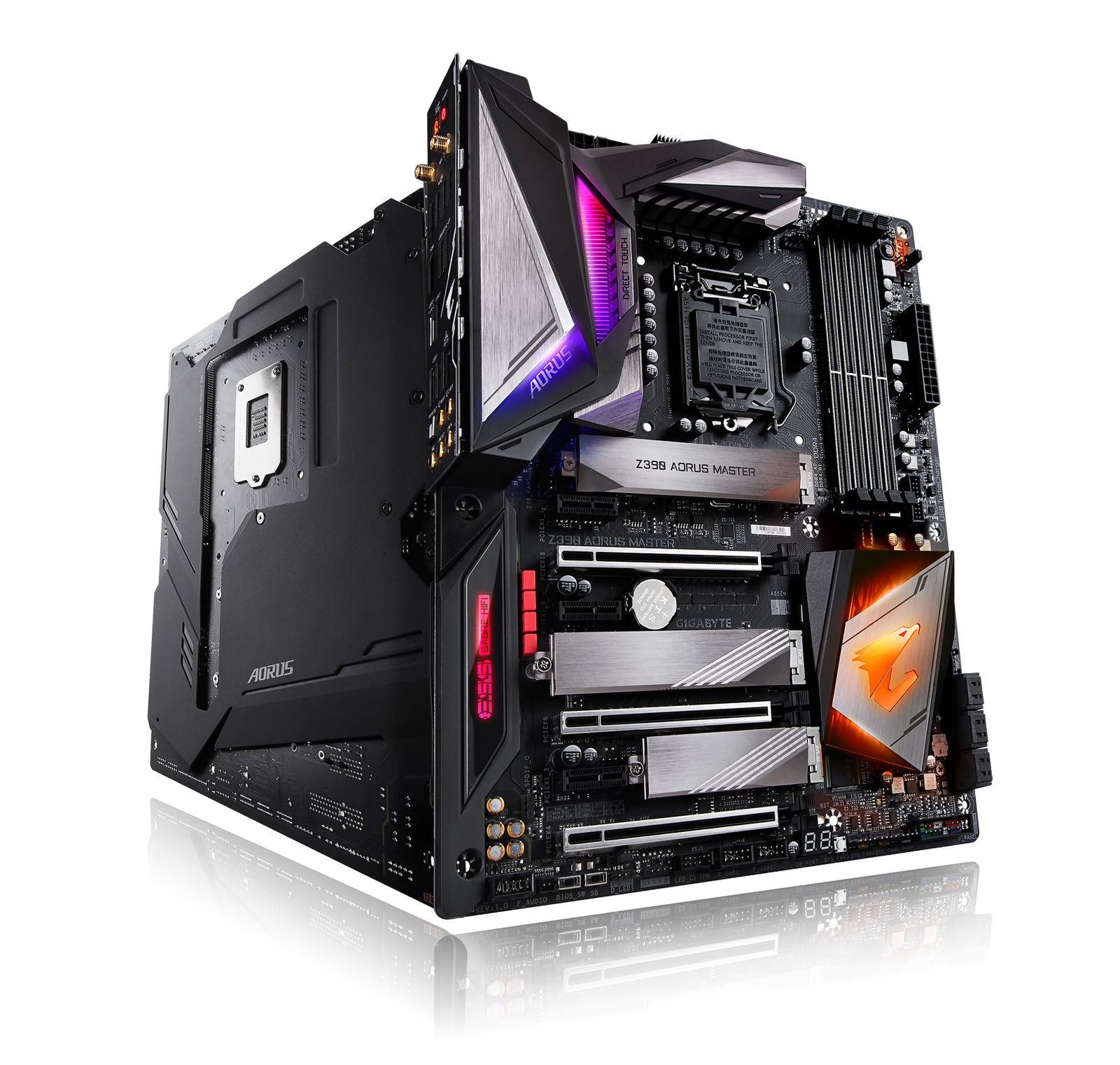

Base plate + I/O Shield Armor
Durable design and easy installation

• With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.
• With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
• Integrated Power/Reset/Clear CMOS buttons on the I/O shield enable users easier debugging and operation.

Triple PCIe Gen3 x4 M.2

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Extreme Performance with Gen3 x4 NVMe PCIe SSDs
Z390 AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Support for DDR4 XMP Up to 4133MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

What is XMP?
DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated
AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.

AORUS AUDIO

ESS SABRE reference DAC ES9118

ESS SABRE reference DAC (ESS 9118)
Hypertream Dynamic Range (SNR 125dB)
High-Res music (32bit, 384kHz PCM)
Super low THD+N (THD+N –112db)

ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

No More Confusion
During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

AORUS CONNECTIVITY
Smashes the GbE Barrier!
Integrated Intel® 802.11ac Wave2 CNVi WIFI + Bluetooth 5
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides 4× range over BT4.2 and with faster transmission.

USB TurboCharger
GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up to 50% in less than 30 minutes*. By connecting the Front USB 3.0 Type-A chassis cable to our motherboard, users can utilize the USB TurboCharger to recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

AORUS STYLE
RGB Fusion
With AORUS Motherboards, RGB Fusion is even better with Addressable LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z390 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion with Addressable LEDs comes with new patterns and various speed settings with more to come.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Specs..

CPU
Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer to “CPU Support List” for more information.)

Chipset
Intel® Z390 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to “Memory Support List” for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

• Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Audio
Realtek® ALC1220-VB codec

• The front panel line out jack supports DSD audio.

ESS SABRE 9118 DAC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module
Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate

• Actual data rate may vary depending on environment and equipment.

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)

• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

• The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

• The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.

3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4/x2 SSD support, Intel® Hybrid SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

• Refer to “1–9 Internal Connectors,” for the installation notices for the PCIEX4, M.2 and SATA connectors.

Intel® Optane™ Memory Ready

Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

USB
Chipset:
1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 × 24-pin ATX main power connector
2 × 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x Addressable LED strip headers
2 x Addressable LED strip power select jumpers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x OC button
1 x reset button
2 x temperature sensor headers
2 x BIOS switches
1 x Clear CMOS jumper
Voltage Measurement Points

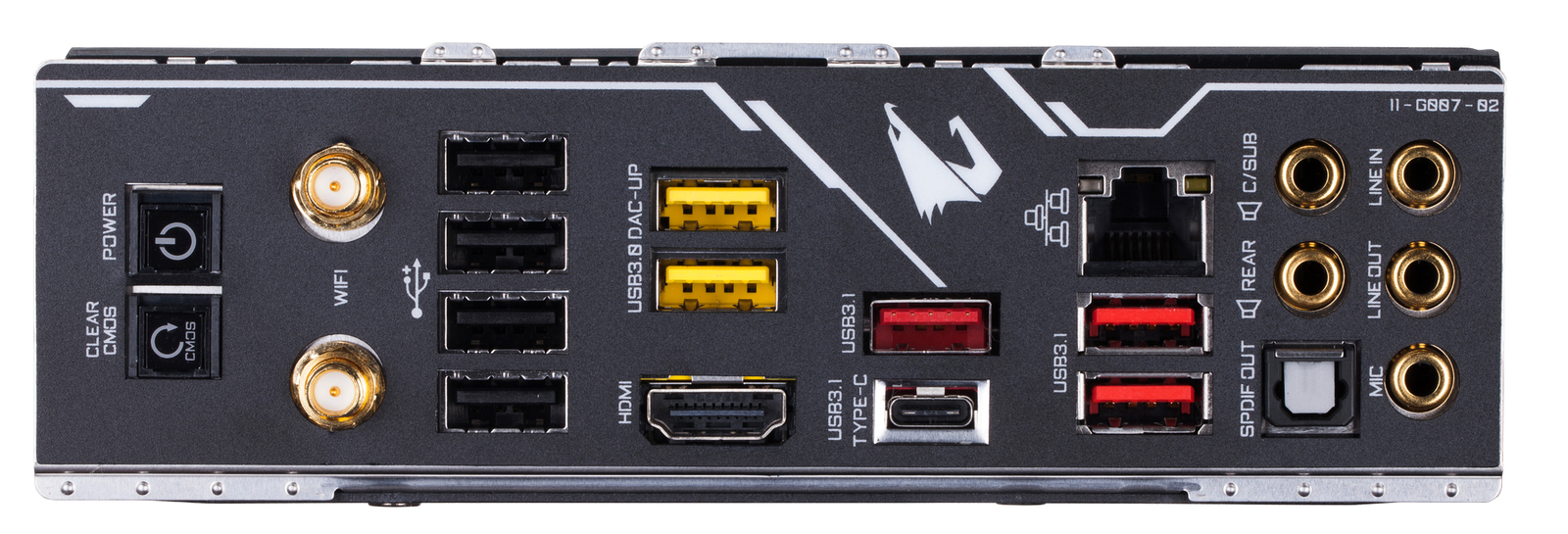

Back Panel Connectors
1 x Power/Reset button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3 x USB 3.1 Gen 2 Type-A ports (red)
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

I/O Controller
iTE® I/O Controller Chip

**H/W Monitoring **
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control

• Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
2 × 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center

• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
USB DAC-UP 2
USB TurboCharger
Support for Q-Flash
Support for Xpress Install

Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)

Operating System
Support for Windows 10 64-bit

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
