PC Parts & Components:

Gigabyte Z390 Aorus Pro WIFI Motherboard

Sorry, this product is not currently available to order

Here are some other products you might consider...

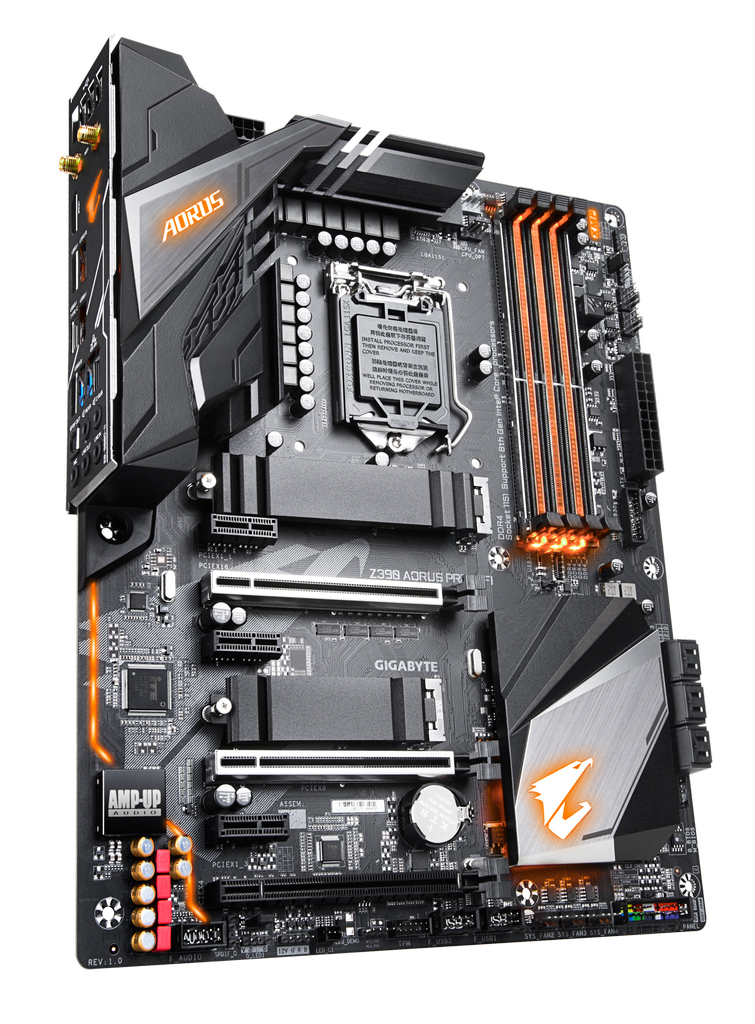

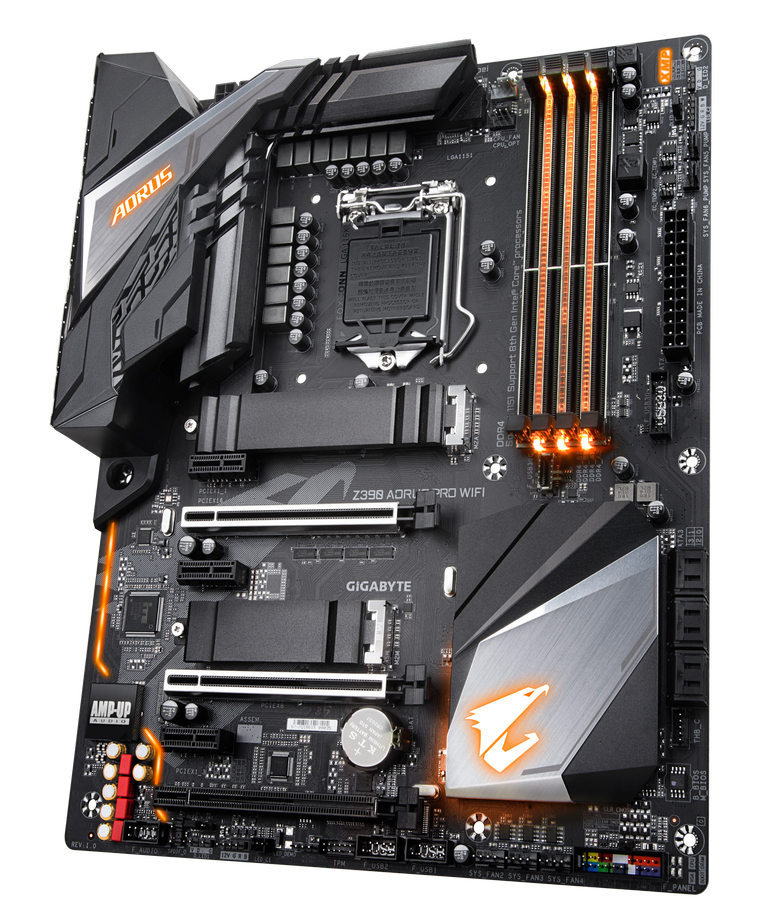

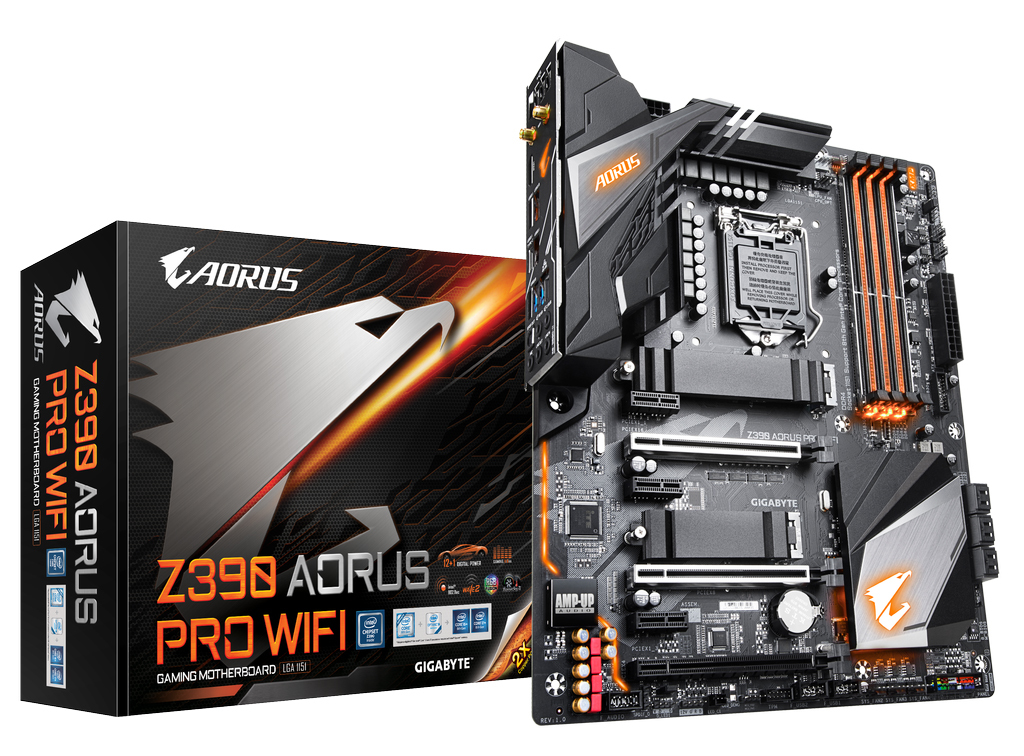

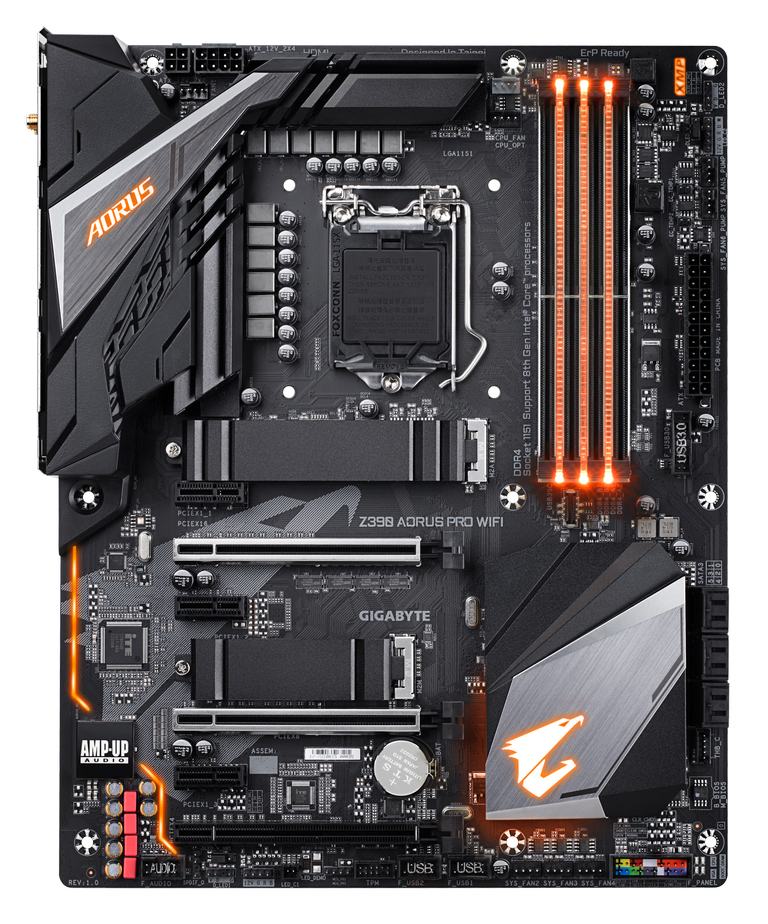

Gigabyte Z390 Aorus Pro WIFI Motherboard

Click to share your rating 7 ratings (4.6/5.0 average) Thanks for your vote!
Unavailable
Sorry, this product is not currently available to order

Customer reviews

4.6 out of 5 stars Based on 7 Customer Ratings

5 star
(6)
4 star
(0)
3 star
(0)
2 star
(1)
1 star
(0)
Write a Review
"Great z390 for anyone looking for quality"
5 stars"
Purchased on Mighty Ape

Really good motherboard, comes with a lot of extras. Perfect for anyone looking for a high end Z390 board.

1 out of 1 people found this review helpful.
"Great product, works perfect,fast postage"
5 stars"
Purchased on Mighty Ape

Motherboard works perfect, wifi great and postage was fast. My son loves his gaming computer now.

"Great Motherboard."
5 stars"
Purchased on Mighty Ape

Rgb on motherboard looks great as well as lots of rgb headers. Really well designed and made and comes with lots of extras in box.

Description

Intel Z390 AORUS Motherboard with 12 Phases Digital VRM Solutions, Multi-cuts Heatsinks with Heatpipe, RGB Fusion, 802.11ac Wi-Fi, Dual M.2 with Thermal Guards, Intel® GbE LAN with cFosSpeed

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 12+1 Phases Digital VRM Solution with DrMOS
  • Advanced Thermal Design with Multi-cuts Heatsinks and Heatpipe
  • Onboard Intel® CNVi 802.11ac 2×2 Wave 2 Wi-Fi
  • ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Intel® Gigabit LAN with cFosSpeed
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 1 Type-C™ Header
  • Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guards
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • CEC 2019 Ready, Save Power With a Simple Click

DESIGN CONCEPT
FEROCIOUS TALONS
The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design.

AORUS PERFORMANCE
12*+1 Phases Digital Power Design
Z390 AORUS PRO motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core™ processors.

Optimized CPU Power Delivery Plane with 2× Copper PCB

Advanced Thermal Design
Z390 AORUS PRO WIFI uses very high performance thermal design by combining 2 heatsinks with Heatpipe, thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

Pre-installed I/O Shield
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.

Dual PCIe Gen3 x4 M.2

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Support for DDR4 XMP Up to 4133MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboards.

AORUS AUDIO
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

No More Confusion During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

High-End WIMA & Audio Capacitors

The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

AORUS CONNECTIVITY
Smashes the GbE Barrier!
Integrated Intel® 802.11ac Wave2 CNVi WIFI + Bluetooth 5
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides 4× range over BT4.2 and with faster transmission.

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

USB Type-C™ Front Panel Connector
Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 Gen1 drive or charging your new mobile device.

AORUS STYLE
RGB Fusion

With AORUS Motherboards, RGB Fusion is even better with Addressable LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z390 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion with Addressable LEDs comes with new patterns and various speed settings with more to come.

  • Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors on all supported products. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is a dedicated product setting, which can be fully customized by individual area with its own effects.

AORUS COOLING

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Solid Pin Power Connectors
Z390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

AORUS EXCELLENCE
GIGABYTE BIOS & Applications

New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites
Add constantly used items into the favorite menu for quick access.

Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.

Optimized Memory Installation Reminder
Displays correct installation reminder message when user installs two memory modules but runs single channel mode.

Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

CEC 2019 Ready
Save power with a simple click
CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

CPU
Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer to “CPU Support List” for more information.)

Chipset
Intel® Z390 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

  • Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Audio
Realtek® ALC1220-VB codec

  • The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module
Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate

  • Actual data rate may vary depending on environment and equipment.

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)

  • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

  • The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

  • Refer to “1–8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

USB
Chipset:
1 x USB Type-C™ port with USB 3.1 Gen 2 support on the back panel
1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
1 × 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
2 x temperature sensor headers

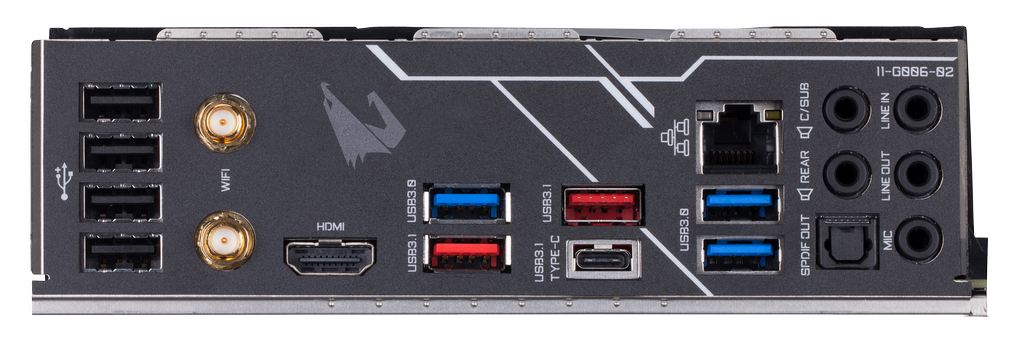

Back Panel Connectors
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 2 Type-A ports (red)
3 x USB 3.1 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

I/O Controller
iTE® I/O Controller Chip

**H/W Monitoring **
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control

  • Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
2 × 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center

  • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
Support for Q-Flash
Support for Xpress Install

Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed

Operating System
Support for Windows 10 64-bit

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Release date Australia
October 9th, 2018
Manufacturer code:
Z390-AORUS PRO WIFI
Warranty Period
36 months
Brand
Manufacturer
Motherboard Form Factor(s)
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported Memory Module Type(s)
  • DIMM
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
4133
Maximum Memory Size (GB)
64
Supported M.2 Module Codes
  • 22110
  • 2242
  • 2260
  • 2280
Box Dimensions (mm)
340x275x80
UPC
889523014882
Product ID
28446884
