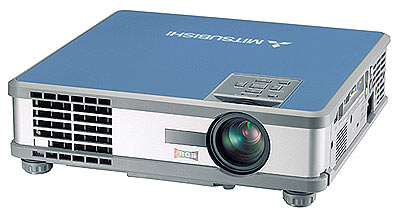

Mitsubishi LCD Projector XGA XL8U

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Sorry, this product is no longer available to order


The XL8U ColorView projector is the lightest weight model in Mitsubishi's ultraportable line, but is a real heavyweight when it comes to reliable, worry-free presentation performance. Plus, a versatile array of remote control password-activated security features helps to control projector usage and further protect your investment.


* Exclusive, award-winning ColorView Natural Color Matrix for rich, vivid colors
* sRGB color profile technology ensures standard uniform color reproduction regardless of the type of display used
* Remote control password-activated security features include: Block complete usage of the projector; permit usage of the projector, but not change the menu; or block changing of the splash screen.
* 2000 ANSI lumens for super bright presentations
* 350:1 contrast ratio for exceptional color depth and clarity
* User selectable gamma correction


* Display Technology: 0.7" Polysillicon LCD panel x3 (with micro lens array)
* Native Resolution: XGA 1024 x 768, 600 video lines Max. Resolution (compressed) SXGA 1280 x 1024
* Brightness: 2000 ANSI Lumens
* Contrast Ratio: 350:1 (full-on, full-off)
* Lens Throw Ratio: 1.8 ~ 2.2
* Projection Lens F = 1.8 ~ 2.1, f = 27 - 32 mm
* Zoom/Focus Adjustment Manual zoom and manual focus lens (zoom ratio 1.2:1)
* Picture Size: (4:3 aspect ratio) 40" ~ 300" (100" = 3.8 m)
* User Replaceable Lamp* 180 W NSH lamp; 2500 hour lamp life (low mode)
* Computer Compatibility VGA ~ SXGA 640 x 480 ~ 1024 x 768, compressed 1280 x 1024, Sync on green available
* Video Compatibility: NTSC/NTSC 4.43/PAL (including PAL-M, N)/SECAM/PAL-60/DVD (component) 480P (525i, 525P) HDTV-ready (1080i, 720P)
* Input Terminals:
RGB: mini D-sub 15 pin x 1; Video: RCA x 1 = S video x 1; PC/video audio; Stereo RCA x 1
* Output Terminals: RGB: mini D-sub 15 x 1
* Scanning Frequency: Horizontal: 15 - 100 kHz, Vertical: 50 - 120 Hz, Dot clock: max. 140 MHz
* Remote Control: Wireless, card-type remote. Full projector and computer control with USB mouse cursor control. Powerpoint page up/down via USB
* Audio/Line Audio-Out Mono 2W
* Communication Terminals: RS-23CC x 1 (direct command is available, DIN 8 pin) USB terminal for page up/down
* Power Consumption: 230 W Dimensions (W x H x D) 10.8 x 2.7 x 10.2" (274 x 69 x 260 mm) (Excluding stand)
* Weight: 5.9 lbs (2.7 kg)
* Power Supply: AC 100 ~ 240V / ±10%, 50/60 Hz
* Safety Approvals: CSA, CSA NRT L/C, FCC Class-B
Release date Australia
August 31st, 2005
