NZXT H500 - Tempered Glass Matte Black

Sorry, this product is no longer available to order

Here are some other products you might consider...

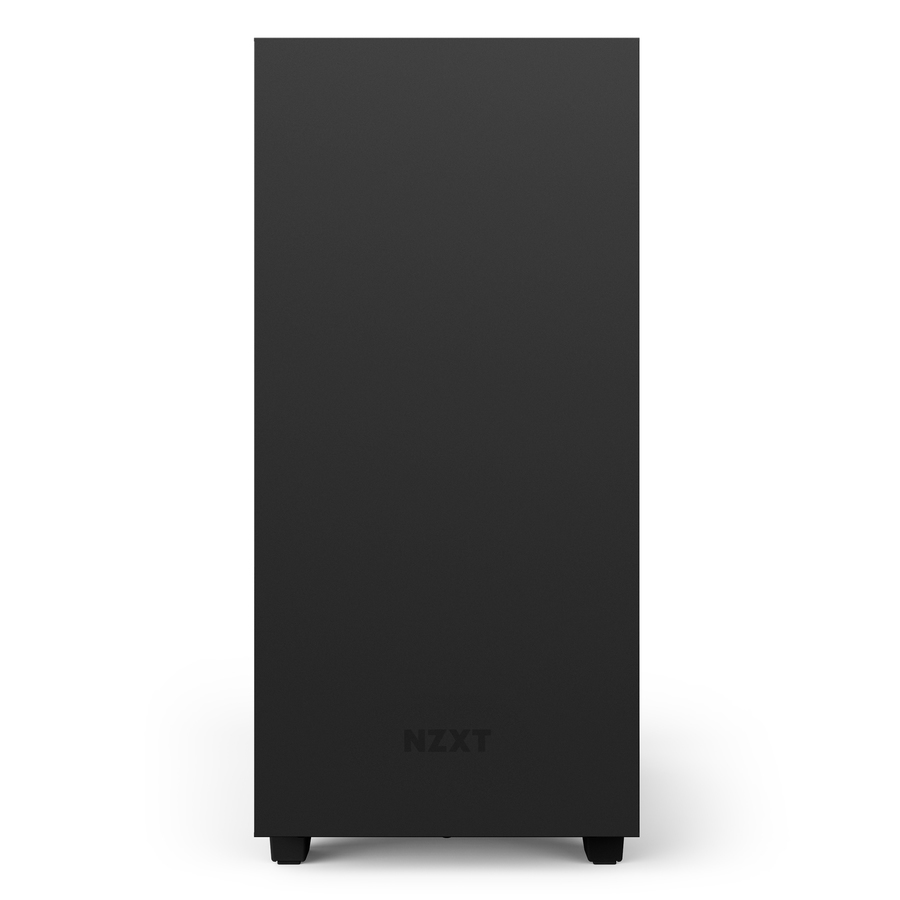

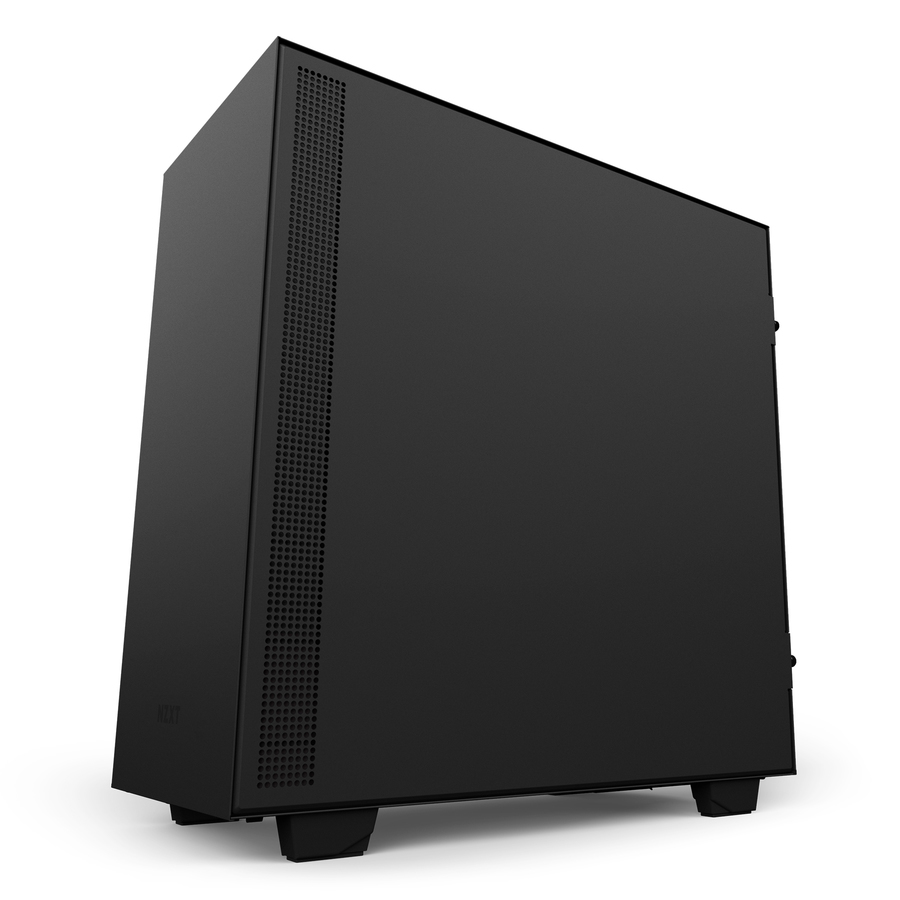

NZXT H500 - Tempered Glass Matte Black

Customer rating

Click to share your rating 1 rating (5.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is no longer available to order

Description

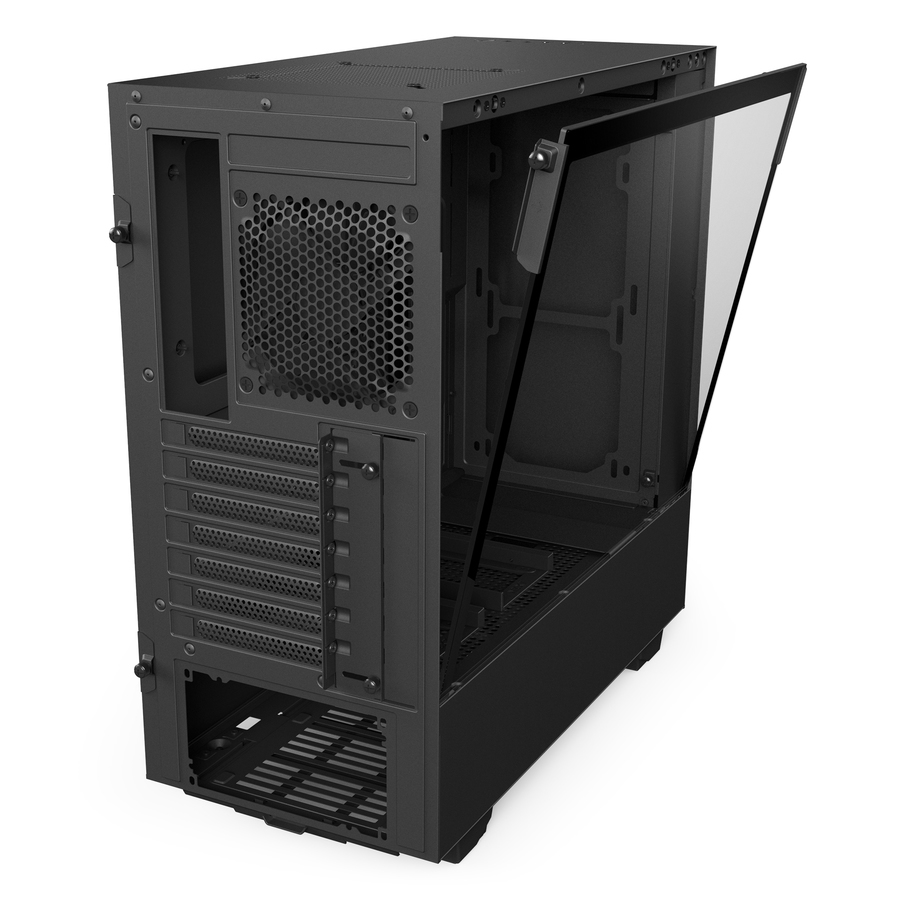

The H500 showcases the signature design of the NZXT H Series cases. The elegant all-steel construction includes the iconic cable management system to streamline building and upgrading your system. You can easily build a powerful system with plenty of options for storage and cooling. The H500 includes two Aer F fans and two RGB LED strips to accent the view of your build through the seamless tempered glass side panel.

  • Premium, all-steel construction with the sleek H Series design; available in four color combinations

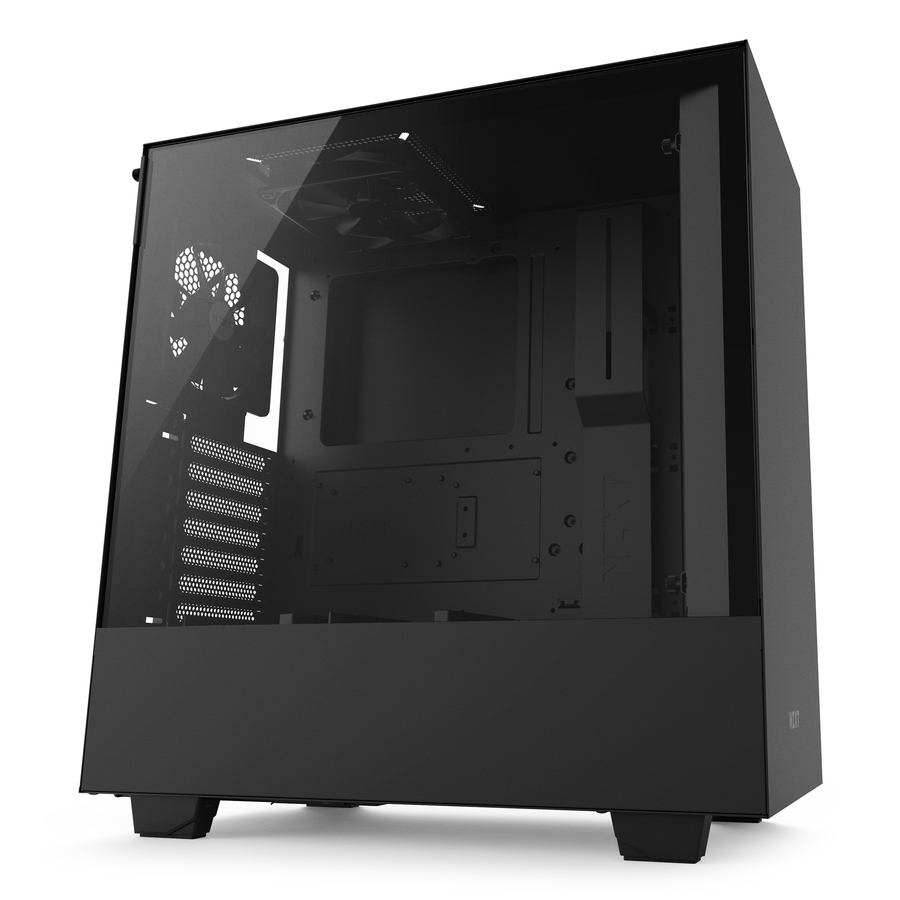

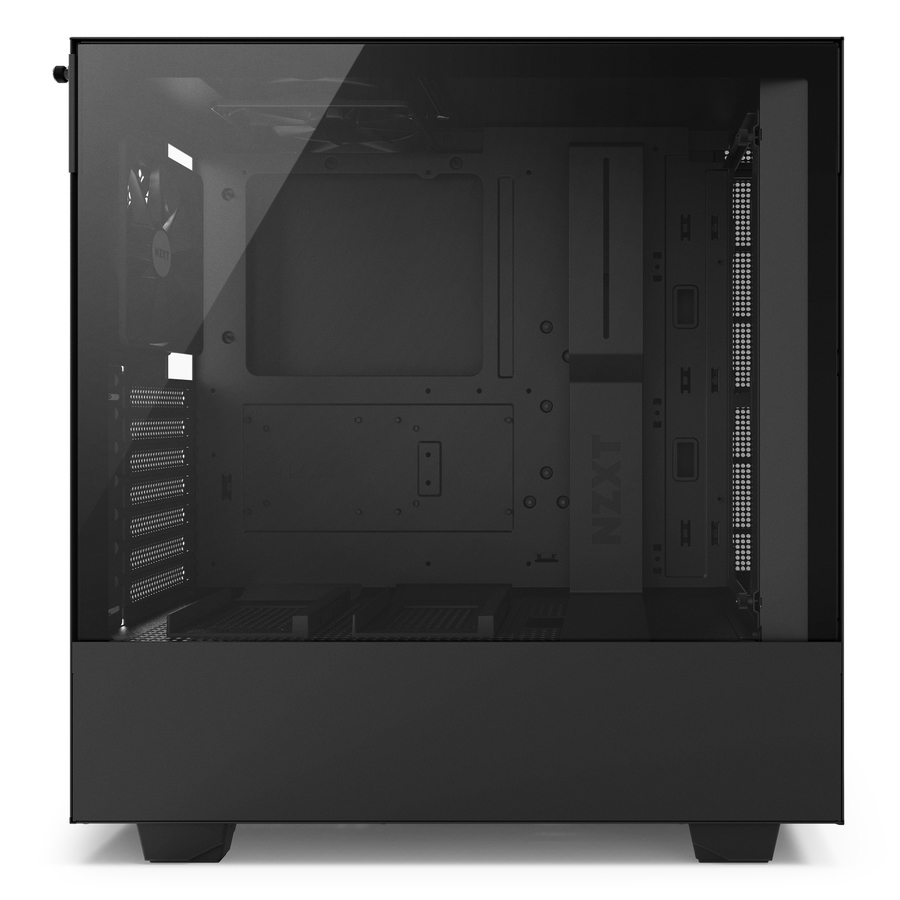

  • Tempered glass panel showcases your build with crisp clarity

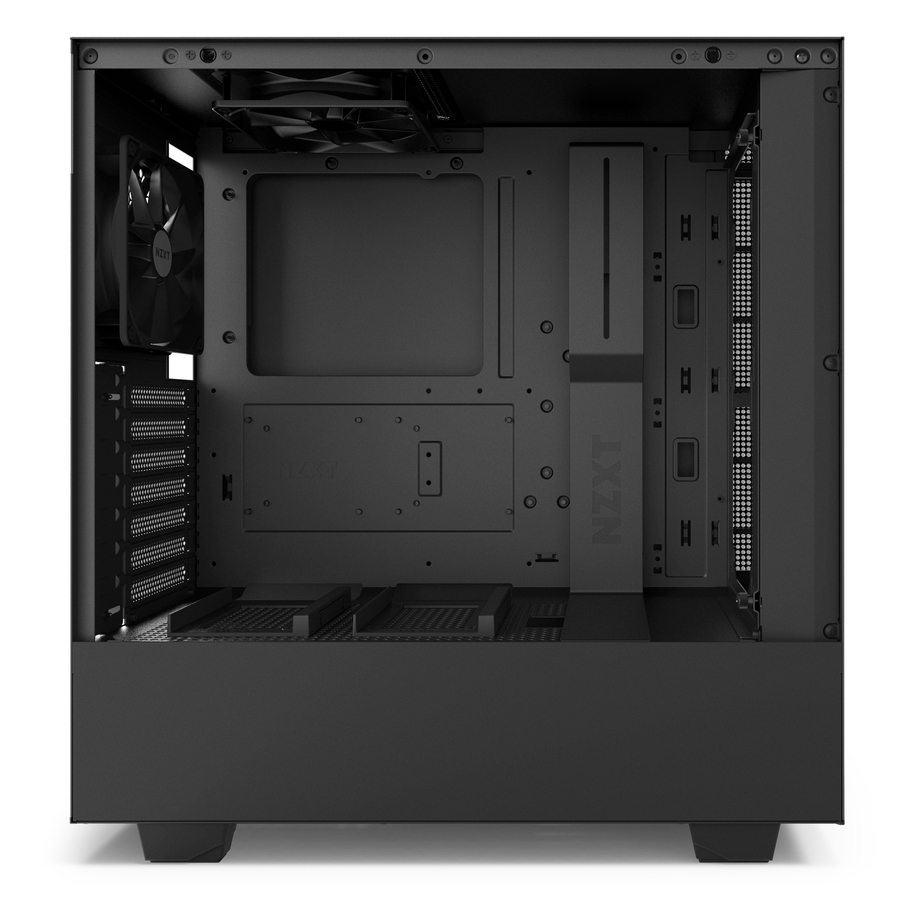

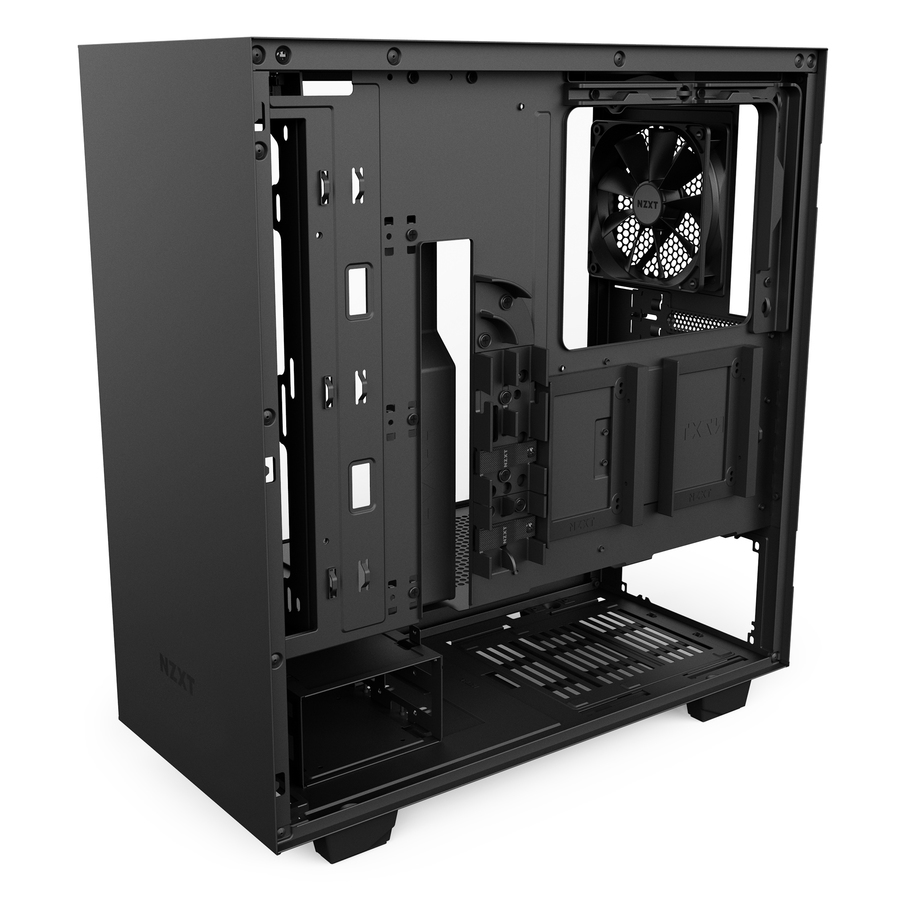

  • System installation and expansion made easy with all-new cable management system
  • Water-cooling installation simplified for both AIO and custom loop

Dimensions: W210mm H460mm D428mm (with feet)
Materials: SECC Steel and Tempered Glass
Weight: 7 kg
Motherboard Support : Mini-ITX, MicroATX, and ATX

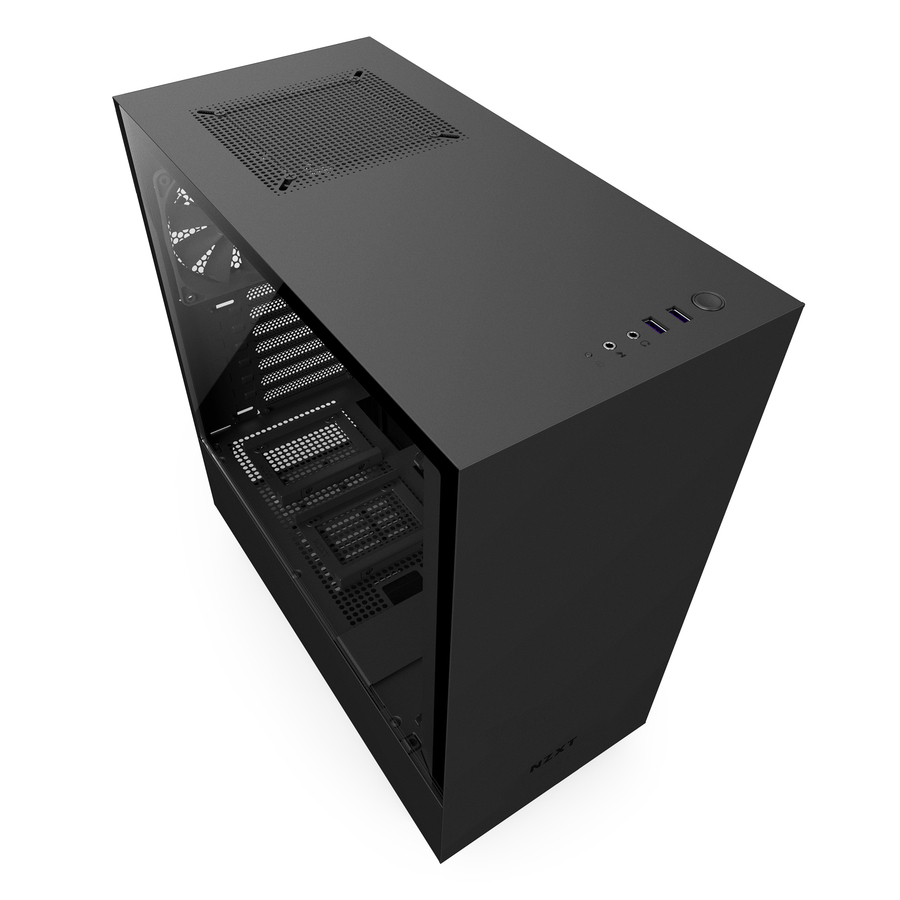

I/O Ports: 2 x USB 3.1 Gen 1, 1 x Audio/Mic
Filters: Front right side panel, bottom front and PSU intake

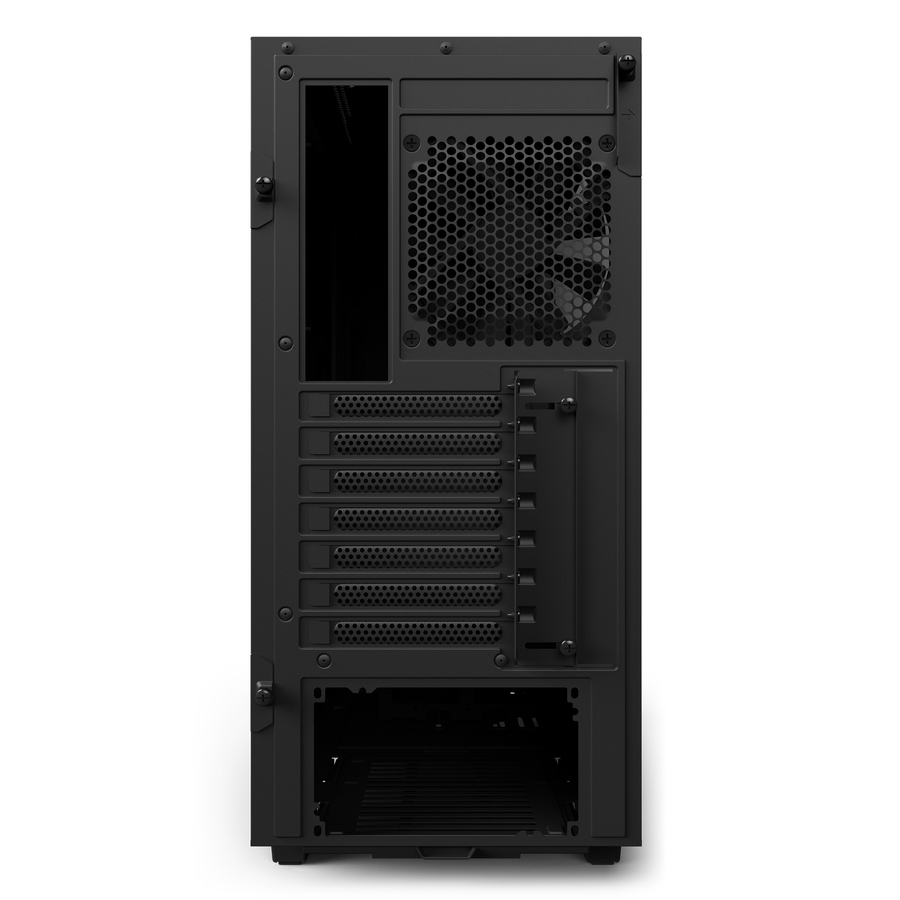

Expansion Slots: 7
Drive Bays: 2.5”: 2+1, 3.5”: 2+1
Radiator Support: Front Up to 280mm, Rear 120mm
Clearance Cable Management: 19–23mm
GPU Clearance: Up to 381mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Fan Support:
Front: 2 × 120 / 2 × 140mm
Top: 1 × 120mm (1 Aer F120 Case Version included) / 1 × 140mm
Rear: 1 × 120mm (1 Aer F120 Case Version included)
Fan Specs:
Aer F120 (Case Version)
Speed: 1200 + 200 RPM
Airflow: 50.42
CFM Noise: 28 dBA
Bearing: Rifle Bearing

Release date Australia
May 28th, 2018
Manufacturer code:
CA-H500B-B1
Supported Motherboard Form Factor(s)
  • ATX
  • microATX
  • Mini-ATX
Maximum CPU Cooler Height (mm)
165
Maximum Water Cooling Radiator Size (mm)
180
Supported PSU Form Factor(s)
  • ATX
Maximum PCI Express Card Length (mm)
381
Number of 2.5″ Internal Drive Mounts
3
Number of 3.5″ Internal Drive Mounts
3
Number of Full Length Full Height Expansion Slots
7
Front Fan 1 Size
140mm
Front Fan 2 Size
140mm
Rear Fan 1 Size
120mm
Upper Fan 1 Size
120mm
Brand
Warranty Period
2 years
Box Dimensions (mm)
510x505x280
UPC
815671013743
Product ID
28113616
