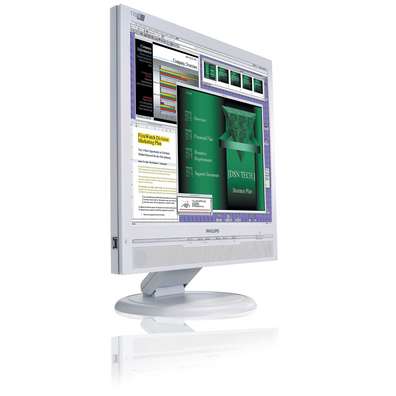

Philips 170B6 series monitors deliver high performance with perfect panel, faster response times, USB2.0 ports and compact bases. Beige.
Product Features:
Outstanding front of screen performance
* ISO 13406-2 Class I compliant dot-defect-free display
* 8-ms response time for outstanding display of moving images
* SXGA 1280 x 1024 resolution for sharper display
* Dual input accepts both analogue VGA and digital DVI signals
Best total cost of ownership solution
* SmartManage provides LAN-based asset management capabilities
* Lead-free design safeguards our environment
* Power consumption below the industry average
Maximum comfort for maximum productivity
* Built-in speakers for audio without desktop clutter
* Designed for 'just-right' height and angle adjustment
Great convenience
* USB port for convenient peripheral connections
* Embedded power supply eliminates external power adaptors
Product Specifications:
Picture / Display:
LCD panel type : 1280 x 1024 pixels, Anti glare polarizer, RGB vertical stripe
Panel size : 17"/ 43 cm
Effective viewing area : 337.9 x 270.3 mm
Pixel pitch : 0.264 x 0.264 mm
Brightness (nits) : 250 nit
Contrast ratio (typical) : 500:1
Display colours : 16.2 M
Viewing angle : - C/R > 5
Viewing Angle (Horizontal) : 160 degree
Viewing angle (Vertical) : 140 degree
Response time (typical) : 8 ms
White Chromaticity, 6500K : x = 0.313 / y = 0.329
White Chromaticity, 9300K : x = 0.283 / y = 0.297
Maximum resolution : 1280 x 1024 @ 75 Hz
Recommended resolution : 1280 x 1024 @ 60 Hz
Factory preset modes : 15 modes
User definable modes : 50 modes
Video dot rate : 140 MHz
Horizontal scanning frequency : 30 - 83 KHz
Vertical scanning frequency : 56 - 76 Hz
sRGB : Yes
Connectivity:
Signal input : Analogue (VGA), DVI-D, PC audio in
Audio output : Stereo Audio (3.5 mm jack) 1x
USB : USB 2.0
Video sync input signal : Composite Sync, Separate sync, Sync on green
Convenience:
Built-in audio : 2 W RMS x 2 stereo speakers
Convenience enhancements : On screen display, SmartManage enabled
Monitor controls : Auto, Brightness control, Left / right, Menu (OK), Power on / off, Up / down, Volume control
OSD languages : English, French, German, Italian, Simplified Chinese, Spanish
Other convenience : Kensington lock compatible, FlexiHolder
Plug & Play compatibility : DDC/CI, sRGB, Windows 98/ME/2000/XP
Regulatory approvals : CE Mark, E2000, EMC, Energy Star, FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo
Swivel : +/- 125°
Tilt : -5° to 25°
VESA Mount : 100 x 100 mm
Accessories:
Included accessories : AC power cord, Audio cable, USB cable, VGA cable
Optional accessories : Super Ergo Base
User manual : Yes
Dimensions:
Depth (with base) : 210 mm
Height (with base) : 377 mm
Width (with base) : 375 mm
Height adjustment range : 70 mm
MTBF : 50,000 hrs
Relative humidity : 20% - 80 %
Temperature range (Operation) : 5° C to 40° C
Temperature range (Storage) : -20°C to 60° C
Weight : 4.8 kg
Power:
Complies with : E2000, Energy Star, NUTEK
Consumption : 33W (Typical)
Off Mode : < 1 W
Power LED indicator : Operation, green, Stand by / sleep, amber
Power supply : Built in, 100-240VAC, 50/60Hz
