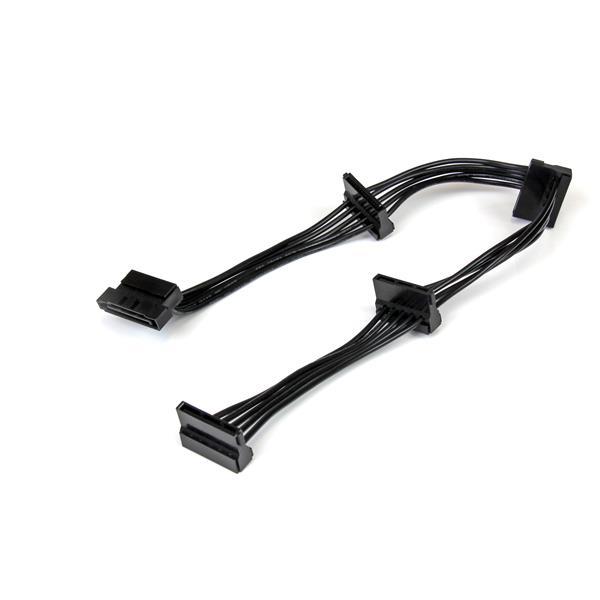

The PYO4SATA SATA power splitter cable (1-to-4) features a SATA male power connector that connects to a single computer power supply SATA connector, and breaks out into four SATA female power connectors.

The SATA power splitter cable overcomes the limit of the number of SATA devices, such as SSD drives or SATA optical drives that can be installed in the system, based on available PSU power connections. The cable eliminates the cost of having to upgrade the power supply to accommodate additional SATA drives.

Applications

• Power up to 4 SATA drives from a single Serial ATA power supply connection

Specifications

CONNECTOR(S)

• Connector A: 1 – SATA Power (15 pin) Plug
• Connector B: 4 – SATA Power (15 pin) Receptacle

PHYSICAL CHARACTERISTICS

• Cable Length: 15.7 in [400 mm]
• Color: Black
• Product Height: 0.6 in [16.5 mm]
• Product Length: 15.7 in [400 mm]
• Product Weight: 1.2 oz [33 g]
• Product Width: 1.1 in [29 mm]
• Wire Gauge: 18 AWG
