Pure 20 ARGB Sync Case Fan TT Premium Edition (1-Fan
Pack)
Thermaltake Pure 20 ARGB Sync Case Fan TT Premium Edition features compression
blades, hydraulic bearing, and a 16.8 million colors LED ring with
9 addressable LEDs that is ready to sync with 5V RGB capable motherboards from
Asus, Gigabyte, MSI and AsRock. Users can easily switch RGB lighting effects
using the ARGB controller that is included in the packet, or by ASUS Aura Sync,
GIGABYTE RGB Fusion, MSI Mystic Light Sync and AsRock Polychrome software. Pure
20 ARGB Sync Case Fan delivers 16.8 million-color RGB illumination and
unparalleled ventilation.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic
Light Sync and AsRock Polychrome. It supports motherboards that have a 5V
addressable RGB header, allowing you to control the lights directly from the
above-mentioned software without installing any extra lighting software or
controllers. For more details, please visit ASUS, GIGABYTE, MSI and AsRock
official websites.

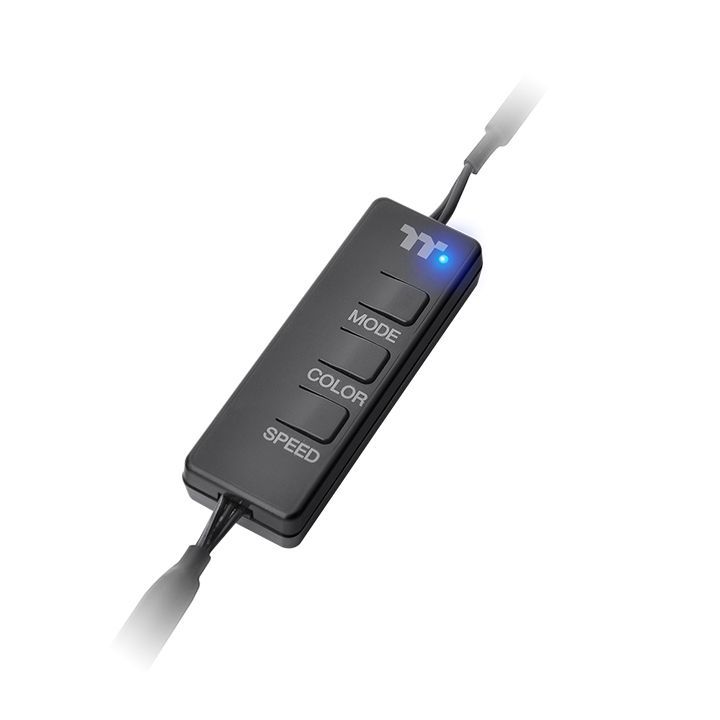

Switch LED Modes with ARGB Controller
The ARGB controller allows users to switch LED modes, LED colors, and LED Speeds
when using a motherboard without a 5V addressable RGB header. Users can switch
between flow, ripple, pulse, blink, wave, full light, RGB spectrum, and off
modes with various colors and LED speeds options.
- The maximum signal output for one controller is 90 addressable LEDs.

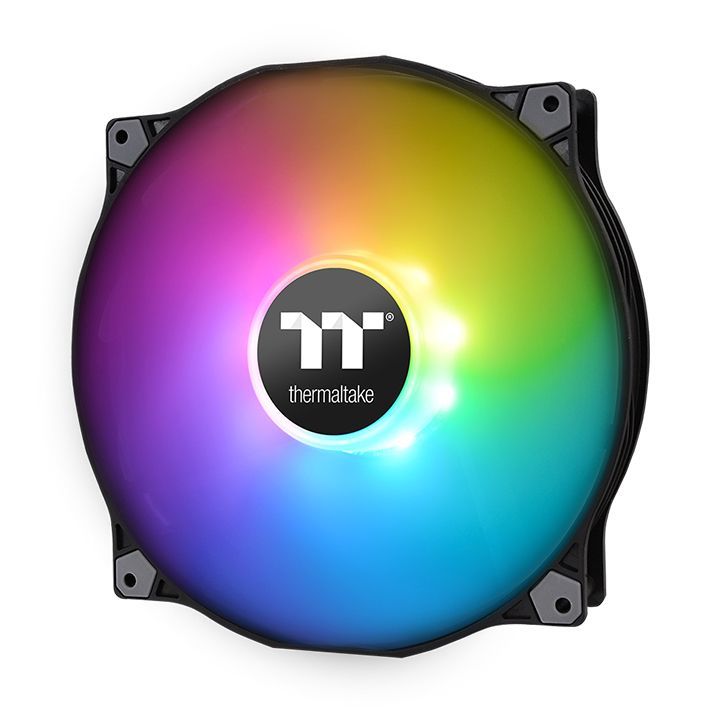

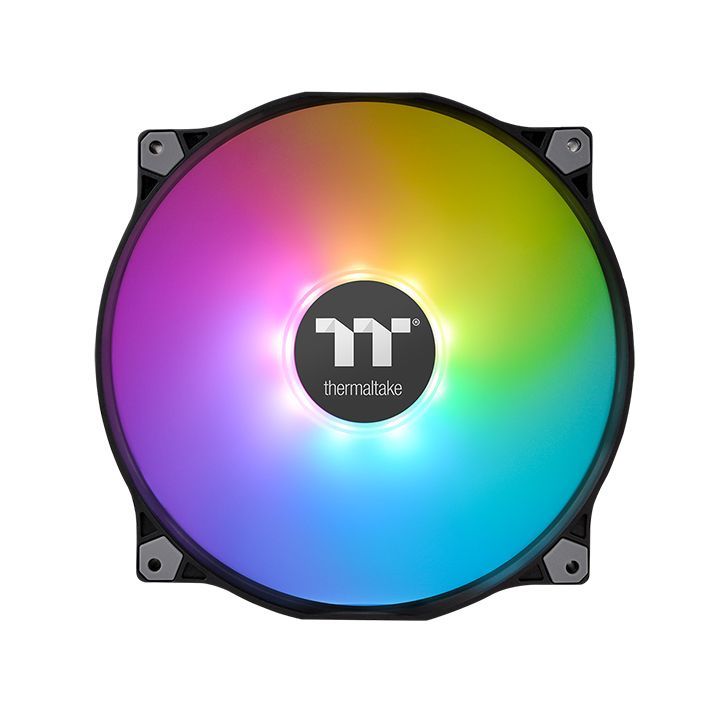

16.8 Million Colors LED Design
Featuring 9 addressable LEDs, great light coverage, and uniform color and
brightness, the built-in LED ring can paint your build with 16.8 million
colors.

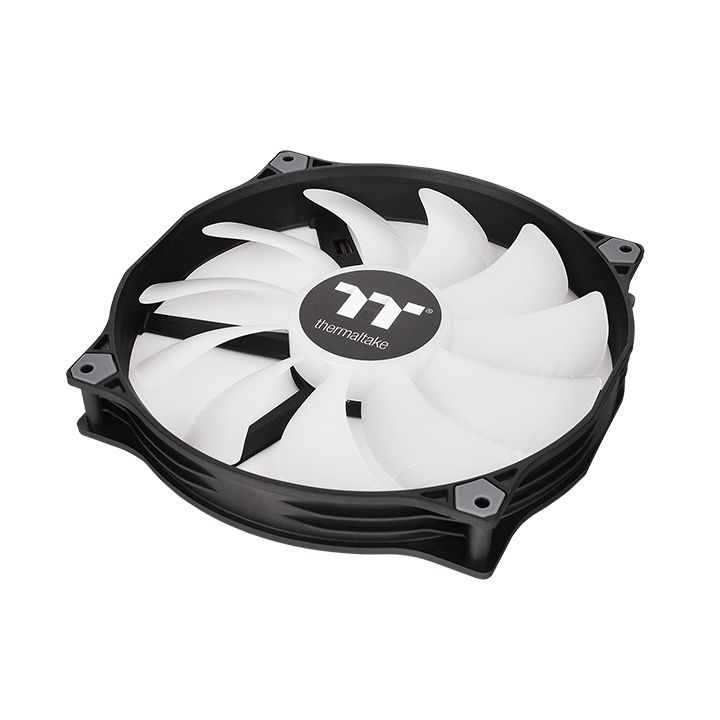

11 Fan Blade Design
200mm fan with unique 11 blades design is engineered to generate higher airflow
without compromising on ultra-silent operation.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing
substance, which lowers operation noise while improving thermal efficiency. The
seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with
80% protection coverage for all corners.
Specifications
Fan Dimension 200 × 200 × 30 mm
Interface Fan 2510–4P , LED 5V RGB Header
Fan Started Voltage 9.0 V
Fan Rated Voltage 12 V & 5V
Rated Current Fan 0.26 A , LED 0.32 A
Power Input 12V – 3.12 W , 5V – 1.6 W
Fan Speed 500 ~ 1000 R.P.M
Max. Air Pressure 1.72 mm-H2O
Max Air Flow 129.54 CFM
Noise 31.2 dB-A
Bearing Type Hydraulic Bearing
Life Expectation 40,000 hrs,25℃
