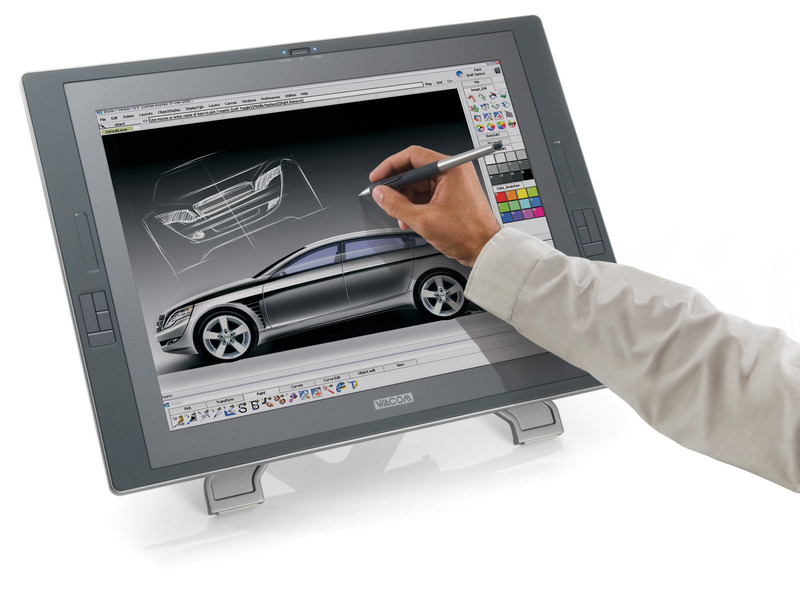

Since its introduction, the Cintiq 21UX has represented the premier direct on screen experience for professional artists, designers and animators. Now this flagship product is even better.
The new and improved Cintiq 21UX now features Intuos4 technology and enhanced design. The pen has been upgraded to include the new tip sensor, which delivers precise pressure control starting with as little as one gram of pressure. Combined with 2,048 levels of pressure sensitivity and 60 degrees of tilt recognition, the Cintiq 21UX offers better feel and performance than ever.
Specifications:
LCD DISPLAY
Product: DTK-2100
Screen size: 21.3-inch
Screen resolution: 1600×1200 (UXGA)
Pixel pitch: 0.270×0.270 mm
Color depth: 16.77 million colors
Color management: ICC profile, 6500° K whitepoint default
Color management control: DDC/CI
Contrast ratio: 550:1
Maximum Brightness (cd/m2): 220
Response Time: 20 ms
Viewing angle(horizontal / vertical): 170° / 170°
Backlight lifetime: 30,000 hours
Video interface: DVI-I video-in
Video cables: DVI-I to VGA, DVI-I to DVI-D
PEN & TABLET
Product: DTK-2100
Battery-free & cordless pen: Yes
Pen pressure levels: 2048 levels
Customizable pen buttons: 2 side switches
Eraser: Yes
Tablet resolution: 5080 lpi
Tablet buttons: 16 user-customizable buttons (8 per side)
Coordinate accuracy: ±0.5mm (center)
Tablet reading height: 5 mm
Report rate: 133 points/sec
Data interface: USB
Data cables: USB cable
GENERAL
Product: DTK-2100
Main unit dimensions (W x D x H): 561×421×61.3 mm
Weight (excluding stand): 8.7 kg
Adjustable stand (incline from vertical): 30° to 80°
Operating temperature: 5° to 35°
Operating humidity: 20% to 80% RH
OTHER
Product: DTK-2100D
Windows OS compatibility: 7 / Vista / XP / 2000
Macintosh OS compatibility: OS X 10.4.1 or later
Power supply input: AC 100–240V, 50–60Hz
Maximum power consumption: 54W
Limited warranty: One year
