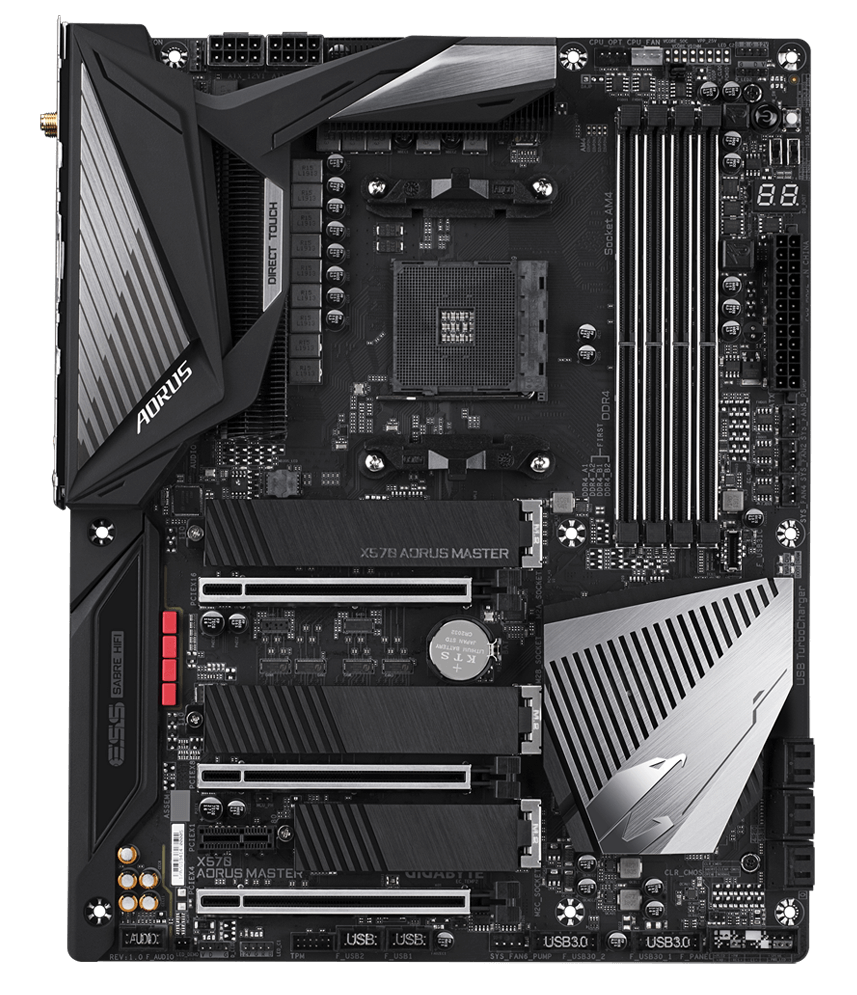

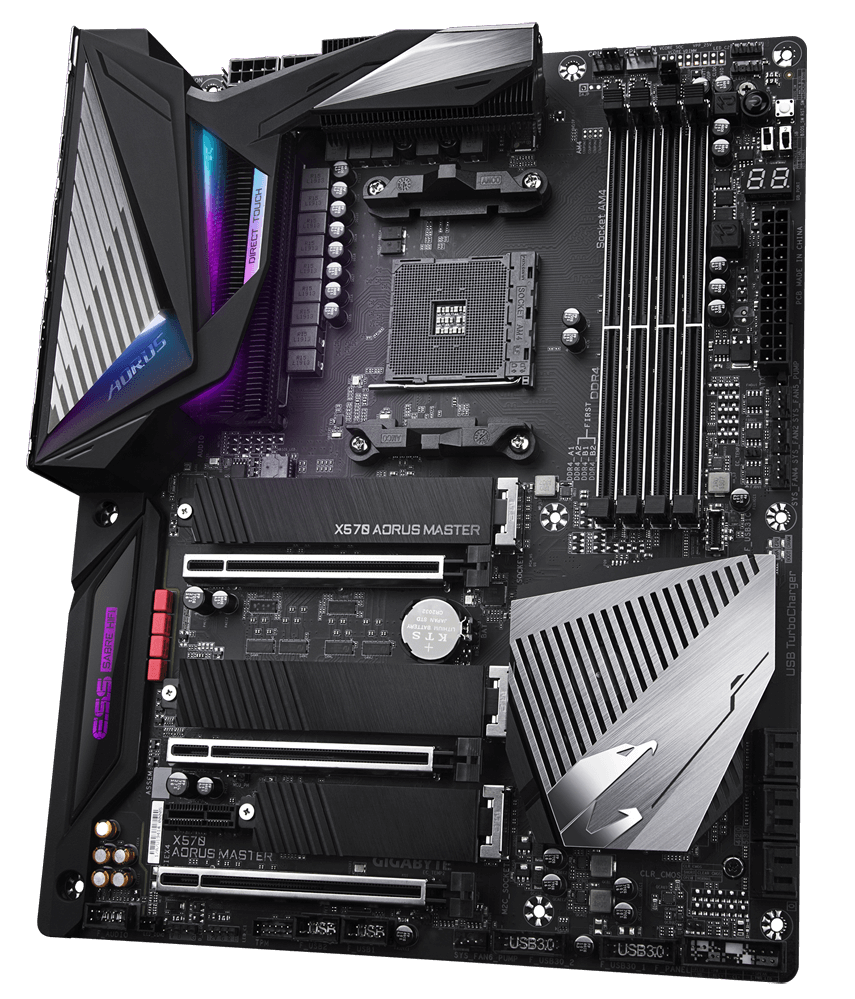

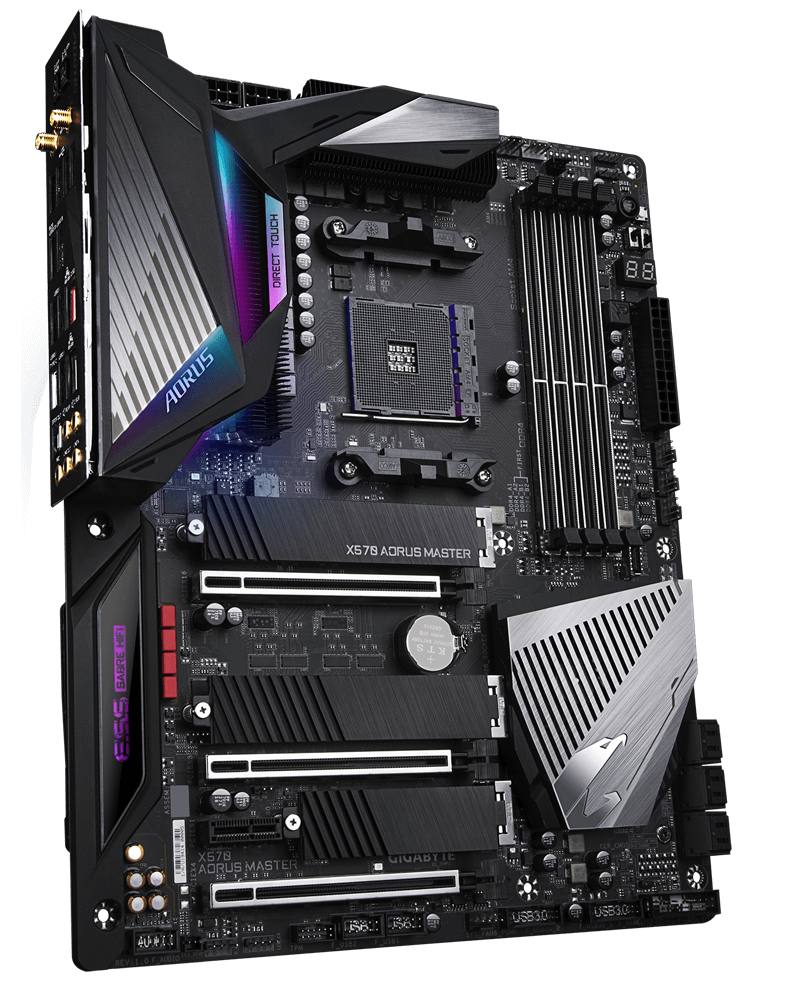

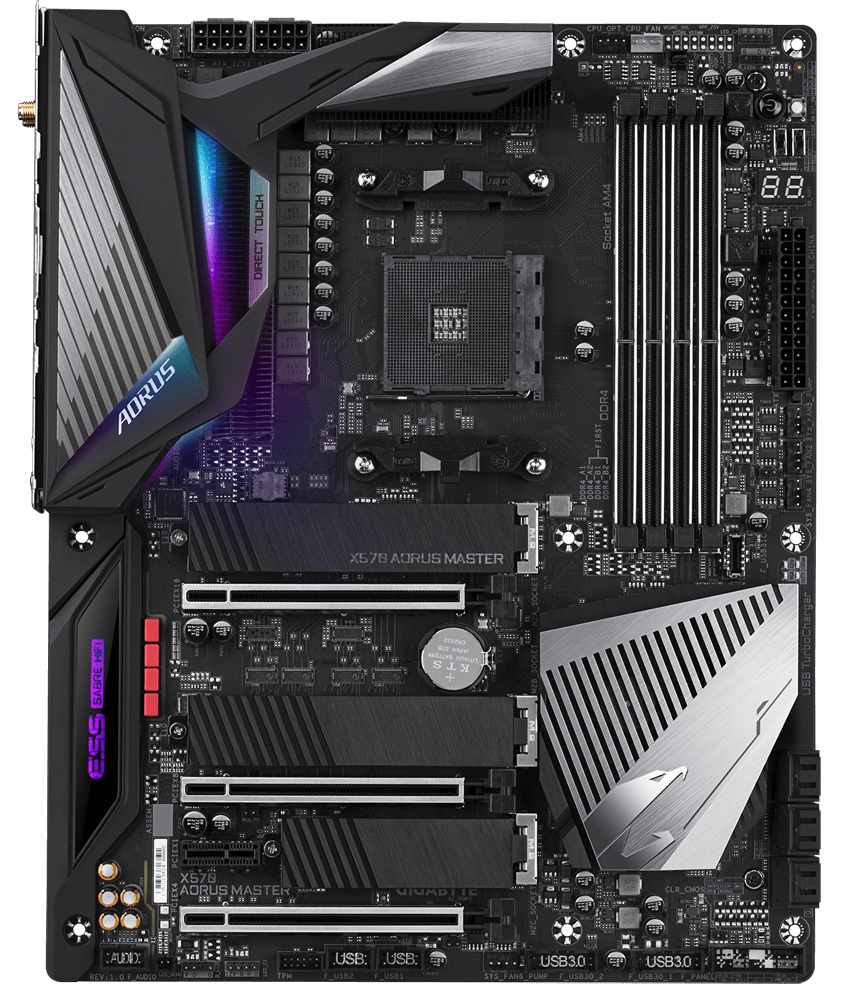

Gigabyte: X570 Aorus Master - Gaming Motherboard

AM4 Socket, 4 x Dimm, Supports up to 128GB, DDR4 up to 4400 (OC)

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$749.00

or 4 payments of $187.25 with . Learn more

In stock with NZ supplier

The item is brand new and in-stock with one of our preferred suppliers. The item will ship from the Mighty Ape warehouse within the timeframe shown below.

Usually ships within 4-6 days

Availability

Delivering to:

Estimated arrival:

  • Around 2-9 March using standard courier delivery

Description

Dominant In Darkness!

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's de­dication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

Features:

  • Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/2nd Gen Ryzen with Radeon Vega
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 14 Phases Infineon Digital VRM Solution with PowIRstage
  • Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
  • Intel® WiFi 6 802.11ax 2T2R & BT 5
  • Rear 125dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9118 DAC with WIMA Audio
  • Realtek® 2.5GbE + Intel® Gigabit LAN with cFosSpeed
  • USB TurboCharger for Mobile Device Fast Charge Support

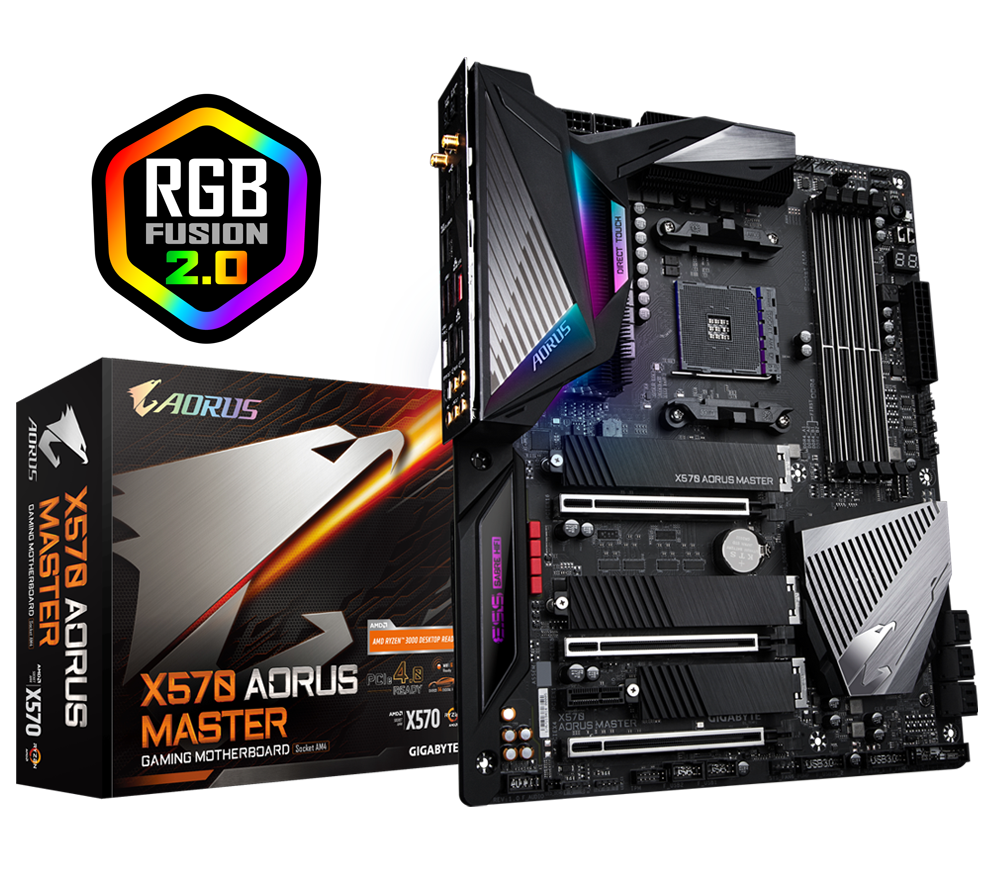

  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
  • Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors
  • Hybrid Fan Headers with FAN STOP and Noise Detection
  • Front & Rear USB 3.2 Gen2 Type-C™ Headers
  • Integrated Base Plate & I/O Shield Armor
  • Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Specifications:

  • Chipset: AMD X570
  • Operating System: Windows 10 64-bit
  • CPU: AM4 Socket, 3rd/2nd Ryzen, 2nd/1st Gen Ryzen with Radeon Vega Graphics
  • Wireless: Wi-Fi 802.11a/b/g/n/a­c/ax, supporting 2.4/5 GHz Dual-Band, Bluetooth 5.0
  • Lan: 1 x Intel® GbE LAN chip, 1 x Realtek® 2.5GbE LAN chip
  • Form Factor: ATX Form Factor (30.5 × 24.4cm)
  • I/O Controller: iTE® I/O Controller Chi
  • Socket: AM4

Specifications (Internal I/O Connectors):

  • 1 × 24-pin ATX main power connector, 2 × 8-pin ATX 12V power connectors
  • 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers
  • 2 x system fan/water cooling pump headers, 2 x addressable LED strip headers
  • 2 x RGB LED strip headers, 3 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors
  • 1 x front panel header, 1 x front panel audio header
  • 1 x USB Type-C™ port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers, 1 x noise detection header
  • 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S modu­le only)
  • 2 x temperature sensor headers, 1 x power button, 1 x reset button, 2 x BIOS switches
  • 1 x Clear CMOS jumper, Voltage Measurement Points

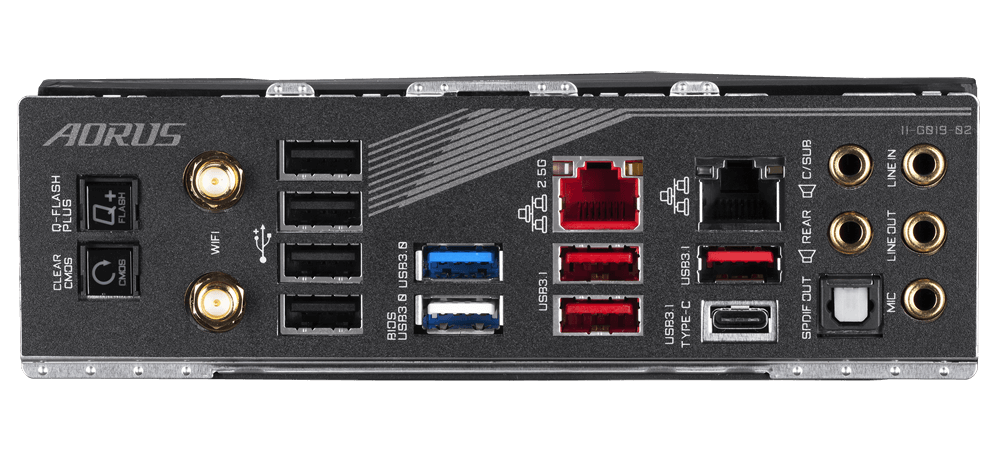

Specifications (Back Panel Connectors):

  • 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R)
  • 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) – 3rd Gen AMD Ryzen Only
  • 1 x USB 3.2 Gen 2 Type-A port (red), 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
  • 2 x RJ-45 ports, 1 x optical S/PDIF Out connector, 5 x audio jacks

3rd Gen AMD Ryzen Processors:

  • Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
  • Multi-Graphics Technology: 2-Way NVIDIA SLI, 2-Way AMD CrossFire,
  • Storage Interface: 1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110)
  • Storage Interface: SATA and PCIe 4.0 x4/x2 SSD support)
  • Expansion Slots(PCIe 4.0): 1×PCI Express x16 slot (x16), 1×PCI Express x16 slot (x8)
  • USB (CPU): 2× USB 3.2 Gen 2*/Gen 1 Type-A ports (red), 2 x USB 3.2 Gen 1
  • USB (Chipset): 3× USB Type-C (3.2 Gen 2), 4× USB 3.2 Gen 1
  • USB (Chipset+USB 2.0 Hub): 8 x USB 2.0/1.1 ports

2nd Gen AMD Ryzen™ Processors

  • Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
  • Multi-Graphics Technology: 2-Way NVIDIA SLI, 2-Way AMD CrossFire
  • Storage Interface: 1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110)
  • Storage Interface: SATA and PCIe 3.0 x4/x2 SSD support
  • Expansion Slots (PCIe 3.0): 1×PCI Express x16 slot (x16), 1×PCI Express x16 slot (x8)
  • USB (CPU): 2× USB 3.2 Gen 2*/Gen 1 Type-A ports (red), 2 x USB 3.2 Gen 1
  • USB (Chipset): 3× USB Type-C (3.2 Gen 2), 4× USB 3.2 Gen 1
  • USB (Chipset+USB 2.0 Hub): 8 x USB 2.0/1.1 ports

2ndGen AMD Ryzen™ with Radeon Vega Graphics Processors:

  • Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
  • Storage Interface: 1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110)
  • Storage Interface: SATA and PCIe 3.0 x4/x2 SSD support
  • Expansion Slots (PCIe 3.0): 1×PCI Express x16 slot (x8)
  • USB (CPU): 2× USB 3.2 Gen 2*/Gen 1 Type-A ports (red), 2 x USB 3.2 Gen 1
  • USB (Chipset): 3× USB Type-C (3.2 Gen 2), 4× USB 3.2 Gen 1
  • USB (Chipset+USB 2.0 Hub): 8 x USB 2.0/1.1 ports
Release date Australia
July 6th, 2019
Manufacturer code:
GA-X570AORUS-MASTER
Brand
Manufacturer
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
Socket AM4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Supported M.2 Module Code(s)
  • 22110
  • 2242
  • 2260
  • 2280
UPC
889523017470
Product ID
30905348
