CONNECT EASILY TO A COMPUTER NETWORK

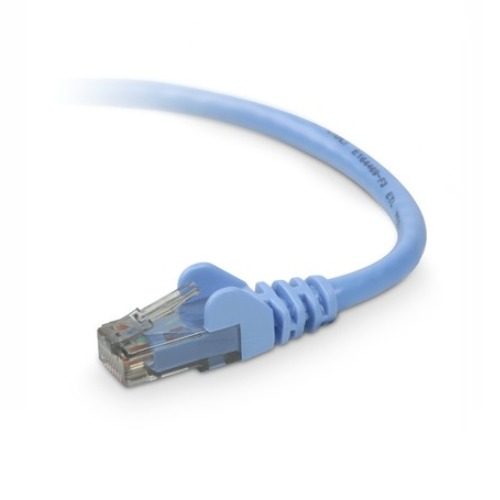

Upgrade your network and enjoy clean and clear transmissions with the Belkin CAT6 Ethernet Patch Cable. This patch cable lets you connect a laptop or desktop computer to a wall outlet, modem, router or another networking device. It meets the CAT6 standard and is suitable for use with 100/1000BASE-T networks. Patch cables are also handy in home offices and hotel rooms to establish a wired Internet connection.
RJ45 PLUGS WITH GOLD-PLATED CONTACTS FOR A CLEAR SIGNAL
The Belkin CAT6 Ethernet Patch Cable features an RJ45 male connector on each
end. Internal load bars ensure accurate plug positioning and consistent high
performance, while 50-micron gold-plated connectors resist corrosion and wear
and deliver a clean, clear signal.
GIGABIT SPEEDS WITH CAT6 TECHNOLOGY
Made with Unshielded Twisted Pair (UTP) stranded copper wires, this cable meets
the CAT6 Ethernet network cable standard and can support Ethernet speeds of up
to 1 gigabit per second. Unlike CAT5 technology, CAT6 cables fully use all four
pairs of twisted copper wires for greater bandwidth and speed.
LESS CROSSTALK WITH TWISTED PAIR WIRES
The CAT6 Ethernet Patch Cable features 4 UTP 24 AWG (American Wire Gauge)
stranded copper wires to reduce electromagnetic interference. Stranded cables
are more pliable than solid cables, making them better suited for travel. Plus,
the wires are housed in a durable PVC outer jacket for abrasion and corrosion
resistance.
SPECIFICATIONS
- Characteristic Impedence: 100±15O @ 1 ~ 550MHz
- Conductor Construction: Bare Stranded Copper
- Conductor Resistance: 93.8O/km/20°C max
- Conductor Size: 24AWG x 4pairs
- Dielectric Strength: AC 1.5kV
- Flame Retardant: Test CM
- Insulation Material: HDPE
- Jacket Material: PVC
- Mutual Capacitance: 56pF/m max
- Propagation Delay: 536nS/100m max @ 550MHz
- Spark Test: 2.5kV
- Standards Compliance: ISO/IEC 11801; TIA/EIA-568-B.2–1
- Structural Return Loss: 8.6dB min at 550MHz
- Cable Type: Cat 6
- Cable Characteristic: Unshielded twisted pair (UTP)
- Connector on First End: 1 x RJ-45 – male
- Connector on Second End: 1 x RJ-45 – male
- Jacket Diameter: 5.9±0.15mm
- Connector Type(s): 50 micron gold-plated connector
