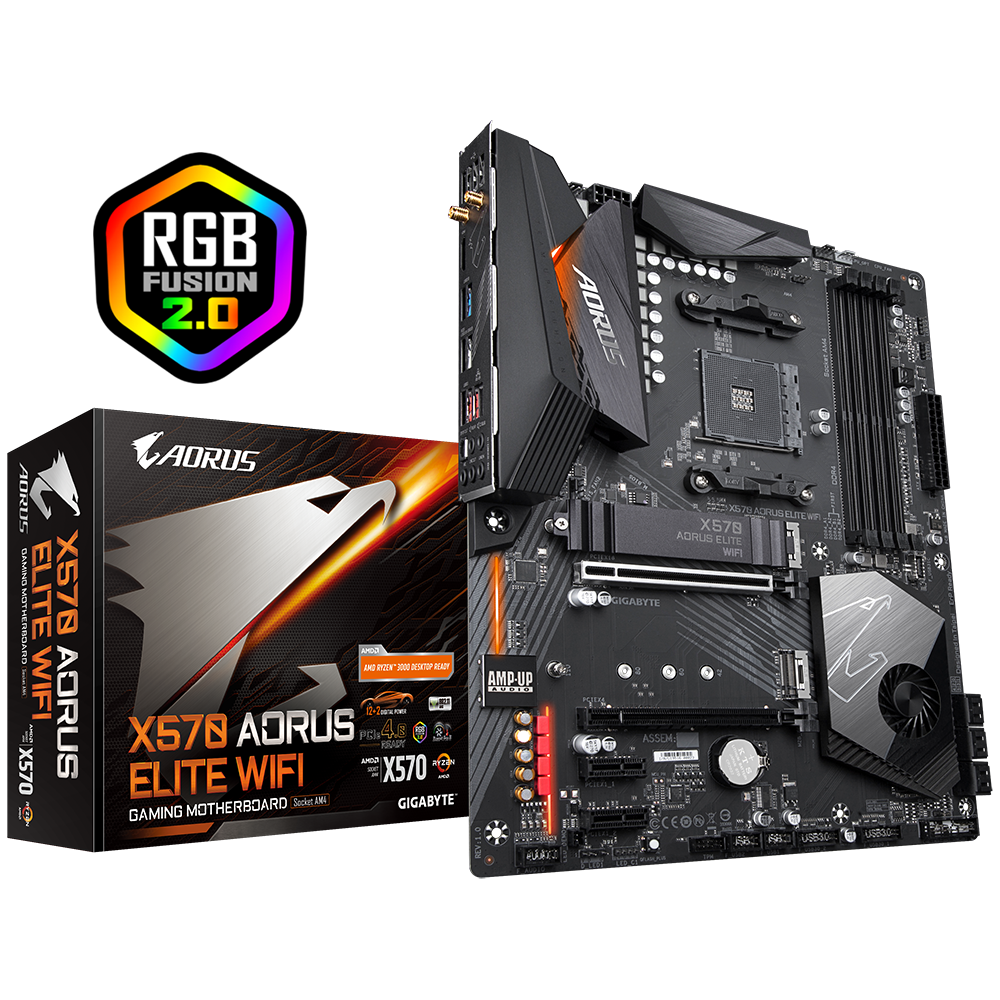

Gigabyte X570 Aorus Elite Wifi AMD Motherboard

Click to share your rating 5 ratings (5.0/5.0 average) Thanks for your vote!
$489.00

or own it now, pay later from $10 a week with Learn more

or 4 payments of $122.25 with Learn more

Hurry! Only 1 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships tomorrow!

Availability

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • 18-21 August using Express Delivery
    Mighty Ape can deliver this product within 1-2 business days (usually overnight) to urban centres across Australia, and some remote areas. Learn more
  • 21-31 August using standard courier delivery

Description

AMD X570 AORUS Motherboard with 12+2 Phase Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2 with Single Therma Guard, Intel® GbE LAN with cFosSpeed, Intel® Dual Band 802.11ac Wireless, Front USB Type-C, RGB Fusion 2.0

  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+2 Phases Digital VRM Solution with DrMOS
  • Advanced Heatsink Design with Enlarge Heatsink
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guards
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Intel® Gigabit LAN with cFosSpeed Internet Accelerator
  • Intel® Dual Band 802.11ac WIFI & BT 4.2
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
  • Integrated I/O Shield Armor
  • Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card

Design Concept
Dominant in Darkness
In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's de­dication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

AMD StoreMI Technology
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors

Ultimate Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.

Advanced Thermal Design
On a small mini-ITX board, heat is easily trapped and thermal balance is not easy to achieve. To avoid thermal throttle, an improved thermal solution consisting of a heatsink with cuts, and multi-layered heatsink has been implemented on the X570 I AORUS PRO WIFI. With a LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7× more heat compared to traditional thermal pads in the same time period.

Smart Chipset Fan Heatsink

  • Smart Fan

Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.

  • High Durability

X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.

Base plate + I/O Shield Armor
Durable design and easy installation

  • With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.
  • With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.

Full PCIe 4.0 Design
X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors, and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.

Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

RGB Fusion 2.0
With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS Motherboards are now upgraded with Addressable LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
AORUS Gaming Motherboards will support 5v digital LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
**Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.*

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Specifications:

  • CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors

(Please refer “CPU Support List” for more information.)

  • Chipset: AMD X570
  • Memory: 3rd Generation AMD Ryzen™ processors:

Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

  • ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)

  • Onboard Graphics:

Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

  • Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB
Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.

  • Audio:
  • Realtek® ALC1200 codec
  • High Definition Audio
  • 2/4/5.1-channel
  • Support for S/PDIF Out
  • LAN:
  • Intel® GbE LAN chip (10/100/1000 Mbit)
  • Wireless Communication module
  • Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 4.2

Support for 11ac wireless standard and up to 433 Mbps data rate

  • Actual data rate may vary depending on environment and equipment.
  • Expansion Slots:

Integrated in the CPU (PCIEX16):
· 3rd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
· 2nd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

  • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8

  • Integrated in the Chipset (PCIEX4/PCIEX1):

1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)

  • For 3rd Generation AMD Ryzen™ processors only.

2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0

  • For 3rd Generation AMD Ryzen™ processors only.
  • Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

  • Storage Interface:
  • Integrated in the CPU (M2A_SOCKET):

· 3rd Generation AMD Ryzen™ processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe 4.0 x4/x2 SSD support)
· 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe 3.0 x4/x2 SSD support)

  • Integrated in the Chipset (M2B_SOCKET):

1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)

  • For 3rd Generation AMD Ryzen™ processors only.

6 x SATA 6Gb/s connectors
:**Support for RAID 0, RAID 1, and RAID 10

  • USB:
  • Integrated in the CPU:

4 x USB 3.2 Gen 1 ports on the back panel

  • Integrated in the Chipset:

1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers

  • Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors:

1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x Q-Flash Plus button

  • Back Panel Connectors:

4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (1T1R)
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

  • I/O Controller: iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS:
  • 1 × 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features:
  • Support for APP Center
  • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • AutoGreen
  • Cloud Station
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • Smart Keyboard
  • Smart Survey
  • System Information Viewer
  • USB Blocker
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
  • Bundled Software

Norton® Internet Security (OEM version)
cFosSpeed

  • Operating System: Support for Windows 10 64-bit
  • Form Factor: ATX Form Factor; 30.5cm x 24.4cm
Release date Australia
October 17th, 2019
Manufacturer code:
GA-X570AORUSELITE-WIFI
Brand
Motherboard Form Factor(s)
  • ATX
Box Dimensions (mm)
335x275x85
UPC
889523018729
Product ID
31637456
