AMD X470 ITX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED lighting, DDR4 3600MHz support, , 802.11ac Wi-Fi, dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2
- Powered by AMD® Ryzen™ 2 AM4 and 7th generation Athlon™ processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, 802.11ac WiFi, and Gigabit LAN

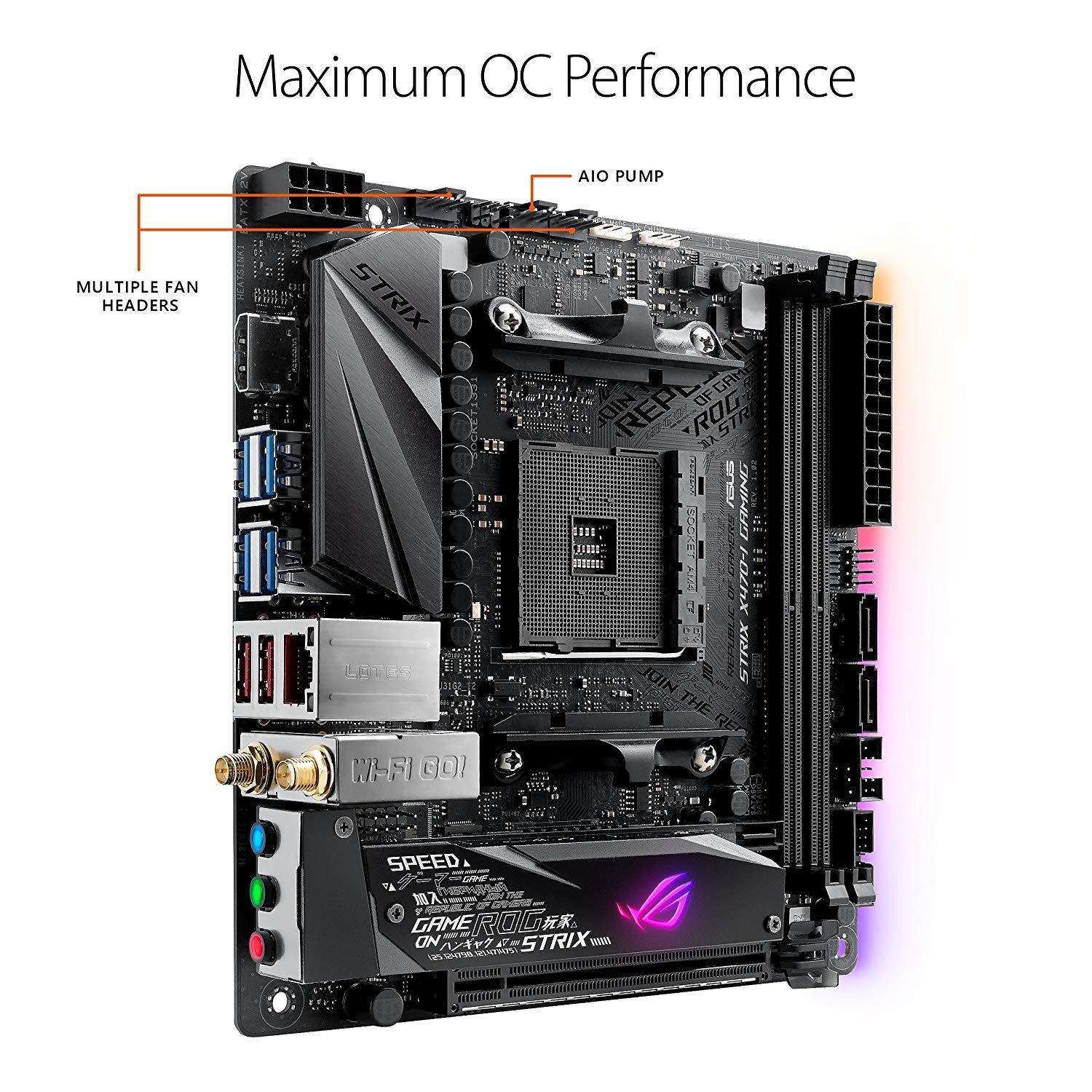

- 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

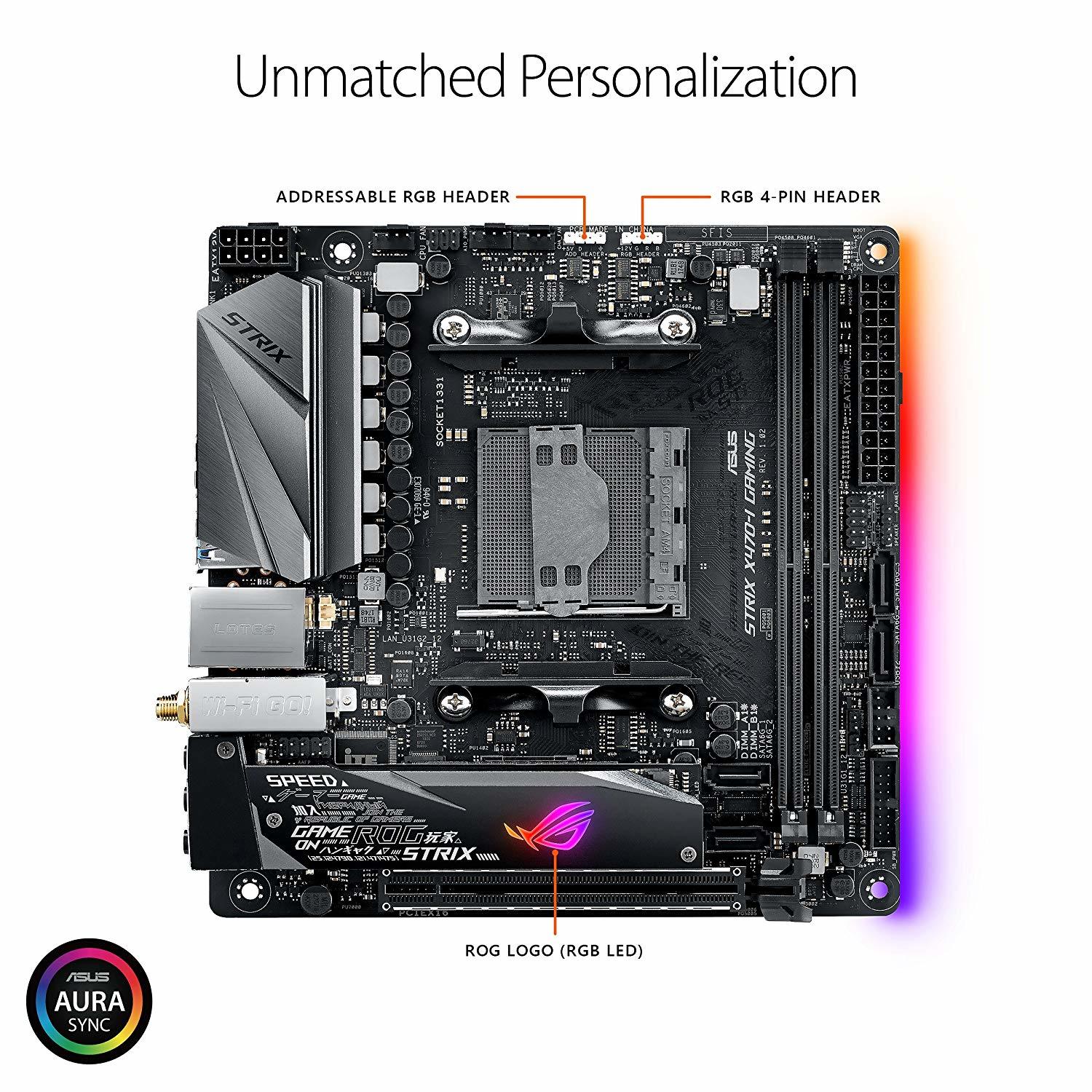

- Unmatched Personalization with ASUS exclusive Aura Sync RGB lighting, RGB 4-pin header and addressable RGB header

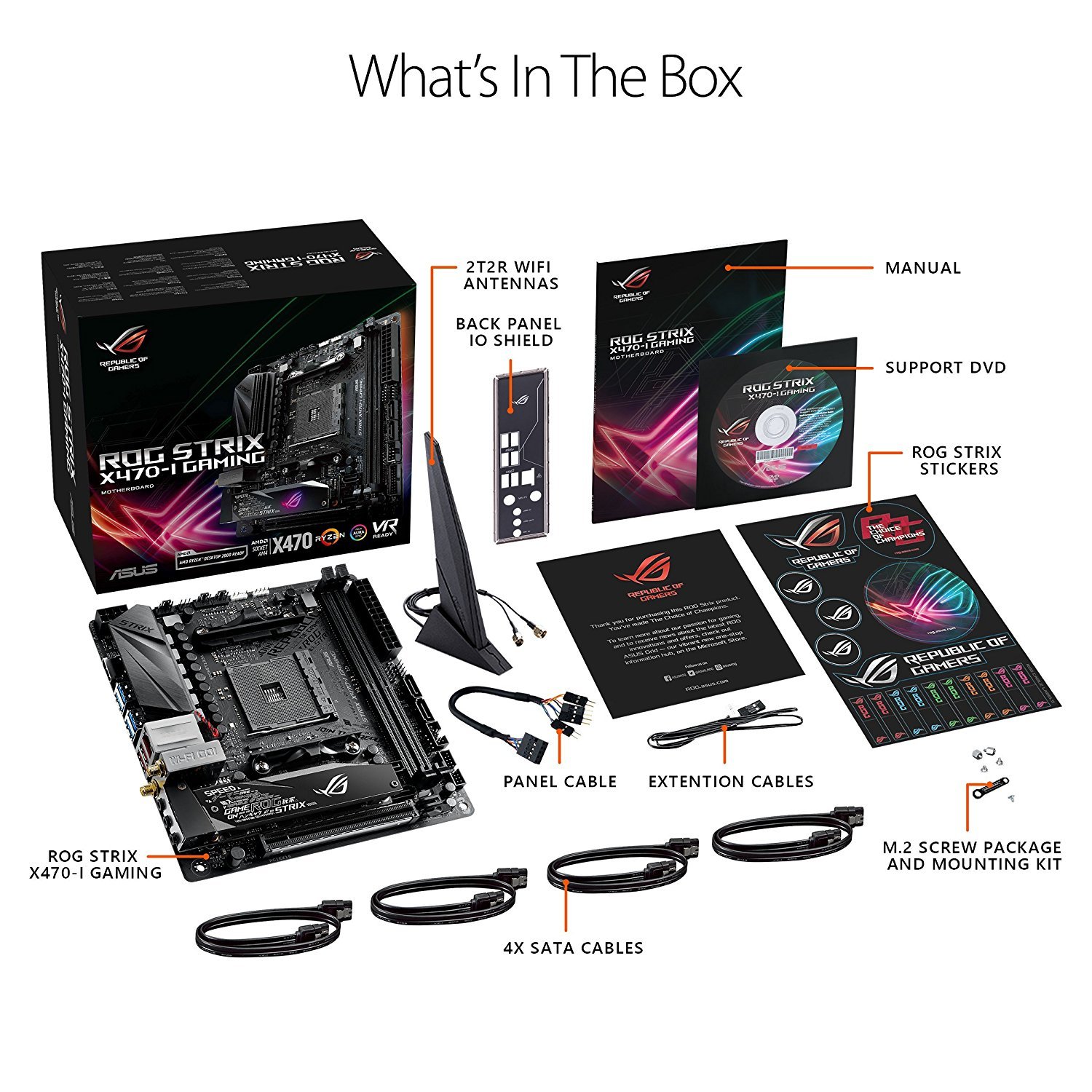

- Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
- Industry-leading 8-channel HD audio with dual headphone amplifiers, LED-Illuminated jacks, and ROG exclusive SupremeFX S1220A codec driven by Japanese capacitors

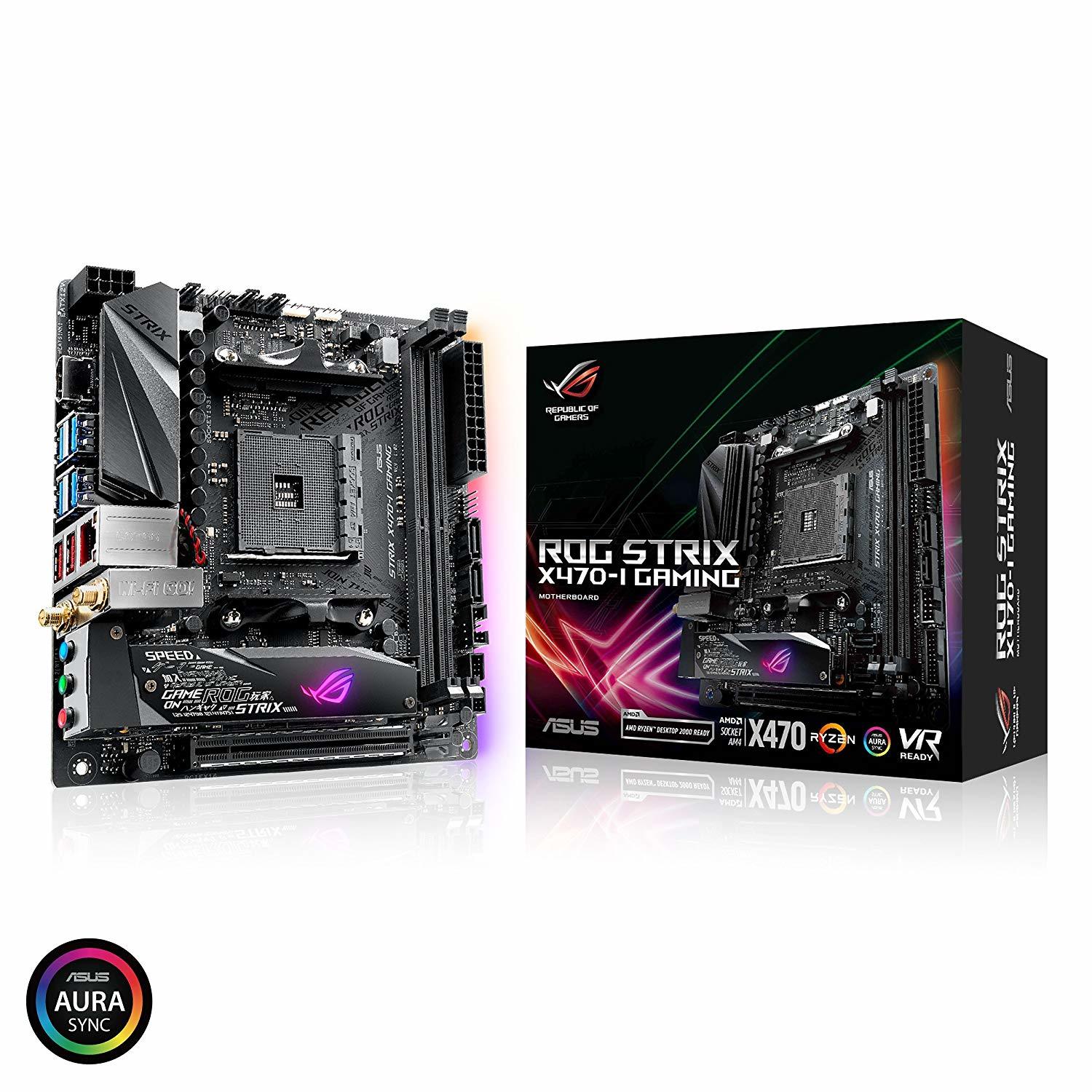

Elevating SSD cooling and premium sound lets the ROG Strix X470-I Gaming transcend Mini-ITX. Infused with all the essential ROG engineering ready for you to create a gaming rig that rivals anything built around a bigger board. Push performance to the limits with 5-Way optimization, and up the aesthetic ante with Aura Sync illumination. Go compact without compromise with ROG Strix X470-I Gaming and dominate your game!
INNOVATION
ROG Strix X470-I Gaming features an innovative riser card to help alleviate the
constraints imposed by the mini-ITX form factor. The M.2 Audio Combo Card frees
up prized real estate by raising M.2 drives and SupremeFX audio circuitry above
the mainboard to minimize lateral signal interference. And it's neatly covered
by a stylish heatsink that's capable of keeping the latest high-performance
SSDs cool.
PERFORMANCE
Experience great performance through comprehensive cooling controls, fast
storage, and exclusive technologies that enhance memory reliability
and speed.

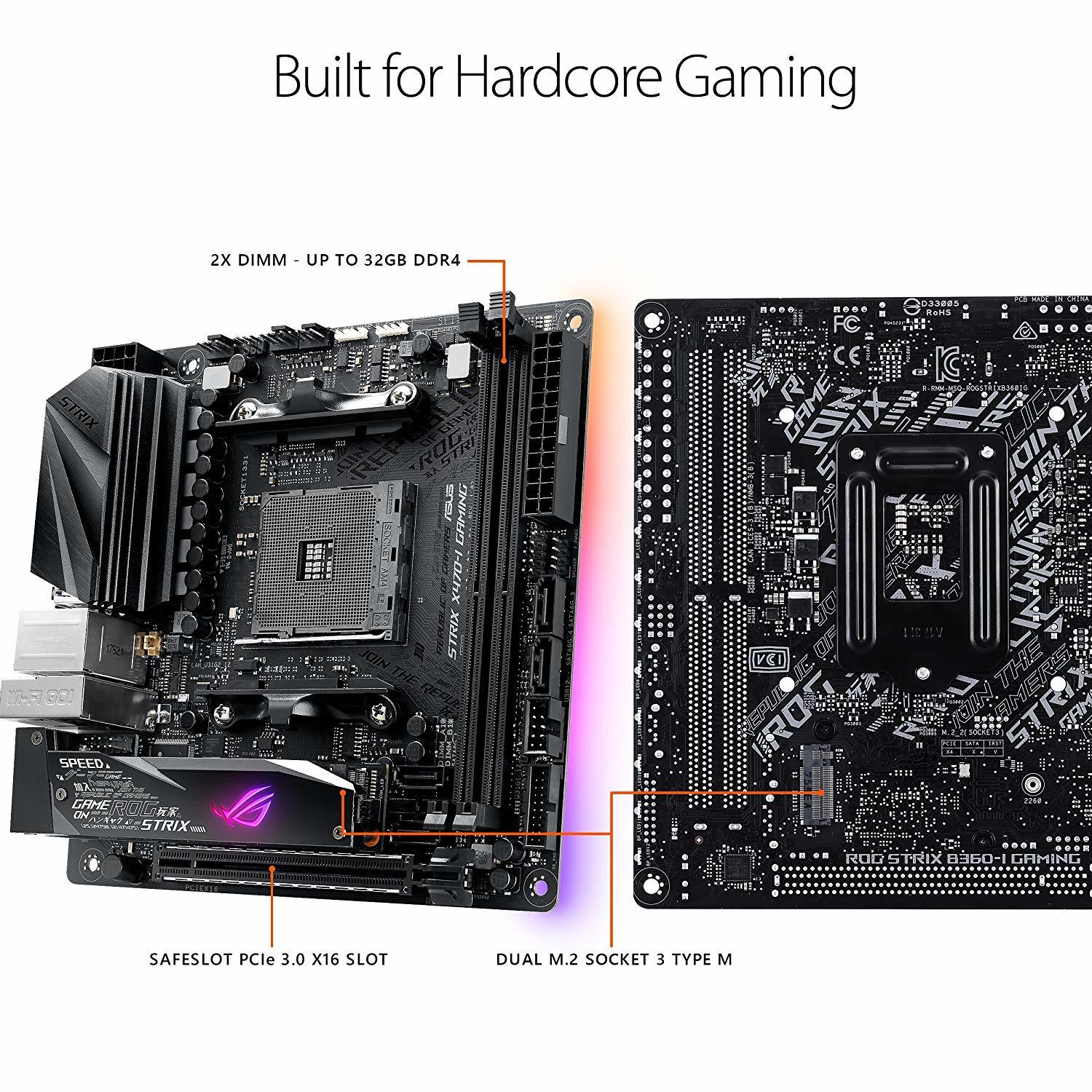

IMPROVED DDR4 STABILITY
Strategic placement of components and optimized trace pathways allow the Strix
X470-I to achieve memory frequencies that drive AMD Ryzen performance to the
redline. Capable of packing up to 32GB of high-speed memory, the X470-I can
tackle complex workloads or supply the bandwidth needed for smooth gameplay.
RAMCACHE II
RAMCache II turns milliseconds into microseconds to boost game-load times. Fully
compatible with the latest NVM Express storage options, its uniquely intelligent
technology effectively caches an entire storage device so that favorite games
and apps launch at breakneck speeds.
AUDIO
Built-in gaming audio means you're ready to play, chat, stream or kick back with
videos — right out of the gate. And included smart routing technology allows
you to direct various audio streams to different devices.
SONIC STUDIO III
Intuitive Audio-Tuning Suite
Sonic Studio supports HRTF-based (head-related transfer function*) virtual
surround for VR headsets, casting an immersive aural landscape that draws you
deeper into the action. The intuitive Sonic Studio interface also offers a range
of EQ options and one-click presets, allowing you to tailor acoustics to suit
personal preferences or the characteristics of your headset.
AESTHETICS
Up your aesthetic horizons with a new cyber-text design and Aura
illumination — to create a personalized gaming with immersion that extends
from the inside out.
Specifications
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A – Dual OP
Amplifiers – Impedance sense for front and rear headphone outputs –
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High
quality 120 dB SNR stereo playback output and 113 dB SNR recording input –
Supports up to 32-Bit/192kHz playback *3 LED-illuminated audio jacks Audio
Feature : – Sonic Radar III – Sonic Studio III + Sonic Studio Link
Chipset
AMD X470
Form Factor
Mini-ITX
LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG
GameFirst IV
Memory/Type/Bus/Max.
2XDIMM/DDR4/3600 MHz/32GB

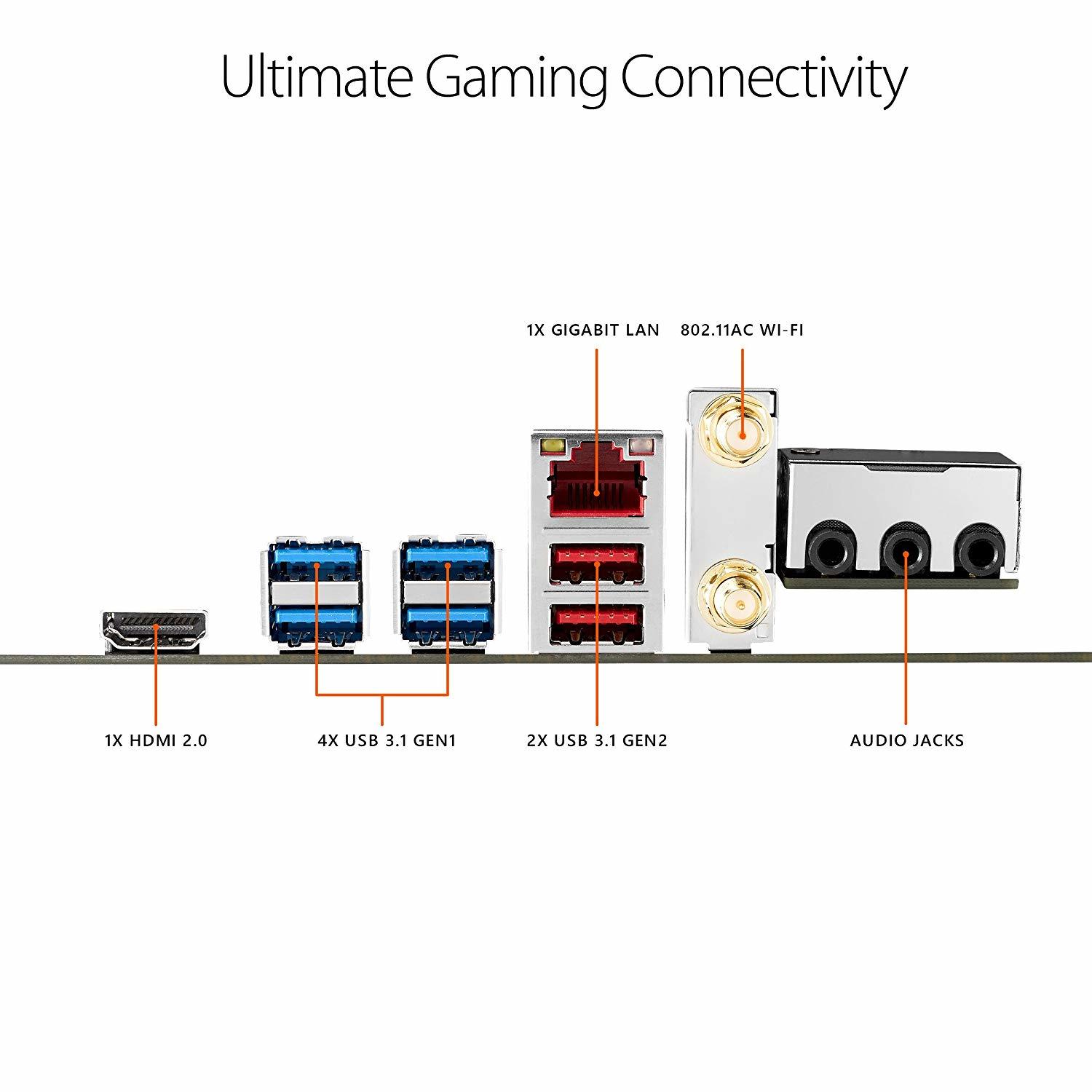

Other I/O Connectors
1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A, 4 x USB
3.1 Gen 1 (blue) , 3 x LED-illuminated audio jacks 1 x ASUS Wi-Fi GO! module
(Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
Processor Support
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega
Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4
Processors
Raid
0, 1, 10
Socket
AMD AM4
Storage Interface
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : 1 x
M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA
& PCIE 3.0 × 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280
storage devices support (PCIE 3.0 × 4 mode)*1 AMD Ryzen™ with Radeon™
Vega Graphics Processor : *2 1 x M.2 Socket 3, with M key, type 2242/2260/2280
storage devices support (SATA & PCIE 3.0 × 4 mode) AMD 7th Generation
A-Series/Athlon X4 Processors : *2 1 x M.2 Socket 3, with M key, type
2242/2260/2280 storage devices support (SATA mode) AMD X470 chipset : 4 x SATA
6Gb/s port(s), Support Raid 0, 1, 10
USB Ports
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : 1 x
M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA
& PCIE 3.0 × 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280
storage devices support (PCIE 3.0 × 4 mode)*1 AMD Ryzen™ with Radeon™
Vega Graphics Processor : *2 1 x M.2 Socket 3, with M key, type 2242/2260/2280
storage devices support (SATA & PCIE 3.0 × 4 mode) AMD 7th Generation
A-Series/Athlon X4 Processors : *2 1 x M.2 Socket 3, with M key, type
2242/2260/2280 storage devices support (SATA mode) AMD X470 chipset : 4 x SATA
6Gb/s port(s), Support Raid 0, 1, 10
Video Output
HDMI ports
