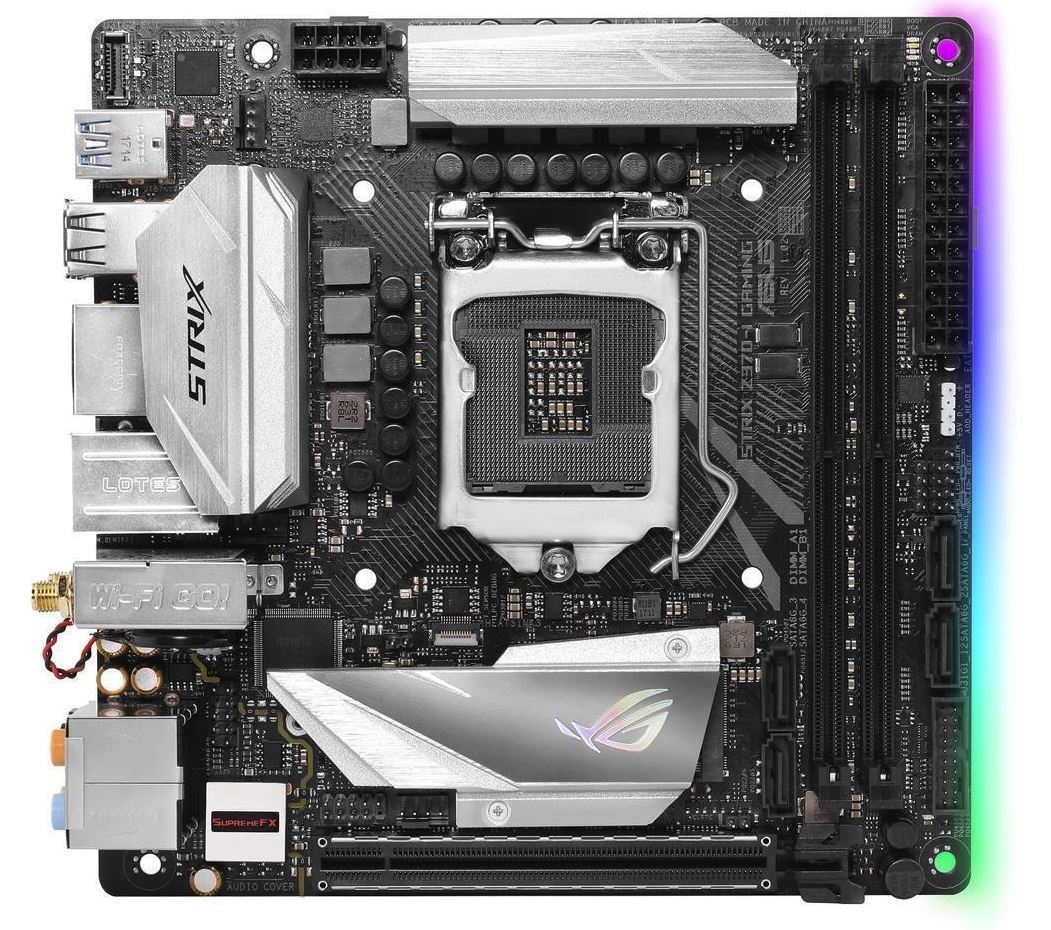

Intel Z370 mini-ITX gaming motherboard with Addressable AURA sync RGB LED lighting, 802.11ac Wi-Fi, DDR4 4333MHz support, dual M.2, SATA 6Gbps and a USB 3.1 Gen 2 front-panel connector
- LGA1151 socket for 8th -gen Intel® Core™ desktop processors.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
- Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
- Gaming connectivity: Onboard dual M.2 slots for up to 32 Gbps of PCIe bandwidth and a USB 3.1 Gen 2 front panel connector.
- Gaming networking: Intel Gigabit Ethernet, LANGuard, GameFirst and 2×2 802.11ac Wi-Fi with MU-MIMO support.
- Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance.
With aesthetics inspired by the sharpest blades and premium colorways to match any mood, the all-new ROG Strix Z370 motherboards are ready to do battle — and infused with all the essential ROG engineering needed to push performance as far as you dare. Ready for the latest 8th Generation Intel® Core™ processors, ROG Strix Z370-I Gaming is loaded with overclocking and cooling innovations to keep your gaming rig's thermals in check as you turn up the clock. Factor in custom Aura RGB illumination and superior SupremeFX audio and you'll know that ROG Strix Z370-I Gaming looks great and sounds amazing — and outperforms every expectation to dominate your game!
CUSTOMIZATION
ROG Strix Z370-I Gaming looks as good as it performs, with built-in RGB
illumination, it's perfect for the style-conscious part of your
personality!
OUTSHINE THE COMPETITION
Create your own custom LED lighting effects with the intuitive Aura software.
Cast a stunning multi-color glow across your build with the powerful RGB LEDs
built in to ROG Strix Z370-I Gaming, or attach separate addressable RGB strip
using the onboard 3-pin header. You can even use both at the same time and enjoy
perfect lighting synchronization. Fire up Aura and enjoy the creative freedom of
twelve different lighting themes.
INFINITE LIGHTING POSSIBILITIES
ASUS Aura Sync RGB LED technology makes ROG Strix Z370-I Gaming the control hub
for your illumination ambitions — so it's easy to synchronize incredible
lighting effects between compatible components, including RGB LED strips,
graphics cards, keyboards and even mice! Change all LEDs in unison or employ
dynamic modes to flow the illumination effects smoothly across all synchronized
devices
PERFORMANCE
ROG Strix Z370-I Gaming rocks core ROG features to help you max out all aspects
of system performance, handing you the tools needed to realize your
system's true potential.
DOUBLE DECKER HEATSINK
ROG Strix Z370-I Gaming has an innovative double-decker heatsink design that
allows the M.2 SSD to be stacked atop of the PCH heat sink, which is then
topped off with an additional metal heatsink for the M.2 drive. The two
heatsinks are thermally isolated to prevent the PCH and M.2 from affecting each
other. The double decker design not only cleverly maximizes the board space on
miniITX board, but also dramatically improves heat dissipation, cooling the
M.2 SSD by up to 20°C for better stability and enhanced gaming performance
while featuring a stylish angular design to enhance the look of ROG Strix
Z370-I Gaming builds.
Specifications
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A – Dual Headphone
Amplifiers – Impedance sense for front and rear headphone outputs –
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High
quality 120 dB SNR stereo playback output and 113 dB SNR recording input –
SupremeFX Shielding Technology – Supports up to 32-Bit/192kHz playback Audio
Feature : – Optical S/PDIF out port(s) at back panel – Sonic Radar
III – Sonic Studio III
Chipset
Intel® Z370
Form Factor
Mini-ITX
LAN
Intel® I219V Anti-surge LANGuard ROG GameFirst Technology
Memory/Type/Bus/Max. 2XDIMM/DDR4/4333 MHz/32GB
Other I/O Connectors

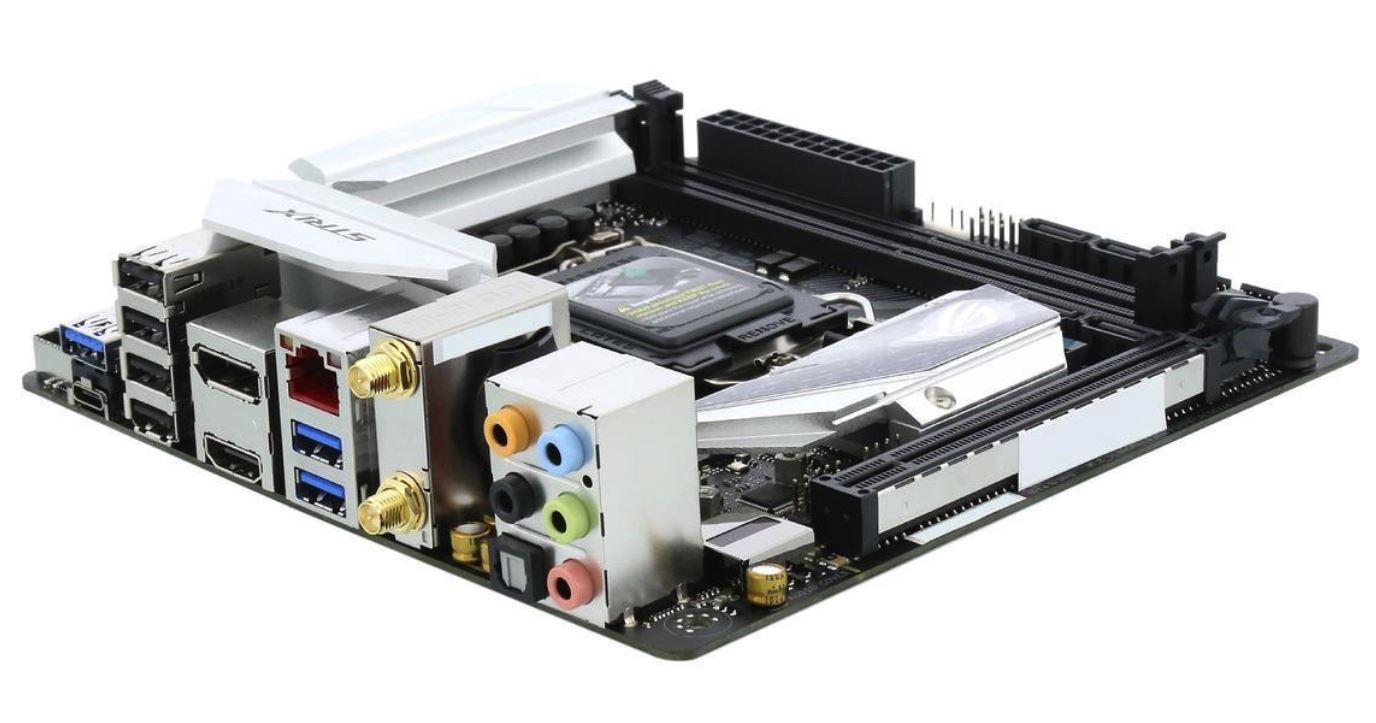

1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 4 x USB
2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS 2×2 Wi-Fi
802.11 a/b/g/n/ac and Bluetooth v4.2 module
PCI Slots
Processor Support
8th Generation Core™ Processors
Raid
0, 1, 5, 10
Socket
Intel LGA1151
Storage Interface
Intel® Z370 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280
storage devices support (SATA & PCIE 3.0 × 4 mode)*1 1 x M.2 Socket 3,
, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 × 4
mode)*1 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage
Technology supports Supports Intel® Smart Response Technology*2 Intel®
Optane™ Memory Ready *3
Video Output
HDMI/DisplayPort ports
