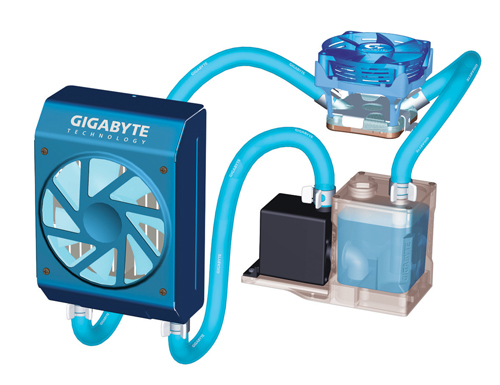

GIGABYTE TECHNOLOGY introduce the new 3D Galaxy liquid cooling system, the company’s first generation water cooler for PC enthusiasts and extreme gamers. The new 3D Galaxy is designed to cool the most advanced high-performance PC processors from both Intel® and AMD with a minimum of noise and risk of overheating with unique features such as LWP (Low Water Protection) and OHP (Over Heating Protection).

Features:

* Large, pure copper base employs unique water road design
* Long-life, quiet and powerful ceramic bearing pump
* Low water-level (LWP) and over-temperature protection (OTP) (Patent pending)
* Clear blue LED tank for straightforward coolant refilling
* Large aluminum radiator with 4-parts water road design
* Special aluminum fan cover enhances thermal dissipation
* Radiator installs easily onto most PC chassis
* Multi-purpose Nano-scale GIGABYTE coolant
* 1/2 inch special UV tubing material allows for extreme angling and flexing
* Fully compliant with MOSFET thermal function (Patent pending)
* Optional thermal partner: Gigabyte chassis 3D AURORA (GZ-FSCA1-AN / GZ-FSCA1-SN)

Specifications:

Waterblock
Dimensions 68 x 92 x 30 mm
Material Cu base+ PC cover
MOSFET Compliant Yes

Pump
Dimensions 61 x 60 x 46 mm
Maximum Capacity 400 L/hr
Noise 20 dBA below
Bearing Ceramic Bearing

Radiator
Dimensions 125 x 197 x 64 mm
Material Aluminum
Fan size 120 x 120 x 25 mm
Fan Connector 3 pin

Tank
Dimensions 75 x 75 x 92 mm
Capacity 300cc.

Tube
Dimensions 1/2 inch
Material PVC

Coolant
Capacity 600cc.
Color Lite Blue

Compatible CPU
Intel® Pentium® 4 Processor 870/670/570 (3.8GHZ)
Intel® Pentium®4 478 3.4GHz
AMD AthlonTM FX59 (939/754)
AMD AthlonTM 64 4800+ (939/754)
