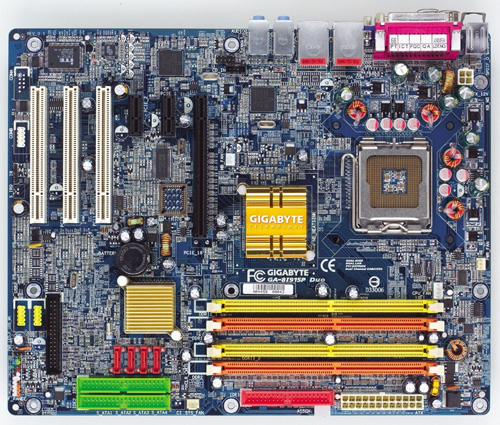

Gigabyte Motherboard GA-8I915P Duo LGA 775

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!
Sorry, this product is no longer available to order


GA-8I915P Duo member of GIGABYTE PX series skillfully designed with pack of features and dedicated to satisfying the needs of platform performance to the extreme. Experience next-generation processing with the latest LGA 775 Intel® Pentium® 4 Processor with Hyper-Threading Technolgy! The GA-8I915P Duo supports both DDR & DDR2 main memory providing a more flexible memory usage and ready for future memory upgrades.

The GA-8I915P Duo provides an broad range of peripheral connections by offering high speed Serial ATA for connection of storage devices, and USB 2.0 for high-speed data transfer. The GA-8I915P Duo also offers multimedia advancements through PCI-Express for outstanding graphics output, doubling that of the current AGP8X interface. For improved networking, Gigabit LAN provides LAN connection at a blazing fast network connection speed of up to 1,000 Mbps. Along with top-notch hardware is the addition of the GIGABYTE Shieldware. Shieldware includes 8 unique software feature elements that are easy to use and focused on making computing both simple and straightforward. Finally to round off the GA-8I915P Duo is home theater-quality sound with your PC using Intel® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.

Intel® 915P Express Chipset
The new Intel® 915P Express chipset with Hyper-Threading Technology delivers significant perfomance gains with variety of new generation architectures including dual-channel DDR2 main memory, PCI-Express inteface, Serial-ATA interface for improving storage performance.

Supports LGA 775 Intel® Pentium® 4 Processor with HT Technology
With new 90nm technology, the world's most advanced chip-making process, it delivers significant gains in performance through the combination of lower-power transistors, strained silicon, high-speed copper interconnects and a new low-k dielectric material.

Duo DDR Design
Top innovation of showing GIGABYTE advanced technology leadership with combination of DDR & DDR2 memory support on single motherboard. Providing a more flexible memory connectivity to meet different user's needs.

PCI Express Interface
Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface delivers the utmost graphics experience, PCI-E x1interface delivers twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.

Gigabit LAN connectivity
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.

Serial ATA Interface
Serial ATA provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.

IDE RAID Controller
Supporting RAID (0, 1, 0+1), JBOD function and ATA133 interface, delivers completely solution for storage interface to increase fault tolerance, improve data access performance and provides additional interface for more IDE devices.

Intel High Definition Audio
Experience home theater-quality sound with your PC using Intel® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.

A solid pack of unique software features focused on performing important system essentials with speed and ease. Find out what these great features can do for your system!


1. LGA 775 for Pentium® 4 Processor

1. Northbridge : Intel® 915P
2. Southbridge : Intel® ICH6
3. Integrated Peripherals :
1. Broadcom PCIe X1 Gigabit Ethernet controller
2. Marvell 8001 Gigabit Ethernet controller
3. C-Media 9880 audio codec
4. VIA VT6410 RAID controller

Front Side Bus
1. 800 / 533 MHz FSB

1. Type: Dual Channel DDR2 533/400 Dual Channel DDR 400/333
2. Max capacity: 4 GB
3. DIMM slots: 4

Internal I/O Connectors
1. 4 x Serial ATA connectors
2. 2 x USB 2.0 connectors (4 ports by cable)
3. 1 x FDD connector
4. 1 x UltraDMA 100/66 IDE
5. 2 x UltraDMA 133 IDE
6. 1 x COM port connector
7. 3 x cooling fan pin headers
8. 1 x CD in
9. 1 x 24-pin ATX Power connector
10. 1 x 4-pin ATX 12V Power connector

Expansion Slots
1. 1 x PCIe X 16 slot
2. 2 x PCIe X 1 slots
3. 3 x PCI slots

Rear Panel I/O
1. 4 x USB 2.0 ports
2. 1 x RJ45 LAN port
3. 2 x S/P DIF jacks (In/Out)
4. 6 x Audio jacks (7.1-Ch Out / Line-in / Mic in)
5. 1 x LPT port
6. 2 x PS/2 ports(Keyboard/Mouse)

Form Factor
1. ATX
2. 30.5cm x 24.4cm

H/W Monitoring
1. ITE 8712F
2. System health status auto-detect and report by BIOS
3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.

1. 1 x 3M bit flash ROM

Other Features
1. C.I.A. 2 (CPU Intelligent Accelerator 2)
2. M.I.B. 2 (Memory Intelligent Booster 2)
3. EasyTune 5
4. M.I.T. (Motherboard Intelligent Tweaker)
5. Download Center
6. S.O.S. (System Overclock Saver)
7. C.O.M. (Corporate Online Management)
8. Miracle of Xpress3

Bundle Software
1. Norton Internet Security 2004
1. Norton Anti Virus
2. Norton Personal Firewall
3. Norton Privacy Control
4. Norton Parental Control
5. Norton Spam Alert

2. GIGABYTE Windows Utility Manager
3. Adobe Acrobat Reader
Release date Australia
August 31st, 2005
Manufacturer code:
Manufacturer Code
Product ID
