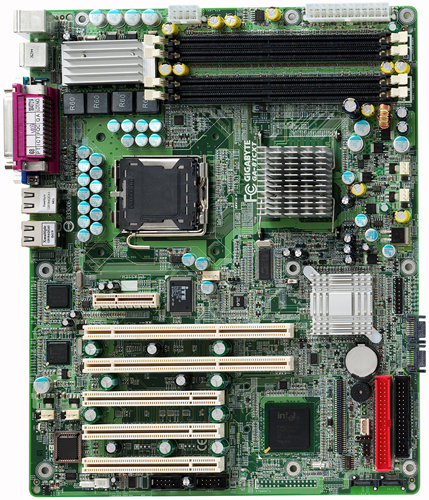

Gigabyte Motherboard Server Intel LGA775 GA-8ICXT

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!
Sorry, this product is not currently available to order


Processor Supported
* Single Intel® Pentium Prescott LGA 775 processor with L2 cache
* Supports 800MHz/Socket 775

ChipSet Description
* Intel® MCH E7221
* Intel® 6702 PXH-V
* Intel® ICH6R

System Memory
* 4 x Dual Channel Un-Buffered DDR-333/400 Module
* Max. memory capacity up to 4 GB
* Support 256MB, 512MB, and 1GB memory
* Supports ECC

System BIOS
* Phoenix® BIOS with 4Mb flash RAM
* ACPI1.1,DMI,WFM, PXE, Plug & Play, AC Power Recovery

Integrated Video Controller
* Built-In ATI® Rage XL video chip with 8MB memory

Support RAID Function
* Raid 0/1 by Intel ®ICH6R I/O controller (Adaptec SATA HostRaid)

Integrated Network
* Build in dual Intel® 82541PI Gigabit Ethernet
* Adapter Fault Tolerance (AFT)
* Adaptive Load Balancing (ALB)

Integrated Super I/O Controller
* ITE®IT8712F-A

I/O Connectors
* 2 x PS/2
* 1 x Parallel Port
* 2 x USB 2.0
* 1 x COM
* 1 x VGA
* 2 x LAN RJ45

Expansion Slot
* 1 PCI-Express X4 Slot
* 2 PCI-X 64-bit/66~100MHz Slots
* 3 PCI 32bit/33MHz Slots

Board Dimension
* ATX Form Factor
* 12"W x 9.6"D
Release date Australia
August 31st, 2005
