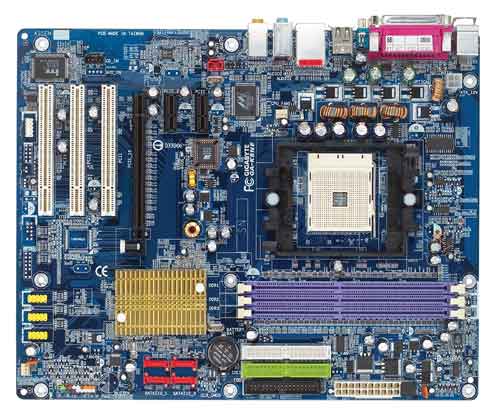

The latest GA-K8NE is the most cost effective solution for AMD Athlon64/ Sempron platform. Accompanied with the innovative designs of AMD64 technology, the advanced NVIDIA nForce4 Media and Communication Processors (MCPS) contributes to functionality and stability of this platform. The brand new PCI-Express interface provides scalable bandwidth for high performance graphics cards and new generation I/O peripheral devices as well. Serial ATA interface enhances storage performance. The high speed Gigabit Ethernet interface delivers the efficient broadband connection to the internet. The high quality 8-channel audio ensures the enjoyment of multi-media application. Finally, NVIDIA Firewall and Norton Internet Security software is included for security protection. With such an array of leading technology and Gigabyte's unique features, users are sure to get the most value from the GA-K8NE.
AMD AthlonTM64 / Sempron Processor
The leading-edge performance and unparallel technology of the 8th generation AMD AthlonTM64 processor has built its strength on the well-known AMD64 framework which consisted of 64-bit computing platform, HyperTransport Technology, and integrated memory controller. With improved HyperTransport interface and DDR400, the innovative processor design ensures superior performance on mission critical business applications.
PCI Express Interface
Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
Integrated DDR memory controller
The AMD AthlonTM 64 processor improves the memory performance by integrating a DDR memory controller into the processor. By running at the processor's core frequency, an integrated memory controller greatly increases bandwidth directly available to the processor at significantly reduced latencies.
Gigabit Ethernet Connection
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.
NVIDIA Firewall Support
NVIDIA Firewall protects your PC from intruders by filtering unauthorized traffic. This brand new firewall provides solid protection while reduces the firewall's CPU utilization and improves networking throughput & performance. Certificated by ICSA Lab, NVIDIA Firewall provides professional-graded security to your desktop platform.
Serial ATA with RAID 0,1,0+1 function
Serial ATA is the revolutionary ATA interface that provides scalable performance for IDE device. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA and delivers superior input/output performance. In addition, the Serial ATA interface is furnished with RAID 0,1,0+1 function for extra performance enhancement and data protection.
8-Channel Audio
Experiences the 3D surround sound through the 8-channel audio solution. The advanced feature fulfills the requirements for a variety of audio applications, such as MP3 or Audio CD playback, DVD movies and gaming thus delivering ideal platform for multimedia solution.
Norton Internet SecurityTM Included
Norton Internet Security is the essential protection from viruses, hackers, and privacy threats. It protects user during the online activities such as e-mailing, shopping, banking, and game playing.
Specifications:
Processor
1. Socket 754 supports AMD Athlon64/ Sempron processors
Chipset
1. NVIDIA nForce4 4X MCPs (media and communication processors)
2. Super I/O: ITE IT8712 chip
3. Integrated peripherials
1. Marvell 88E1111 Gigabit LAN PHY chip
2. Realtek ALC850 Audio AC'97 Codec
Memory
1. Type: DDR400/ 333/ 266 -184pin
2. Max capacity: Up to 3GB by 3 DIMM slots
Internal I/O Connectors
1. 4 x Serial ATA connector
2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
3. 1 x FDD connector
4. 3 x USB 2.0/1.1 connectors (supports 6 ports)
5. 3 x cooling fan pin headers
6. CD in
Expansion Slots
1. 1 x PCI-Express X 16 slot, supports PCI-Express interface Graphics card
2. 2 x PCI-Express X 1 slots
3. 3 x PCI slots (PCI 2.3 compliant)
Rear Panel I/O
1. 4 x USB 2.0/1.1 ports
2. 1 x RJ45 ports
3. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connector
4. Coaxial S/PDIF input/ output function
5. PS/2 Keyboard/ Mouse
6. 1 x COM port
7. 1 x LPT
CPU/AGP/DIMM setting
1. CPU HT / Multiplier / Vcore Voltage adjustable via
BIOS
2. PCI-ExpessX16 Voltage / Clock adjustable via BIOS
3. DIMM Voltage / Clock adjustable via BIOS
Power
1. ATX power connector and ATX 12V connector
2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
Form Factor
1. ATX form factor
2. 30.5 x 24.4 cm
H/W Monitoring
1. System health status auto-detect and report by BIOS
2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
BIOS
1. 2M bit flash ROM
Other Features
1. Support NVIDIA Firewall
2. Norton Internet Security
3. XpressTM Installation
4. XpressTM Recovery
5. Q-FlashTM
6. @BIOSTM
