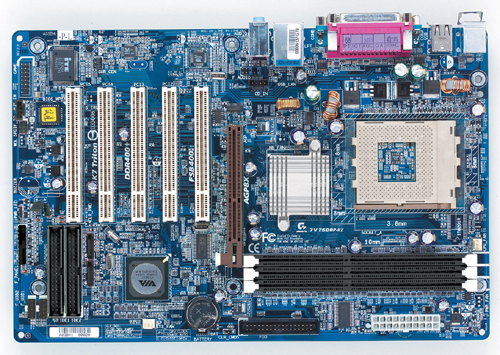

The 7VT600P-RZ is a great solution for the latest AMD Athlon XP 400FSB processor. Equipped with VIA's latest Apollo KT600/VT8237 chipset and a number of features, the 7VT600-P-RZ delivers a full-functioning platform with excellent performance. The Apollo KT600 is the successor of market-leading chipsets for the AMD K7 platform. It comes with a complete set of today's cutting-edge features and combined with VIA's brand new FastStream64 memory controller technology, offers superior performance. The DDR400 memory support as well as the advanced 400MHz processor bus unleash the full power of AMD Athlon XP processors. The AGP 8X graphics aims at deriving maximum performance from the most powerful graphics accelerators. In addition, the new generation Serial-ATA interface with RAID function delivers superior input/output performance and solid data protection. The USB 2.0 and 6-channel audio are equipped to provide a complete solution for platforms used in both the home and office environment. The 7VT600P-RZ is definitely rated as the uppermost platform with its astonishing performance across a full spectrum of applications.
Features:
Product Description Gigabyte 7VT600P-RZ - mainboard - ATX - KT600
Form Factor ATX
Dimensions (WxDxH) 30.5 cm x 20 cm
Processor 0 ( 1 ) - Socket A
Networking Network adapter - Ethernet, Fast Ethernet
Product Type Mainboard
Chipset Type VIA Apollo KT600
Max Bus Speed 400 MHz
Compatible Processors Athlon, Duron, Athlon XP
RAM 0 MB (installed) / 3 GB (max)
Storage Controller ATA-133, Serial ATA-150 (RAID)
Audio Output Sound card - VIA VT8237
Supported RAM Technology DDR SDRAM
Detailed Specification:
General:
Product Type Mainboard
Form Factor ATX
Width 30.5 cm
Depth 20 cm
Compatible Processors Athlon, Duron, Athlon XP
Processor Socket Socket A
Chipset Type VIA Apollo KT600
Max Bus Speed 400 MHz
BIOS Type Award
Storage Controller ATA-133, Serial ATA-150 (RAID)
Processor:
Installed Qty (Max Supported) 0 ( 1 )
Memory:
Supported RAM Technology DDR SDRAM
RAM Installed ( Max ) 0 MB / 3 GB (max)
Supported RAM Speed PC2100, PC2700, PC3200
Audio:
Audio Output Sound card
Signal Processor VIA VT8237
Audio Codec Realtek ALC655
Compliant Standards AC '97
Telecom / Networking:
Networking Network adapter - Ethernet, Fast Ethernet
Features:
Hardware Monitoring CPU core temperature, CPU fan tachometer, CPU overheating protection, CPU core voltage
Hardware Features Q-Flash
Expansion / Connectivity:
Expansion Slots Total (Free) 1 ( 1 ) x processor - Socket A ¦ 3 ( 3 ) x memory - DIMM 184-PIN ¦ 1 ( 1 ) x AGP 8x ¦ 5 ( 5 ) x PCI
Storage Interfaces Serial ATA-150 - connector(s): 2 x 7pin Serial ATA ¦ ATA-133 - connector(s): 2 x 40pin IDC
Interfaces 1 x storage - floppy interface - 34 PIN IDC ¦ 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) ¦ 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) ¦ 4 x Hi-Speed USB - 4 PIN USB Type A ¦ 2 x serial - RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) ¦ 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x audio - line-out - mini-phone stereo 3.5 mm ¦ 1 x audio - line-In - mini-phone stereo 3.5 mm ¦ 1 x microphone - input - mini-phone 3.5mm
Additional Connectors (Optional) 4 x Hi-Speed USB
