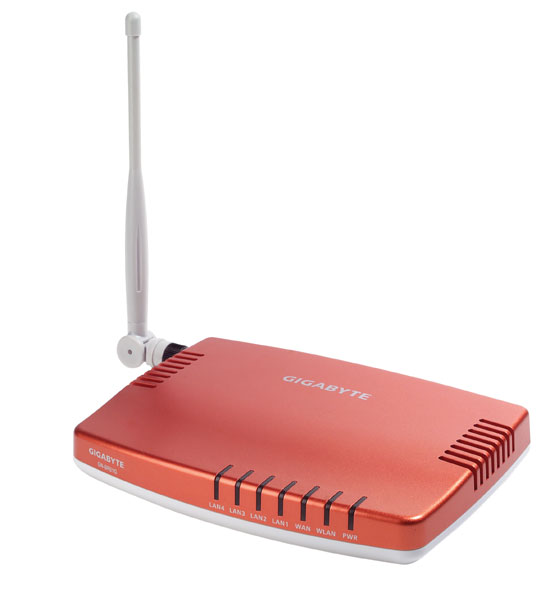

The AirCruiser G Router is a smart choice for first-time wireless users, offering a complete range of wireless networking features that are ideally suited for smaller office and home environments. The GNBR01G is fully compliant with 802.11b and 802.11g specifications so it accommodates wireless client connectivity with either wireless network technology. It comes equipped with four 10/100Mbps Ethernet LAN ports that are auto-sensing and auto-MDIX, allowing the switch to automatically detect and configure the cable type connected to the port. To manage these connections the GN-BR01G has a built-in DHCP server to auto-assign IP addresses, plus SmartDHCP Technology exclusively from GIGABYTE ensures that the devices on your network will never be assigned a duplicate address. The GN-BR01G supports several wireless security options including WEP encryption (64/128-bit), 802.1x Authentication and the wireless industry standard Wi-Fi Protected Access (WPA). By employing the highest available wireless security measures, the AirCruiser G Router provides peace of mind that all wireless data and communication are protected. With GIGABYTE’s AirCruiser G Router deployed in your home or office network, you’ll be able to enjoy sharing a broadband Internet connection over a secure wireless network within minutes courtesy of the pre-loaded SmartSetup 3 router configuration software – and all up to 5 times faster than a 802.11b wireless LAN!
Features:
* All-in-one 4-port Ethernet Switch, Router and Access Point
* Wireless Data Rates Up To 54Mbps
* Interoperability With Any 802.11b and 802.11g Wireless Devices
* Security Features: 64/128-bit WEP Encryption, 802.1x Authentication and WPA Support
* Dynamic DNS, URL Blocking and VPN Pass-Through Support
* SmartSetup 3 Built-in – No Installation CD Required
* Wake-On-LAN Support
Specifications:
IEEE Standards
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3
• IEEE 802.3u
Wireless Data Rate Up to 54 Mbps
WAN/LAN Data Rate 10/100 Mbps
Modulation Technology CCK, DBPSK, DQPSK, OFDM
Frequency Range 2.412 to 2.483GHz
Transmit Output Power 18dBm (max)
Security
• 64/128-bit WEP
• WPA
• 802.1x Authentication
Web Management setup Yes
Support DNS Relay Yes
DHCP Server Yes
Support Virtual Server Yes
Support DMZ Yes
Support PPPoE/Dynamic Yes
Protocol support TCP/IP, NAT, UDP, ICMP
UPnP Support Yes
Multi-Languages Yes
Support VPN Yes, pass-through (IPSec/PPTP)
Physical Interface 1 WAN, 4 LAN
Mechanical Type Desk & Wall-mount
Power Supplier External - 7.5V/800mA
Connector Type RJ45
Auto MDI/MDIX Yes
Antenna External Detachable 2 dBi
LED Indicators Power/Status, WLAN, LAN*4, WAN*1
Dimension 110*160*25mm
Gross Weight 240+/-5g
Certifications FCC, CE, DGT, SRMC
