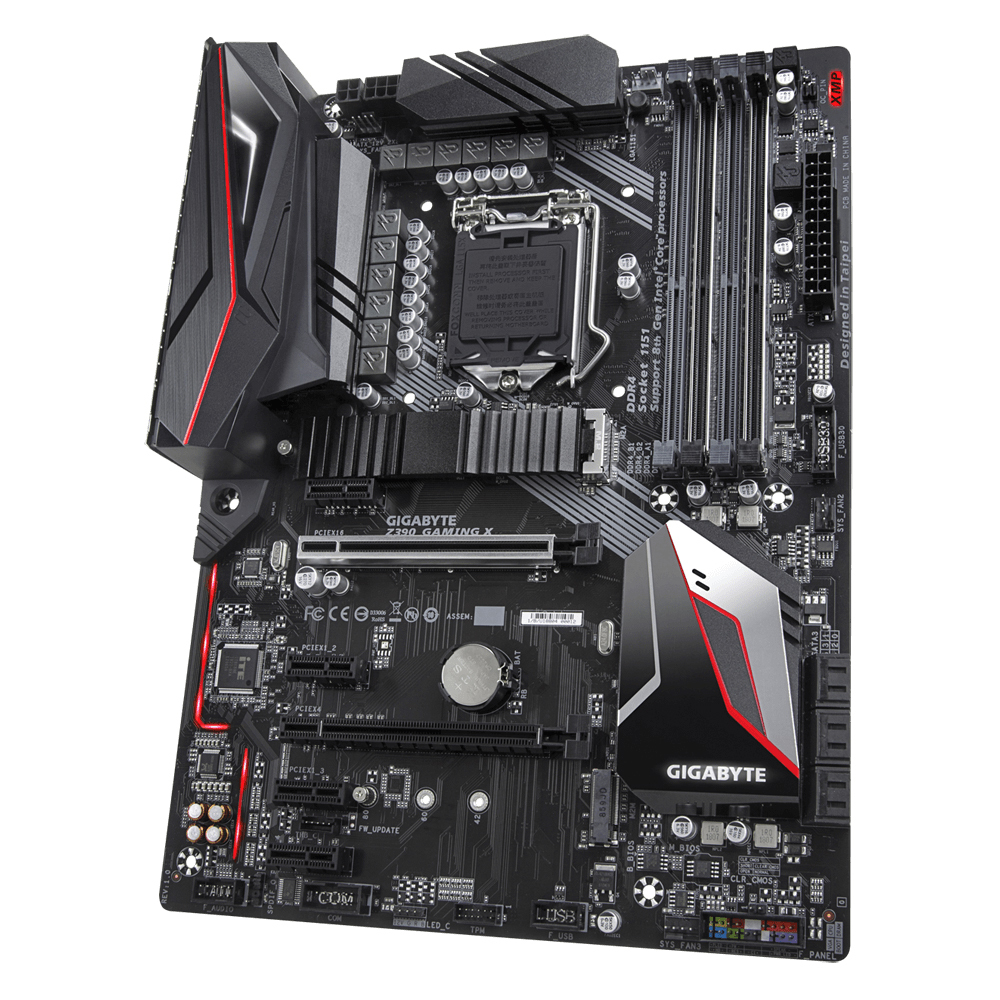

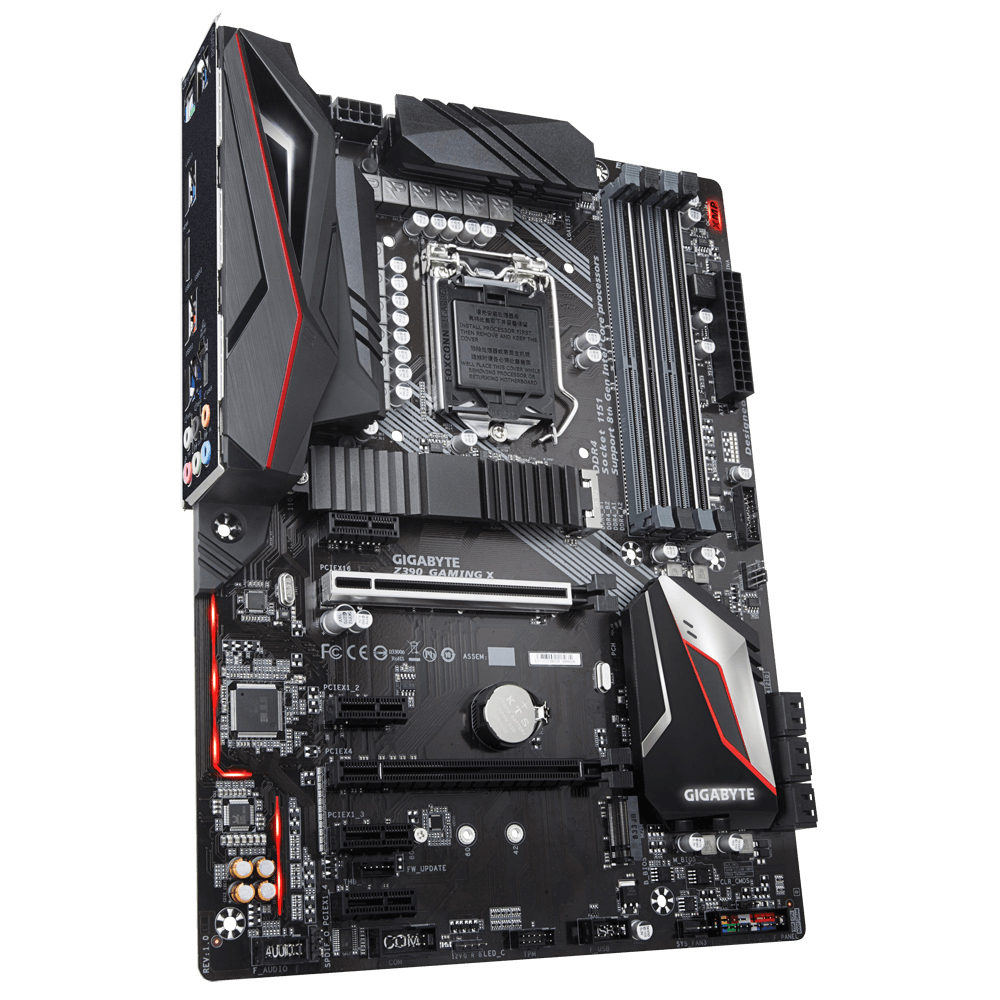

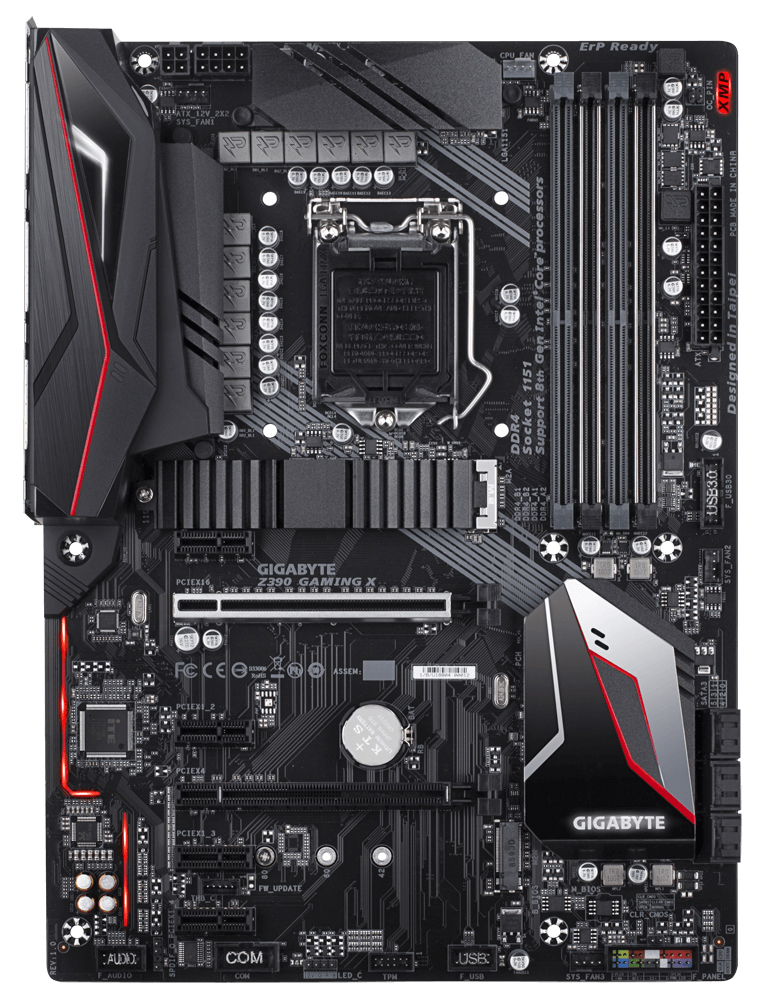

Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A, M.2 Thermal Guard, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable™ Technology, DualBIOS, CEC 2019
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New 10+2 Phases Digital PWM Design
- Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA interface
- 2-Way CrossFire™ Multi-Graphics Support with PCIe Armor and Ultra Durable™ Design
- Intel® Native USB 3.1 Gen2 Type-A
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Support RGB Lighting Effect in Full Colors
- CEC 2019 Ready, Save Power With a Simple Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
- Intel® Optane™ Memory Ready
PERFORMANCE
10*+2 Phases Digital VRM Design with Low RDS(on) MOSFET
Optimized for 8-Core Intel® Core™ CPU
GIGABYTE GAMING series motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest 8-Core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
- Doubled from 5 phases with current balancing.
Pre-installed I/O Shield
With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even
easier.
Support for DDR4 XMP Up to 4000MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper
compatibility with profiles up to 4000MHz and beyond. All users need to do to
attain this performance boost is to ensure that their memory module is XMP
capable and that the XMP function is activated and enabled on their
motherboard.
What is XMP?
DDR4 memory modules are available at a stock frequency of 2133MHz, but as
frequency tweaking requires a considerable amount of effort and knowledge,
memory vendors encode XMP profiles which can automatically modify the timings of
the supported memory modules to work with your CPU and to achieve increased
performance.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming
enthusiasts who demand the highest frame rates without compromising on
resolution.
Immersive VR
Gaming Experience
VR requires more performance than Full HD graphics for a steady 90FPS or greater.
Only Gaming PCs can provide the best VR experience.
Recommended configuration for VR Gaming PC*
■ Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI
1.4 video output
■ CPU: Intel 8th Gen. Core i3 equivalent or greater
■ Motherboard: AORUS/GIGABYTE Z390 motherboards
■ Memory: 8GB RAM or greater
■ USB Ports: 3× USB 3.0 ports plus 1× USB 2.0 port or greater
■ OS: Windows 10 64-bit or newer
To create a seamless VR experience GIGABYTE GAMING Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that GIGABYTE GAMING has the tools you need to start your journey in VR.
CONNECTIVITY
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application
which helps to improve network latency and maintain low ping times to deliver
better responsiveness in crowded LAN environments.
The Industry's Leading LAN Static-Electricity & Surge
Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels
compared to traditional ICs. This helps to better protect the motherboard and
its components against potential damage caused by static electricity. GIGABYTE
motherboards also feature special anti-surge ICs that protect your motherboard,
and your PC from any surge in power delivery that may occur, helping to ensure
that your PC is equipped to deal with any potentially irregular and inconsistent
power delivery.
M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD
devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high
speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Dual-Mode M.2 Slot Design
Support both PCIe NVMe + SATA SSDs
GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA
dual-mode design on both M.2 slots. This configuration is designed for
flexibility and adaptation to fit most users' and gamers' requests.
COOLING
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Support RGB Lighting Effect in Full Color
Personalize your next PC rig to your liking by selecting the color of your
choice to illuminate the external RGB light strip.
AUDIO
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality
capacitors help deliver high resolution and high fidelity audio to provide the
most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates
the board’s sensitive analog audio components from potential noise pollution
at the PCB level. LED trace path lighting Illuminates to show the separation of
the PCB layers.
ULTRA DURABLE
GIGABYTE Patented Double Locking Bracket
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE
reinforces the PCIe connectors to provide the extra strength required to support
heavy graphics cards.
Ultra Durable™ Memory Armor
GIGABYTE exclusive one piece stainless steel shielding design prevents against
PCB distortion/twisting and plate bending, in addition to preventing any
possible ESD interference.
Solid Pin Power Connectors
Z390 motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power
connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
GIGABYTE EXCELLENCE
CEC 2019 Ready
Save power with a simple click
CEC Requirement : PC power consumption must be under a certain level when
it's in off mode, idle mode, stand-by mode. With high power efficiency hardware
components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power
consumption under idle mode and fully comply with new CEC 2019 (California
Energy Commission) power consumption requirement.
CPU
Support for Intel 9000 Processors and 8th Generation Intel® Core™ i7
processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®
Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
Intel® Z390 Express Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC
mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
- Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Audio
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
- For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
4 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe
x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2
SSD support, prepared for Intel® Hybrid SSD) (M2M)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
- Refer to “1–7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™
technologies
USB
Chipset:
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
7 x USB 3.1 Gen 1 ports (5 ports on the back panel, 2 ports available
through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through
the internal USB header)
Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 4-pin ATX 12V power connector
1 × 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module
only)
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x Clear CMOS jumper

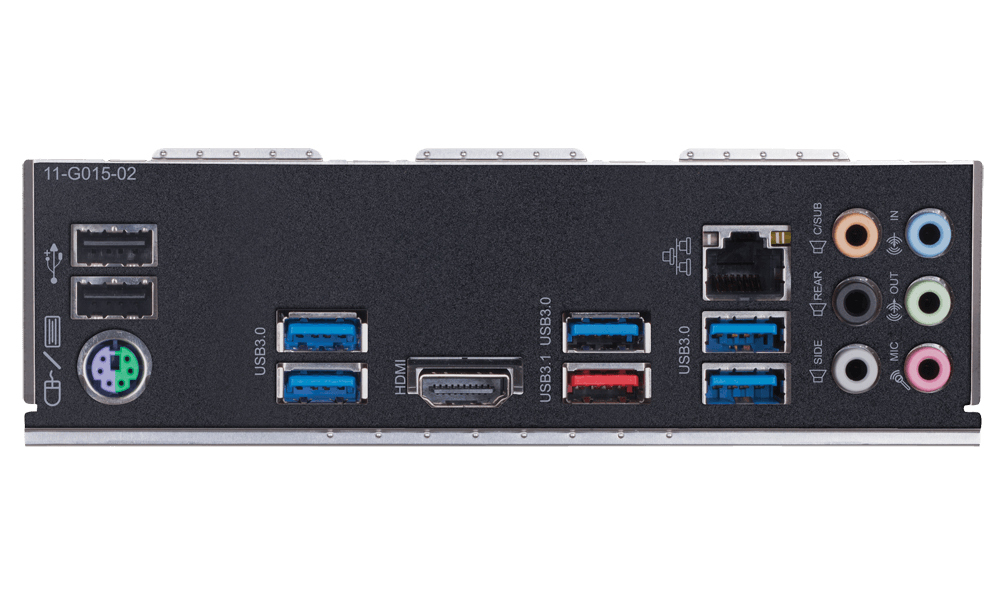

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x USB 3.1 Gen 2 Type-A port (red)
5 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
- Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 × 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
- Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 22.5cm
