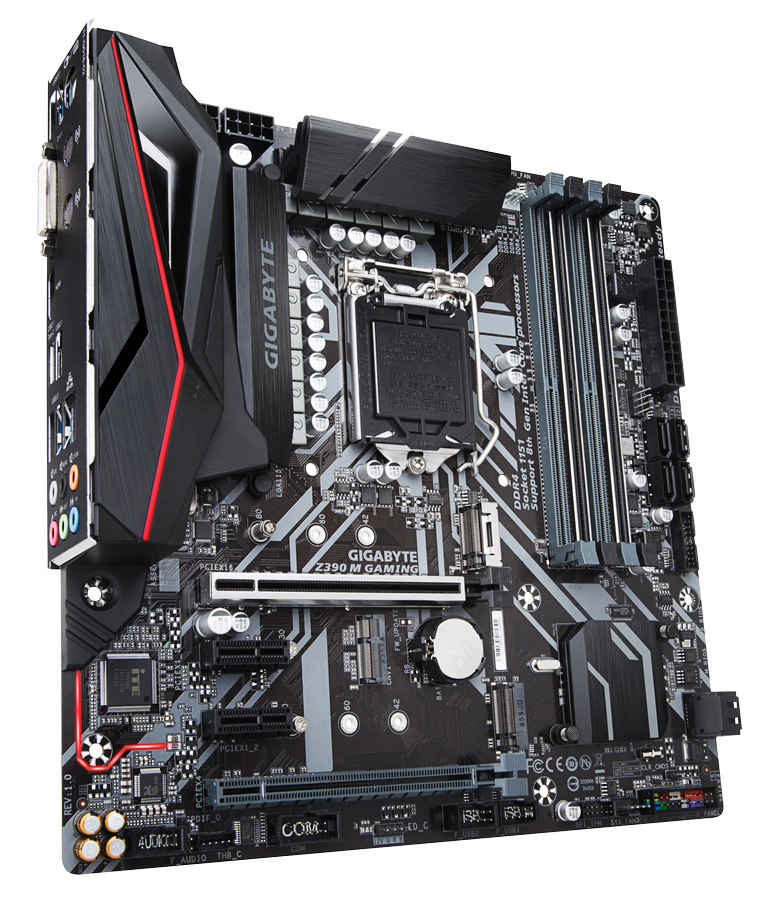

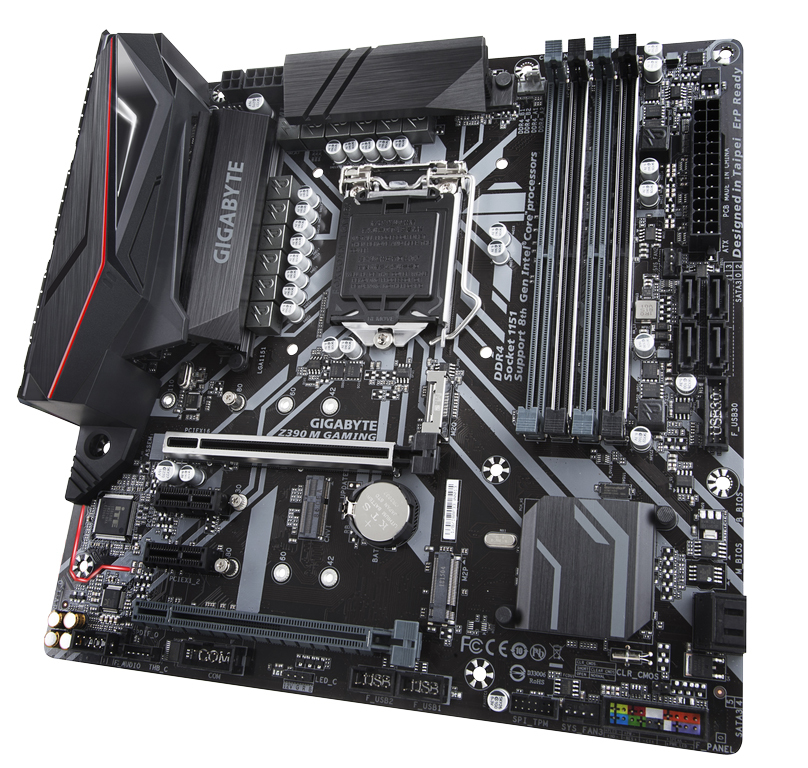

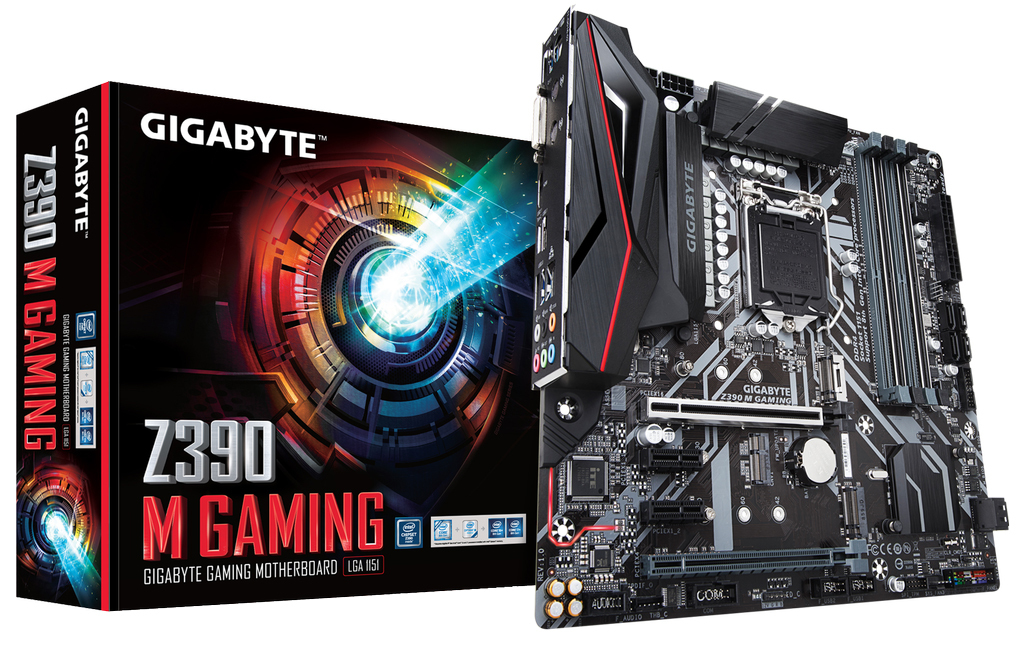

Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A + Type-C, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable™ Technology, CEC 2019
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New 10+2 Phases Digital PWM Design
- High Quality Audio Capacitors
- Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
- Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
- Intel® Native USB 3.1 Gen2 Type-A + Type-C
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Intel® Gigabit LAN with cFosSpeed
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- Support RGB Lighting Effect in Full Colors
- CEC 2019 Ready, Save Power With a Simple Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
- Intel® Optane™ Memory Ready
PERFORMANCE
10*+2 Phases Digital VRM Design with Low RDS(on) MOSFET
Optimized for 8-Core Intel® Core™ CPU
GIGABYTE GAMING series motherboards use a 10*+2 phase PWM+ Lower RDS(on) MOSFETs design to support the latest 8-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Pre-installed I/O Shield
With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even
easier.
Support for DDR4 XMP Up to 4000MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper
compatibility with profiles up to 4000MHz and beyond. All users need to do to
attain this performance boost is to ensure that their memory module is XMP
capable and that the XMP function is activated and enabled on their
motherboard.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming
enthusiasts who demand the highest frame rates without compromising on
resolution.
Immersive VR
Gaming Experience
VR requires more performance than Full HD graphics for a steady 90FPS or greater.
Only Gaming PCs can provide the best VR experience.
Recommended configuration for VR Gaming PC*
■ Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI
1.4 video output
■ CPU: Intel 8th Gen. Core i3 equivalent or greater
■ Motherboard: AORUS/GIGABYTE Z390 motherboards
■ Memory: 8GB RAM or greater
■ USB Ports: 3× USB 3.0 ports plus 1× USB 2.0 port or greater
■ OS: Windows 10 64-bit or newer
To create a seamless VR experience GIGABYTE GAMING Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that GIGABYTE GAMING has the tools you need to start your journey in VR.
Support RGB Lighting Effect in Full Color
Personalize your next PC rig to your liking by selecting the color of your
choice to illuminate the external RGB light strip.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality
capacitors help deliver high resolution and high fidelity audio to provide the
most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates
the board’s sensitive analog audio components from potential noise pollution
at the PCB level. LED trace path lighting Illuminates to show the separation of
the PCB layers.
CONNECTIVITY
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application
which helps to improve network latency and maintain low ping times to deliver
better responsiveness in crowded LAN environments.
The Industry's Leading LAN Static-Electricity & Surge
Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels
compared to traditional ICs. This helps to better protect the motherboard and
its components against potential damage caused by static electricity. GIGABYTE
motherboards also feature special anti-surge ICs that protect your motherboard,
and your PC from any surge in power delivery that may occur, helping to ensure
that your PC is equipped to deal with any potentially irregular and inconsistent
power delivery.
Dual-Mode M.2 Slot Design
Support PCIe NVMe + SATA SSDs
GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA
dual-mode design on M.2 slots. This configuration is designed for flexibility
and adaptation to fit most users' and gamers' requests.
COOLING
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.
CPU
Support for Intel 9000 Processors and 8th Generation Intel® Core™ i7
processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®
Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
Intel® Z390 Express Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC
mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
- The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
- Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Audio
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
- For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi (CNVI)
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD
support, prepared for Intel® Hybrid SSD) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2
SSD support) (M2P)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
- Refer to “1–7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available
through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
1 × 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (SPI_TPM) header
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x Clear CMOS jumper

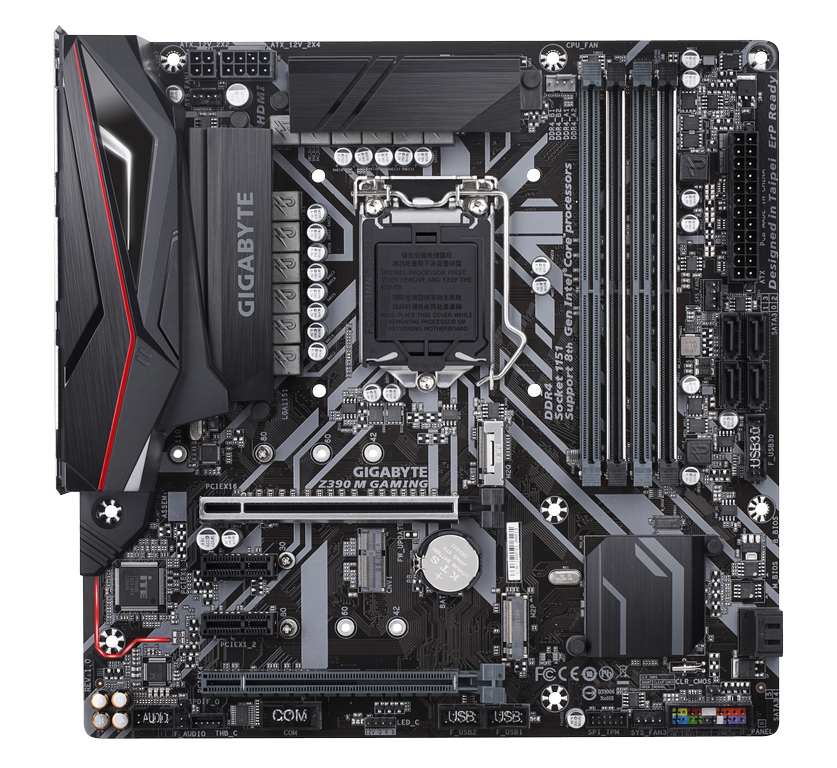

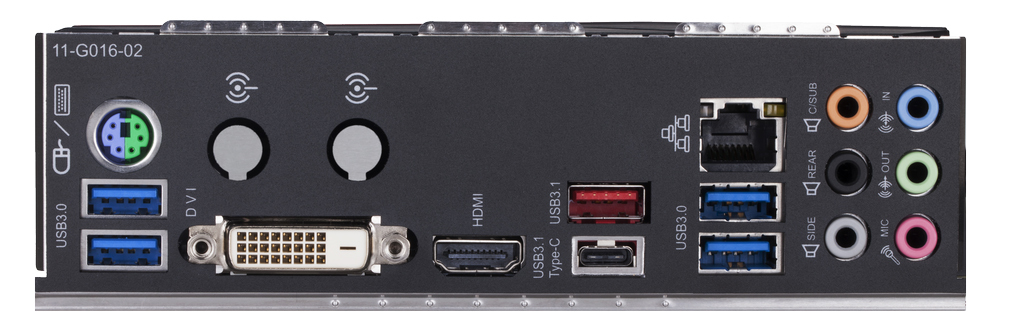

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI ports
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 ports
1 x RJ-45 port
6 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
*Whether the fan speed control function is supported will depend on the cooler
you install.
BIOS
2 × 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
- Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
