Noctua NH-L9x65 HTPC CPU Cooler

Customer rating

Click to share your rating 1 rating (5.0/5.0 average) Thanks for your vote!

Share this product

Save $14.00
$84.99 was $98.99
or 4 payments of $21.25 with Learn more
Hurry! Only 3 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships today!

Availability

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • 17-18 October using Express Delivery
    Mighty Ape can deliver this product within 1-2 business days (usually overnight) to urban centres across Australia, and some remote areas. Learn more
  • 18-22 October using standard courier delivery

Customer reviews

5.0 out of 5 stars Based on 1 Customer Ratings

5 star
(1)
4 star
(0)
3 star
(0)
2 star
(0)
1 star
(0)
Write a Review
"Excellent"
5 stars"
Purchased on Mighty Ape

A great cooler for my mini-ITX build in a Lian Li PC-Q03 case. Keeps the i5–8600 cool in this tiny case with no case fans. I've modded the PSU with a 3000rpm 120mm noctua pwm fan fed off the evga motherboard and flipped the cpu fan upside down so it blows directly into the psu fan. This throws the cpu heat right out the psu vent, the 3000rpm gets noisy as it's rejecting heat from the GTX1070 jammed in there too. The NH-L9×65 keeps the CPU under 65C (mostly) in SWBF2 at ultra settings. The GTX1070 needs some more air so the hole saw is coming out soon to let more air into the fan intake.

Description

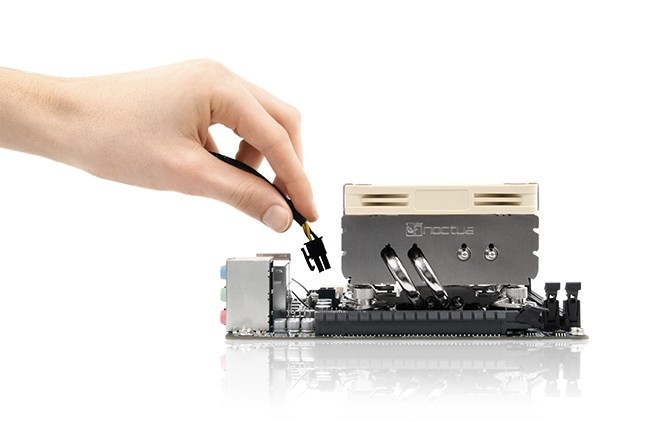

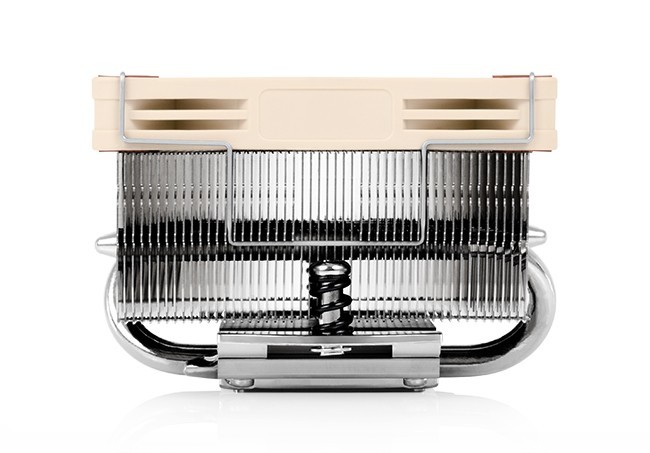

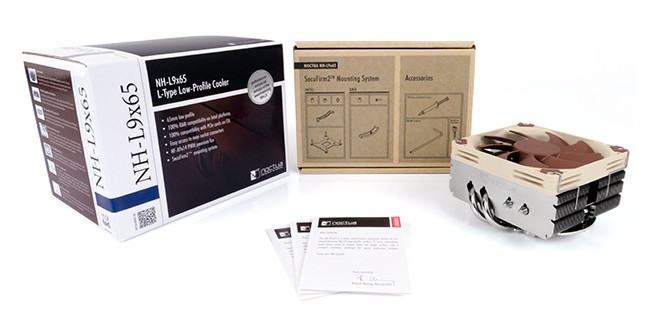

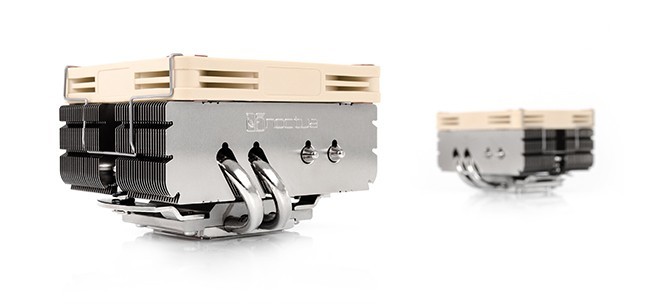

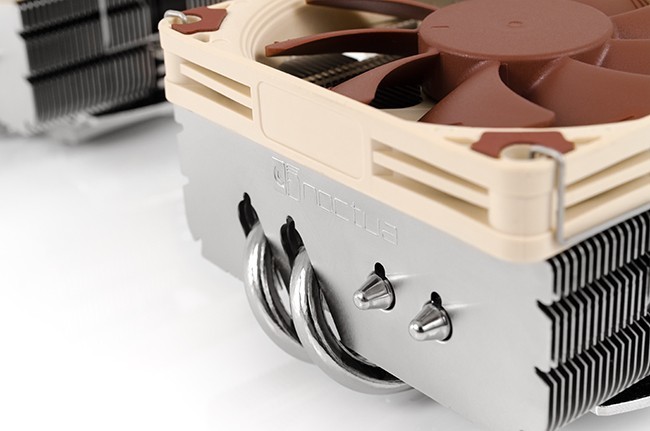

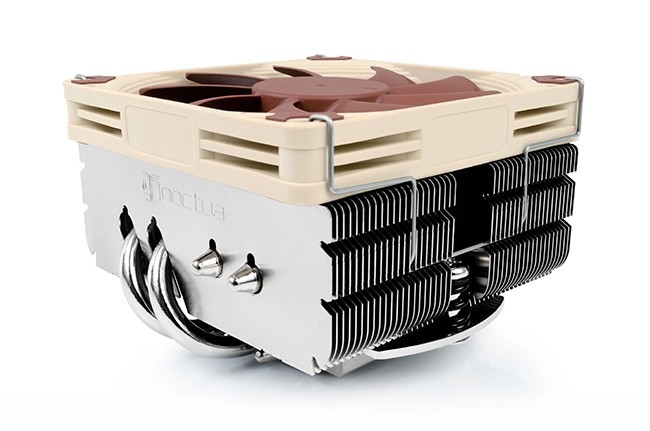

The NH-L9×65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers.

With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9×65 is more powerful than its smaller siblings yet retains their 95×95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors.

Thanks to the highly optimised NF-A9×14 premium fan that supports fully automatic speed control via PWM, the NH-L9×65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s wa­rranty, the NH-L9×65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.

Caution: The NH-L9×65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9×65 is recommended for your CPU.

Specifications:

  • Model: Noctua NF-A9×14 PWM
  • Bearing: SSO2
  • Max. Rotational Speed: (+/- 10%) 2500 RPM
  • Max. Rotational Speed with L.N.A.: (+/- 10%) 1800 RPM
  • Min. Rotational Speed (PWM, +/-20%) 600 RPM
  • Max. Airflow: 57,5 m³/h
  • Max. Airflow with L.N.A.: 40,8 m³/h
  • Max. Acoustical Noise: 23,6 dB(A)
  • Max. Acoustical Noise with L.N.A.: 14,8 dB(A)
  • Input Power: 2,52 W
  • Voltage Range: 12 V
  • MTBF: > 150.000 h
  • Fan compatibility: 92×92×14, 92×92×25
  • Socket compatibility: Intel LGA2011–0 & LGA2011–3(Square ILM), LGA1156, LGA1155, LGA1150, LGA1151 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)
  • Dimensions (Without Fan): 51 × 95 × 95mm (340g)
  • Dimensions (With Fan): 65 × 95 × 95mm (413g)
Release date Australia
March 17th, 2017
Manufacturer code:
NH-L9x65
Brand
Manufacturer
Box Dimensions (mm)
185x136x135
UPC
842431012517
Product ID
26748708
