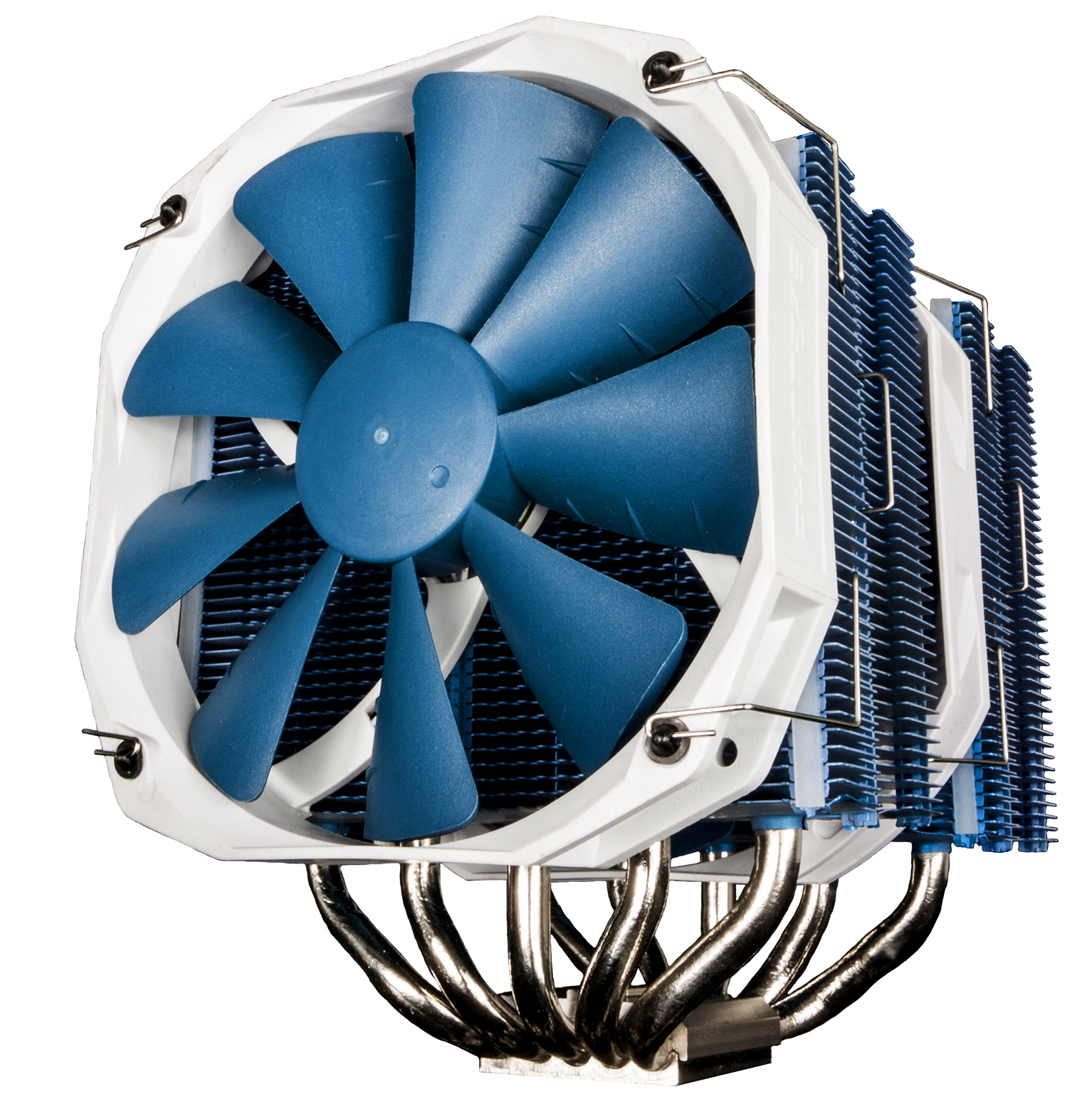

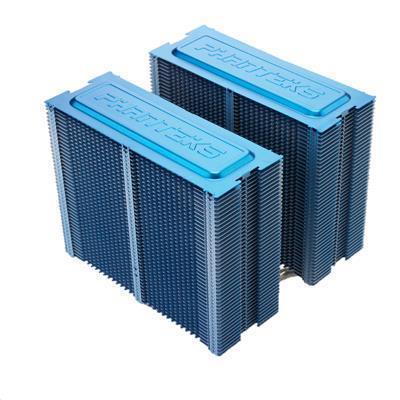

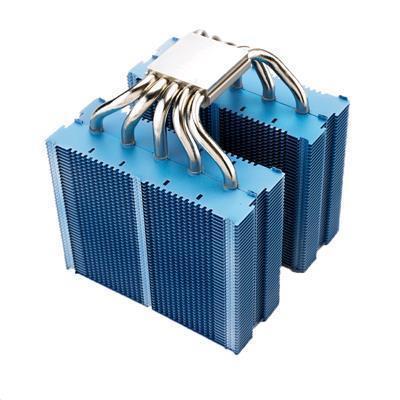

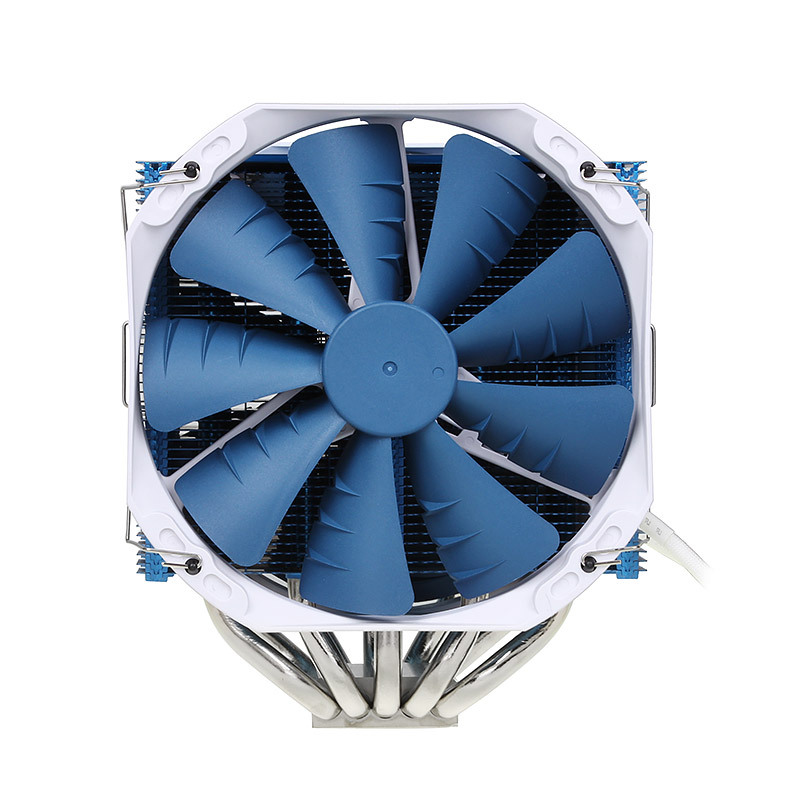

PH-TC14PE (Premium Edition), a twin tower thermal radiator uses the latest in aerospace technology. By incorporating P.A.T.S (Physical Antioxidant Thermal Spraying) and C.P.S.C (Cold Plasma Spraying Coating) Technologies, PH-TC14PE delivers superior heat dissipations and heat transfers. Equipped with five 8mm heat-pipes and dual 140mm PH-F140 Premium fans, thermal conductivities are enhanced and opportunities for extreme overclocking are attainable.
Specifications
- Type: Heatsinks and Fans
- Compatibility:
- – Intel Socket 2011/115X/1366/775
- – AMD: FM1/FM2/AM3+/AM3/AM2+/AM2 (stock back-plate required)
- Color: Blue, White, Red, Orange, Black
- Material:
- – Copper (Base and Heat-pipes), Nickel Plated
- – Aluminum (Fins and Top Cover)
- – Patented P.A.T.S (Physical Anti-Oxidant Thermal Shield)
- – Patented C.P.S.C (Cold Plasma Spraying Coating) Technology
- Fan Model: PH-F140 Premium Fan with PWM Adapter
- Fan Size: 140×140×25mm (Dual Fans included)
- Fan Compatibilities: 140×140×25mm (3pcs) / 120×120×25mm (3pcs) (Third fan clips and accessories included)
- Bearing Type: UFB (Updraft Floating Balance) Bearing
- Blade Geometry: Nine White Colored Blades with MVB (Maelstrom Vortex Booster) Design
- RPM: 1300 ? 10%
- Max Air Flow: 88.6 CFM
- Max Air Pressure: 1.37mm H2O
- Acoustical Noise: 19.6 dB (A)
- RPM with PWM Adapter: 700 – 1200 RPM ? 10%
- Max Air Flow with PWM: 45.1CFM – 78.1 CFM
- Max Air Pressure with PWM: 0.45 – 1.21mm H2O
- Acoustical Noise with PWM: 13.4 – 19 dB (A)
- Input Power: 2.8 W
- Current: 0.24 A
- Rate Voltage: 12 V
- MTBF: > 150,000 hr
Dimensions
- 167×214×190mm (LxWxH)
- Heatsink Dimensions (LxWxH):
- – 134×140×160mm (Without Fan)
- – 159×140×171mm (With Fan)
Package Contents
- 1× PH-TC14PE Heatsink
- 2× PH-F140 Premium Fan
- PH-F140 Fan Accessories
- 6 x Rubber Bar, 12× Fan Clip Adaptor, 6× Fan Wire Clip, 16× Rubber Pad (pre-installed on * * fans)
- 1× PWM External Adaptor (not included with 4-pin fans)
- SoliSku mounting Kits for Intel and AMD
- 1× Y-Fan Splitter
- 1× PH-NDC Thermal Compound
- 2× Phanteks PH-TC14PE User's Manual
